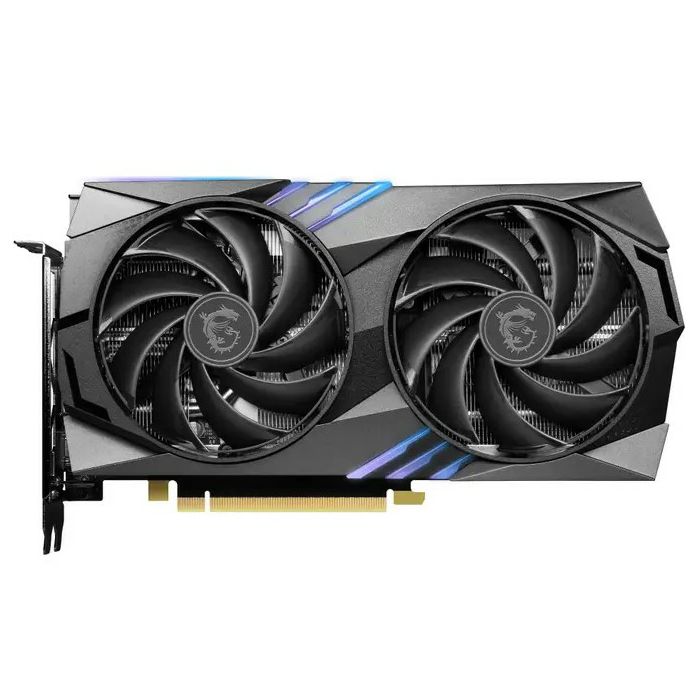

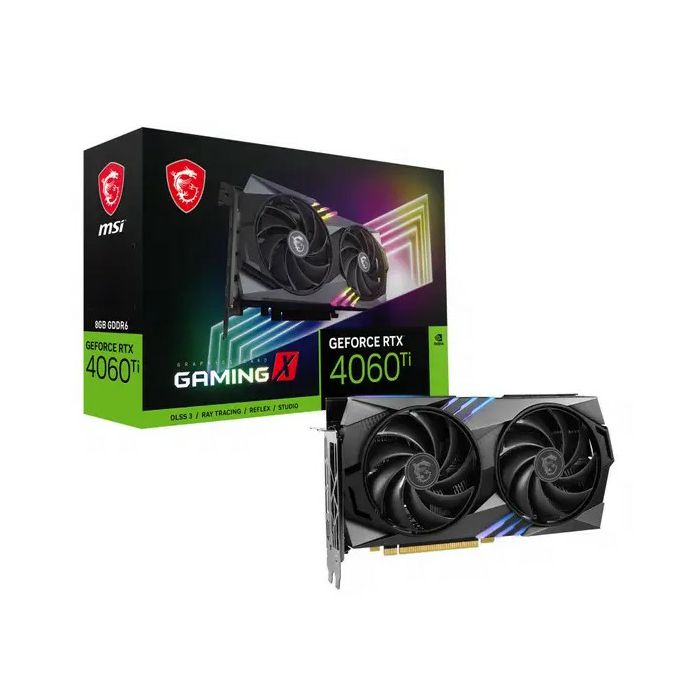

MSI RTX4060Ti Gaming X 8G, 8GB, GDDR6, V515-015R

GPU NVIDIA GeForce RTX 4060 Ti
Memory 8GB GDDR6, 128bit, 18Gbps, 2250MHz, 288GB/s
overclock +120MHz Boost (OC-Profile), +105MHz Boost (Standard-Profile)
clock Boost 2640MHz (Standard-Profile), 2655MHz (OC-Profile)
clock Base 2310MHz (Standard-Profile), 2310MHz (OC-Profile)
Cooling 2x Axial-fan (100mm) with 0dB-zero-fan-mode
TDP/TGP 160W (NVIDIA), max. 160W (MSI)
Power connections 1x 8-Pin PCIe

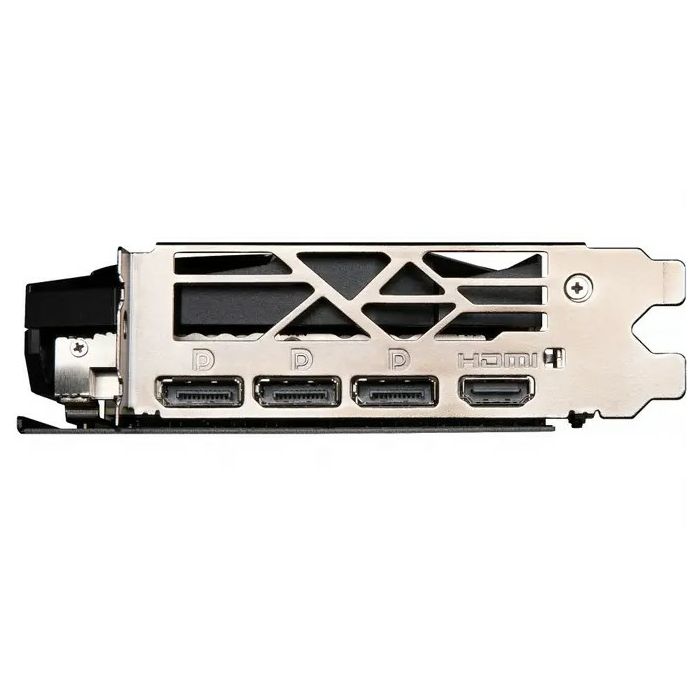

Interfaces 1x HDMI 2.1a, 3x DisplayPort 1.4a
Interface PCIe 4.0 x16 (x8)
Special features Taktprofile (Default Mode/extreme Performance), Backplate, LED lighting (RGB)
total height Dual Slot
Dimensions 247x130x42mm (LxWxH), Weight: 661g
Type PCIe card (full height)
PCI slot bracket full height
Computing power 23.11 TFLOPS (FP16), 23.11 TFLOPS (FP32), 0.36 TFLOPS (FP64)
Chip-dataChip-Architecture Ada Lovelace (from 2022/Q3)
Chip-title AD106-350-A1
Chip-Configuration 34SM (4352 ALUs / 184 TMUs / 64 ROPs), 34 RT Cores, 136 Tensor Cores, 32MB L2 cache
Chip-Manufacturing Process TSMC 5nm "NVIDIA 4N"
Chip size 190mm2, monolithisch
Chip-functions Raytracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen), HDCP 2.3
API-support DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
Transcoding-Engine 1x NVENC (8th Gen, max. Sessions: 5), 1x NVDEC (5th Gen), Info
encoding AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
decoding AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
Multi-GPU-Interface -
ErstRelease date (series) 24.05.2023, UVP: 399 USD (NVIDIA)
Graphics NVIDIA GeForce RTX 4060 Ti - 8GB GDDR6 - desktop
