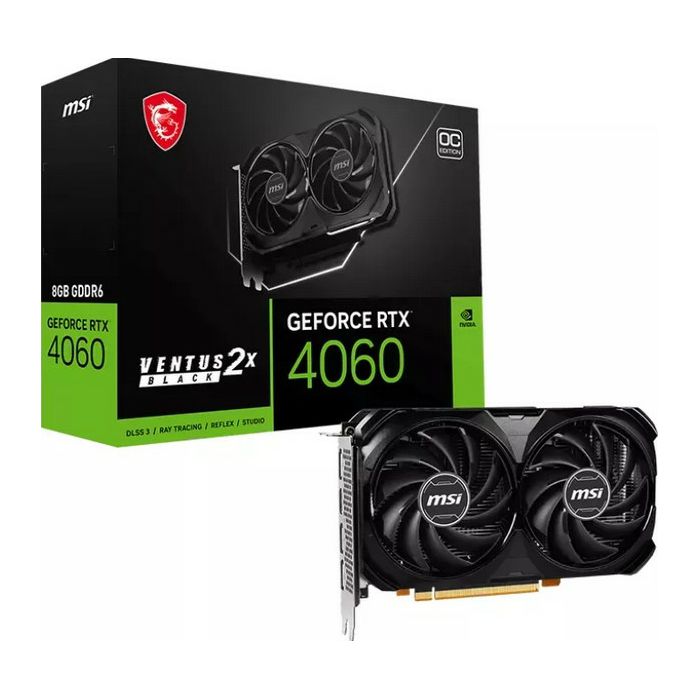

MSI RTX4060 Ventus 2X Black 8G OC, 8GB, GDDR6, V516-004R

GPU NVIDIA GeForce RTX 4060
Memory 8GB GDDR6, 128bit, 17Gbps, 2125MHz, 272GB/s
overclock +30MHz Boost (OC-Profile), +45MHz Boost (Standard-Profile)
clock Boost 2505MHz (Standard-Profile), 2490MHz (OC-Profile)
clock Base 1830MHz (Standard-Profile), 1830MHz (OC-Profile)

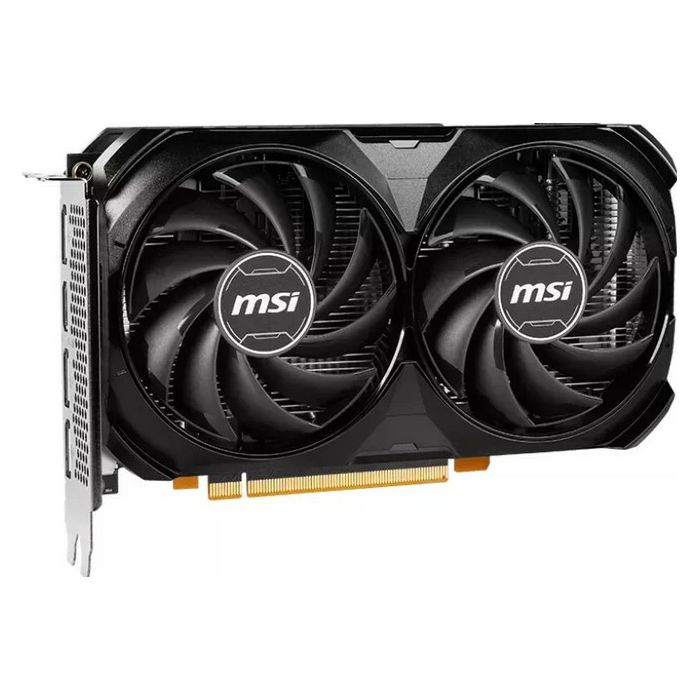

Cooling 2x Axial-fan (90mm) with 0dB-zero-fan-mode
TDP/TGP 115W (NVIDIA), max. 115W (MSI)
Power connections 1x 8-Pin PCIe

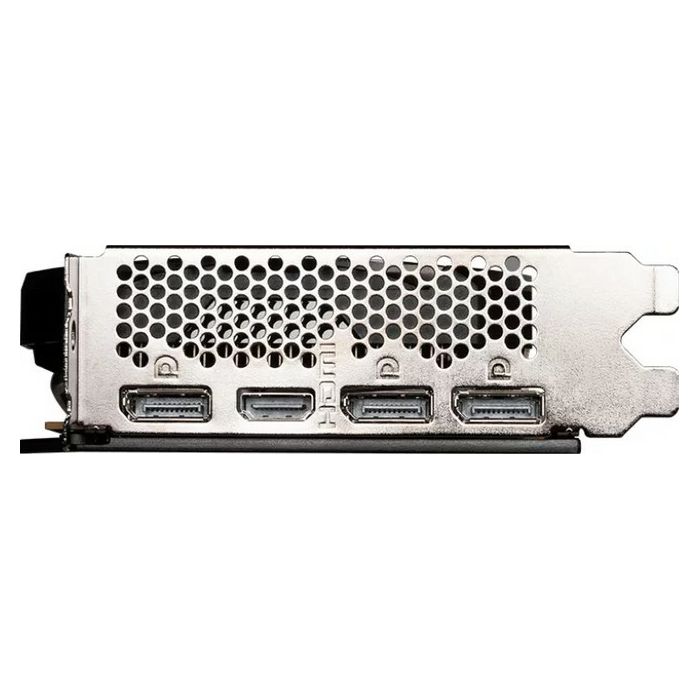

Interfaces 1x HDMI 2.1a, 3x DisplayPort 1.4a
Interface PCIe 4.0 x16 (x8)
Special features Taktprofile (Default Mode/extreme Performance), Backplate
total height Dual Slot
Dimensions 199x120x41mm (LxWxH), Weight: 546g
Type PCIe card (full height)
PCI slot bracket full height
Computing power 15.39 TFLOPS (FP16), 15.39 TFLOPS (FP32), 0.24 TFLOPS (FP64)
Warranty three years (from date of manufacture, handling by merchant)
Chip-dataChip-Architecture Ada Lovelace (from 2022/Q3)
Chip-title AD107-400-A1
Chip-Configuration 24SM (3072 ALUs / 96 TMUs / 32 ROPs), 24 RT Cores, 96 Tensor Cores, 24MB L2 cache
Chip-Manufacturing Process TSMC 5nm "NVIDIA 4N"
Chip size 146mm2, monolithisch
Chip-functions Raytracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen), HDCP 2.3
API-support DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
Transcoding-Engine 1x NVENC (8th Gen, max. Sessions: 5), 1x NVDEC (5th Gen), Info
encoding AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
decoding AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1 Multi-GPU-Interface -
