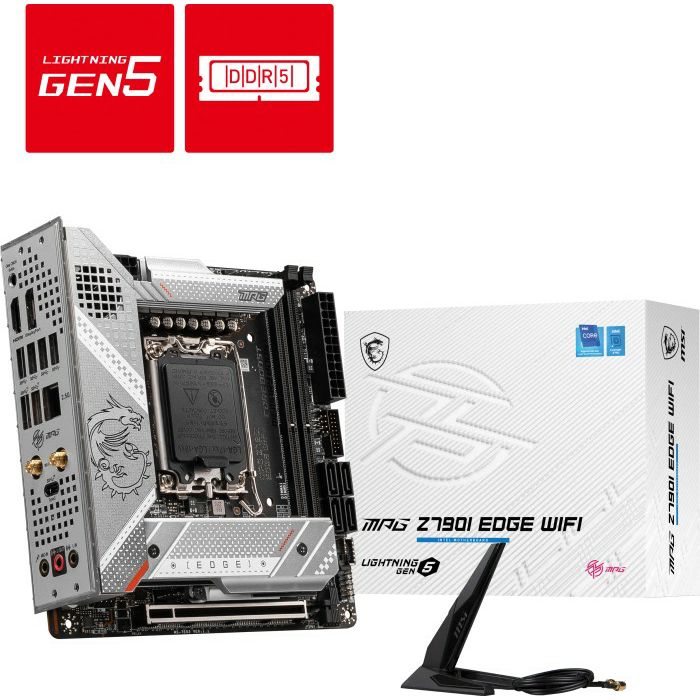

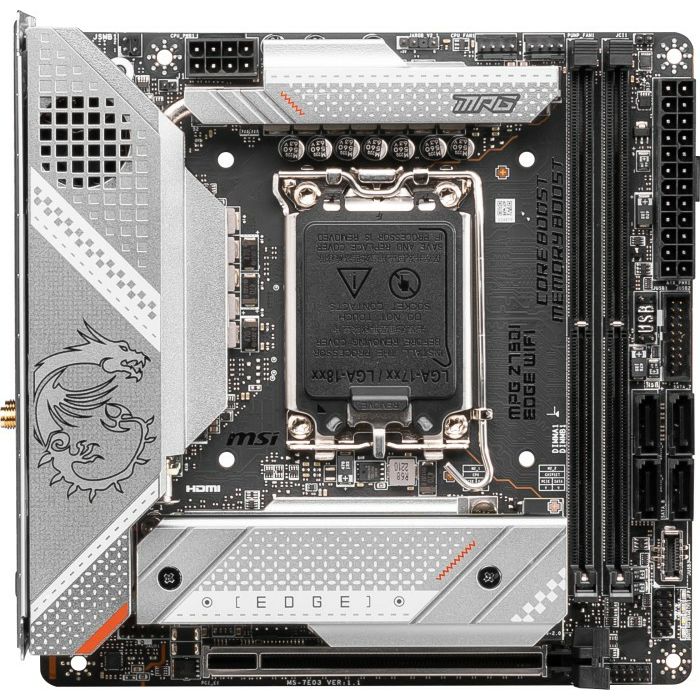

MSI MPG Z790I EDGE WiFi, DDR5, s1700, 7E03-001R

Form factor Mini-ITX
Plinth Intel 1700
Chipset Intel Z790
CPU Compatibility Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 2x DDR5 DIMM, dual PC5-64000U/DDR5-8000 (OC), max. 96GB (UDIMM)
Expansion Slots 1x PCIe 5.0 x16, 2x M.2/M-Key (PCIe 4.0 x4, 2280), 1x M.2/M-Key (PCIe 3.0 x4/SATA, 2280), 1x M.2/E-Key (PCIe, 2230, assigned to WiFi+BT module)
External connections 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 (20Gb/s), 2x USB-A 3.1 (10Gb/s), 4x USB-A 3.0 (5Gb/s), 1x 2.5GBase-T (Intel I226-V), 3x jack, 2x antenna connector RP-SMA
Internal connections 1x USB-C 3.2 Key-A header (20Gb/s), 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 1x USB 2.0 header (480Mb/s, 2x USB 2.0), 4x SATA 6Gb/s (Z790), 1x TPM header, 1x chassis intrusion header, 1x MSI Tuning Controller header 5-pin
Header Cooling 1x CPU fan 4-pin, 1x pump 4-pin, 1x fan 4-pin
Header Lighting 1x 3-Pin ARGB (+5V/DATA/GND, max. 3A, MSI V2)
Buttons/Switches Clear CMOS button (external)
Audio 7.1 (Realtek ALC4080)
Graphic iGPU
Wireless Wi-Fi 6E (Wi-Fi 802.11a/b/g/n/ac/ax, 2x2, Intel), Bluetooth 5.3
RAID Level 0/1/5/10 (Z790)
Power connections 1x 24-pin ATX, 1x 8-pin EPS12V
VRM 11 virtual phases (10+1)
MOSFETs CPU (VCORE) 10x 105A
