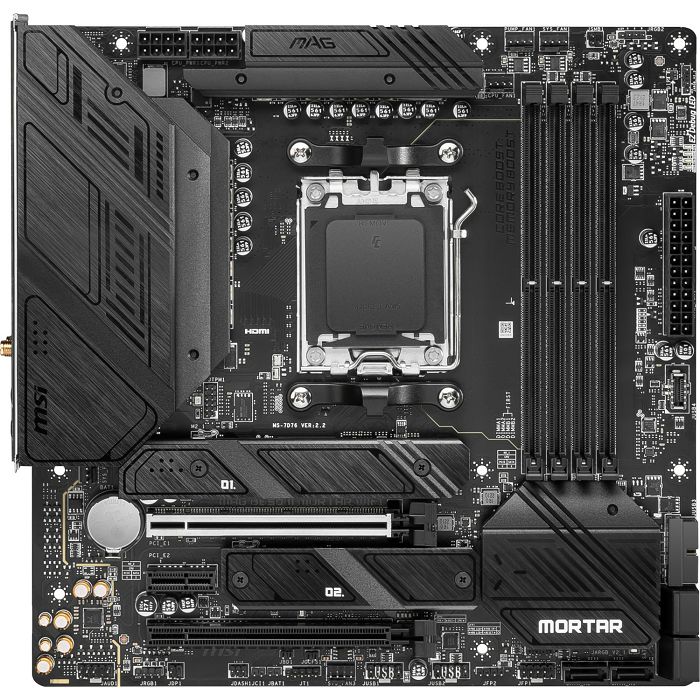

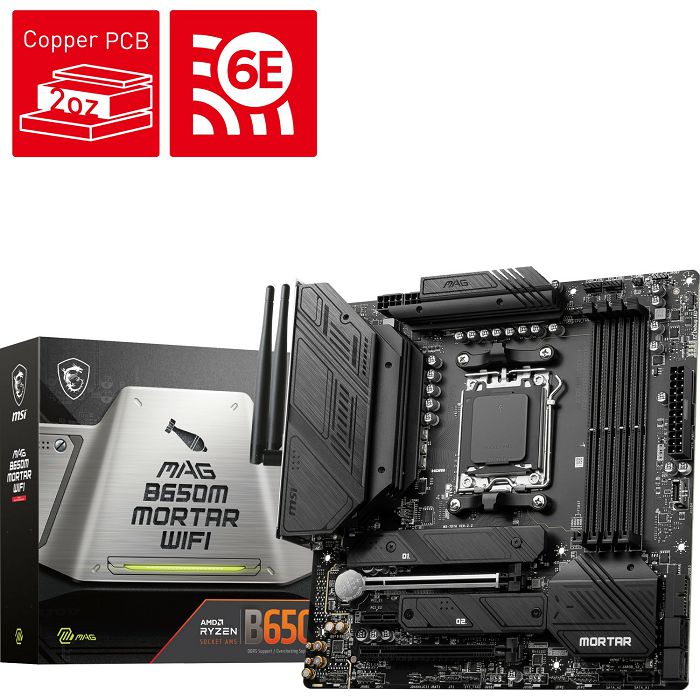

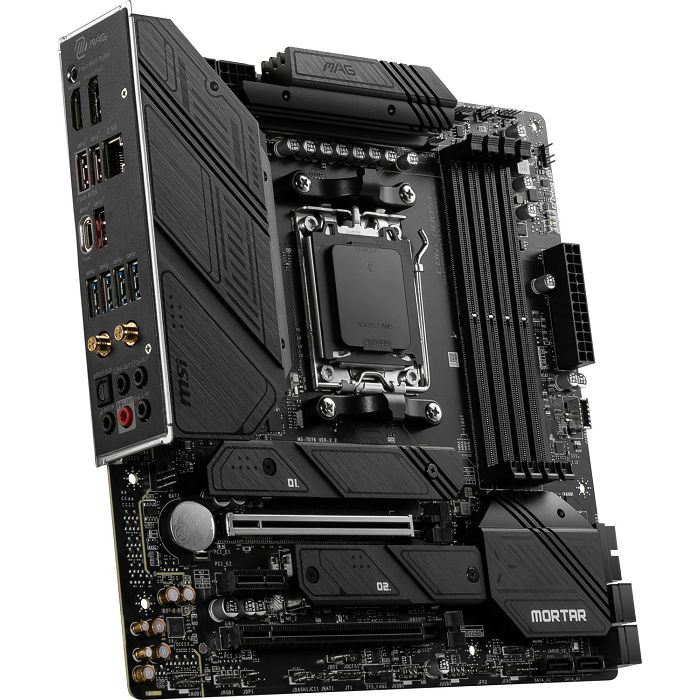

MSI MAG B650M Mortar WIFI, AM5, DDR5, 7D76-001R

Form factor
µATX
Plinth
AMD AM5
Chipset
AMD B650
CPU Compatibility
Ryzen 7000
RAM
4x DDR5 DIMM, dual PC5-51200U/DDR5-6400 (OC), max 128GB (UDIMM)
Expansion slots
2x PCIe 4.0 x16 (1x x16, 1x x4), 1x PCIe 3.0 x1, 2x M.2/M-Key (PCIe 4.0 x4, 2280/2260), 1x M.2/E-Key (PCIe, 2230, occupied with WiFi+BT module)
External connections
1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 (20Gb/s), 3x USB-A 3.1 (10Gb/s), 4x USB-A 3.0 (5Gb/s), 1x 2.5GBase-T (Realtek RTL8125BG), 5x jack, 1x Toslink, 2x antenna connector (RP-SMA)
Internal connections
1x USB-C 3.1 Key-A header (10Gb/s), 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B650), 2x SATA 6Gb/s (ASMedia ASM1061), 1x TPM header, 1x chassis intrusion header, 1x MSI tuning controller header 5-pin
Header Cooling
1x CPU fan 4-pin, 3x fan 4-pin, 1x pump 4-pin
Header Lighting
2x 4-pin RGB (+12V/G/R/B, max. 3A), 2x 3-pin ARGB (+5V/DATA/GND, max. 3A, MSI V2)
Buttons/Switches
USB BIOS Flashback (external)
Audio
7.1 (Realtek ALC4080)
Graphic
iGPU
Wireless
Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2), Bluetooth 5.2
RAID Levels
0/1/10 (B650)
Electrical connections
1x 24-pin ATX, 2x 8-pin EPS12V
VRM
14 virtual phases (12+2), 8 real phases (6+2), PWM controller: MP2857 (max. 12 phases)
MOSFETs CPU
12x 80A MP87670
MOSFETs SoC
1x 80A MP87670
Lighting
N/A
Particularities
Audio+solid capacitors, Diagnostic LED (LED indicators), Integrated I/O panel, 2x M.2 passive cooler, Onboard TPM 2.0 support (AMD fTPM)
