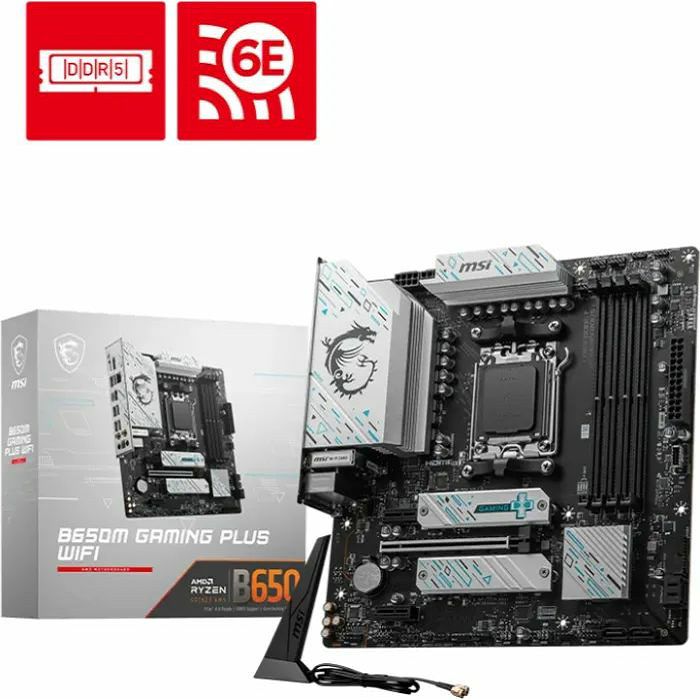

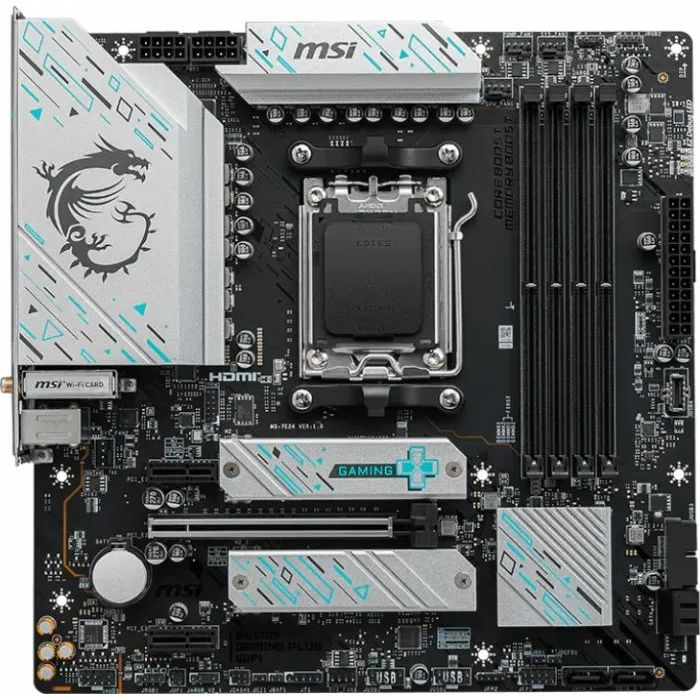

MSI B650M Gaming Plus WIFI, AMD B650, AM5, DDR5, 7E24-001R

Form factor µATX
Plinth AMD AM5
Chipset AMD B650
CPU Compatibility Ryzen 8000G, Ryzen 7000, no TDP limitation (list of manufacturers))
RAM 4x DDR5 DIMM, dual PC5-57600U/DDR5-7200 (OC), max. 192GB (UDIMM)
Expansion Slots 1x PCIe 4.0 x16, 2x PCIe 3.0 x1, 2x M.2/M-Key (PCIe 4.0 x4, 2280/2260), 1x M.2/E-Key (PCIe, 2230, assigned with WiFi+BT module)
External connections 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/s), 3x USB-A 3.1 (10Gb/s), 4x USB-A 3.0 (5Gb/s), 1x 2.5GBase-T (Realtek RTL8125BG), 3x jack, 2x antenna connector RP-SMA
Internal connections 1x USB-C 3.1 Key-A Header (10Gb/s), 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 Header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B650), 2x SATA 6Gb/s (ASMedia ASM1061), 1x TPM Header, 1x Chassis Intrusion Header, 1x MSI Tuning Controller Header 5-Pin
Header Cooling 1x CPU fan 4-pin, 3x fan 4-pin, 1x pump 4-pin
Header Lighting 2x 4-Pin RGB (+12V/G/R/B, max. 3A), 2x 3-Pin ARGB (+5V/DATA/GND, max. 3A, MSI V2)
Buttons/Switches USB BIOS Flashback (external)
Audio 7.1 (Realtek ALC897)
Graphic iGPU
Wireless Wi-Fi 6E (Wi-Fi 802.11a/b/g/n/ac/ax, 2x2), Bluetooth 5.3
RAID Level 0/1/10 (B650)
Power connections 1x 24-pin ATX, 2x 8-pin EPS12V
VRM 14 virtual phases (10+2)
Lighting N/A
BIOS 1x 32MB (256Mb)
Particularities Audio+solid capacitors, Diagnostic LED (LED indicators), integrated I/O panel, 2x M.2 passive coolers, onboard TPM 2.0 support (AMD fTPM)
