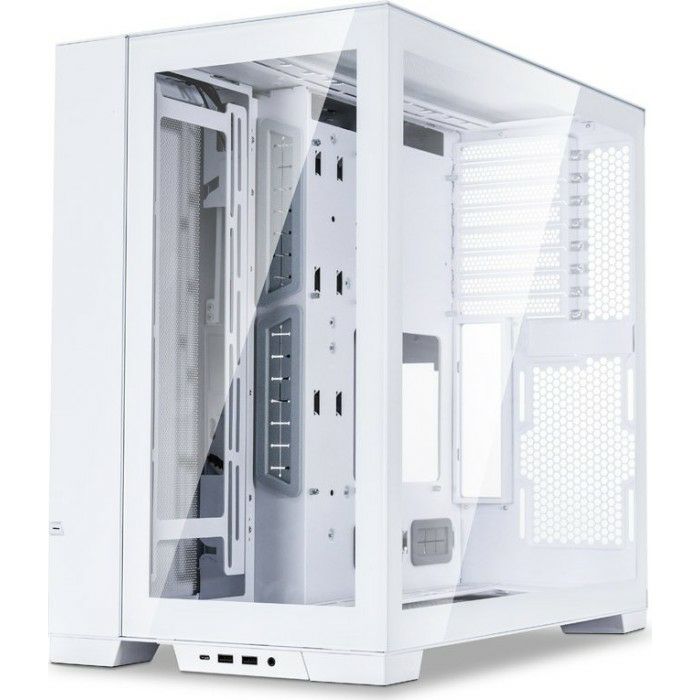

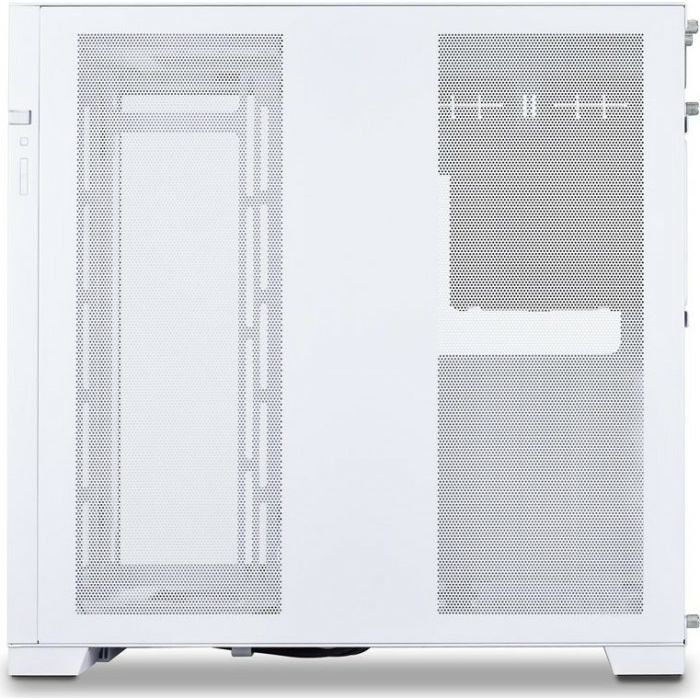

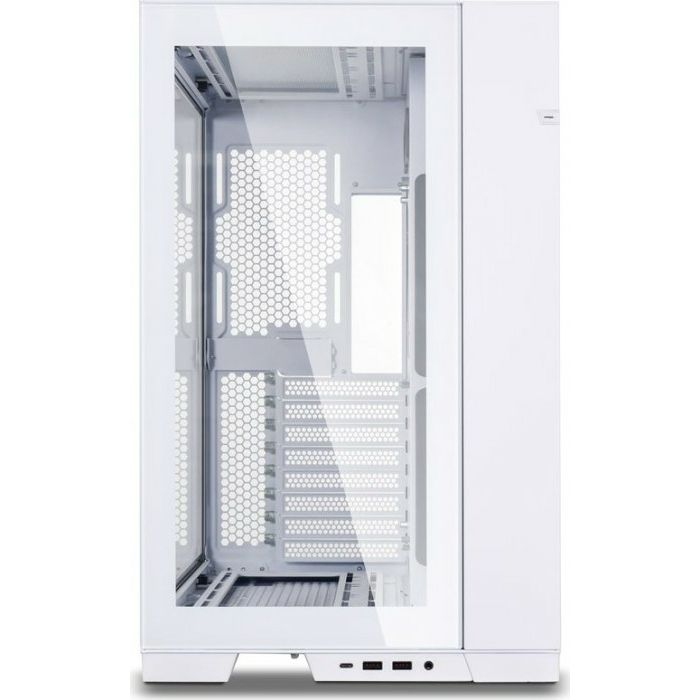

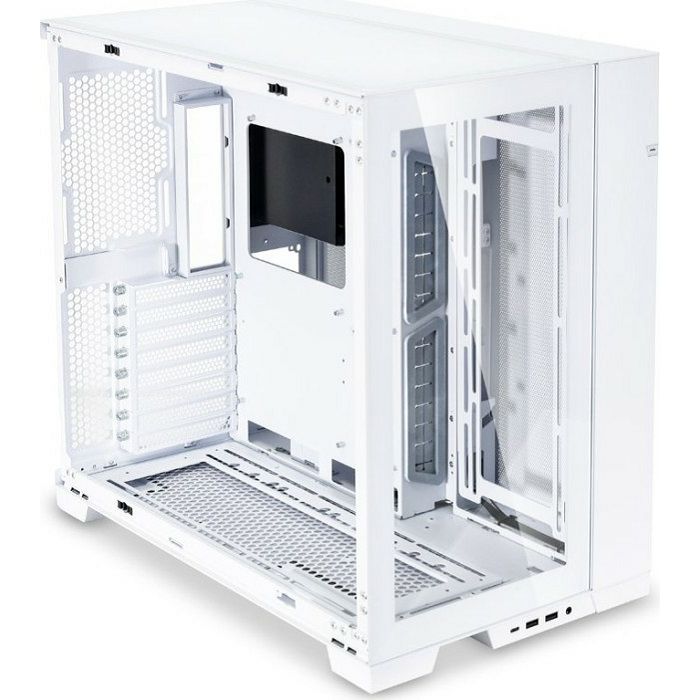

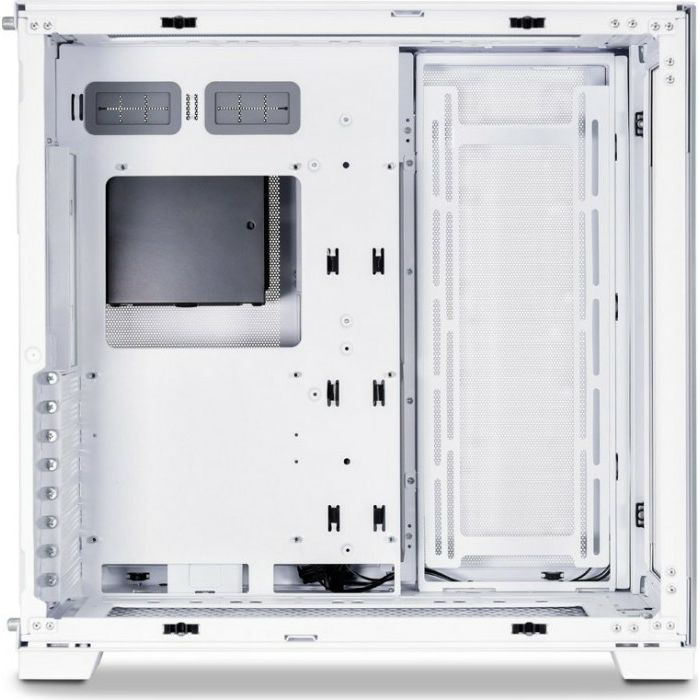

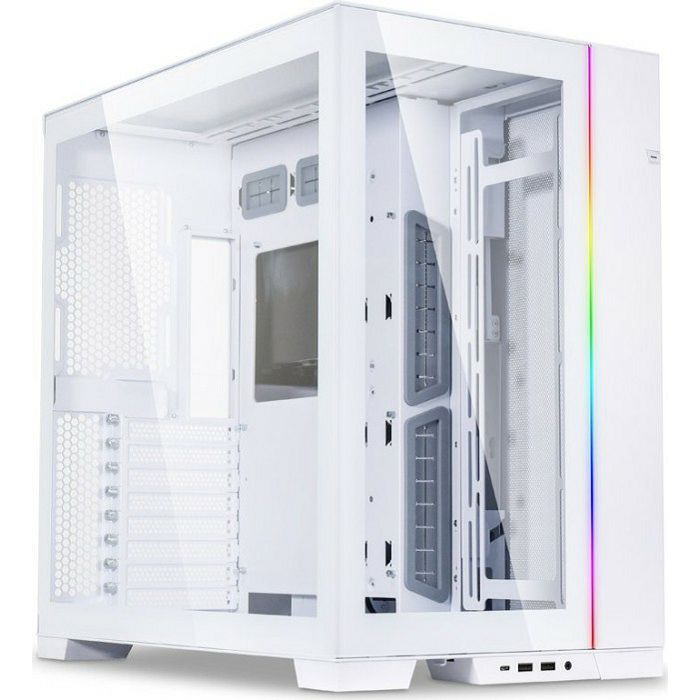

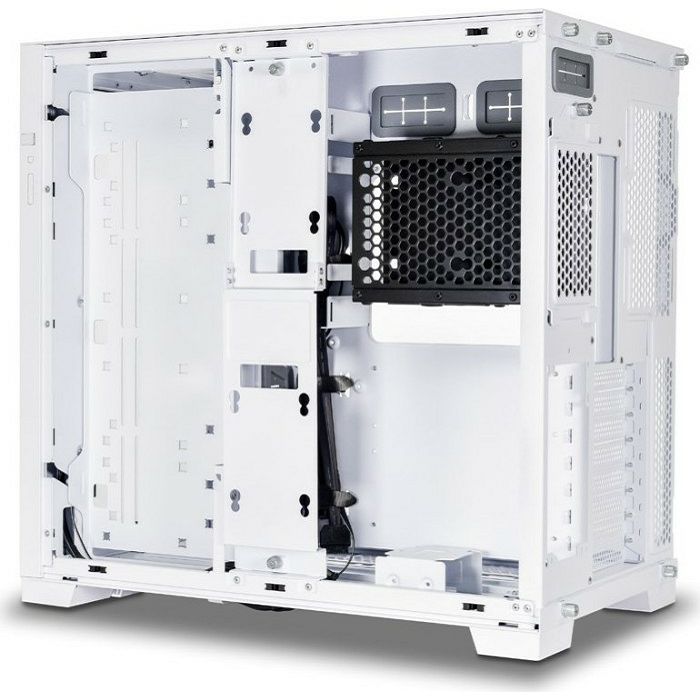

Lian Li Midi Tower O11 Dynamic Evo, glass window, White, O11DEW, 4718466011176

external
not available
Internal
2x 2.5"/3.5" (transverse, HDD cage), 1x 2.5" (transverse, HDD cage), 2x 2.5" (transverse), 4x 2.5" (transverse, Side Drive Tray), 4x 2.5" (optional, floor) or Variante2: 2x 2.5"/3.5" (transverse, HDD cage), 1x 2.5" (transverse, HDD cage), 2x 2.5" (transverse), 2x 3.5" (transverse, Side Drive Tray), 2x 3.5" (floor)
front I/O
1x USB-C 3.1 (10Gb/?s, 20-Pin Key-A Header), 2x USB-A 3.0 (5Gb/?s), 1x headphone/?microphone
PCI-slots
8
Fan(s) (front)
not available
Fan(s) (rear)
1x 120mm (optional)
Fans (left)
not available
Fans right
not available
Fan(s) (top)
3x 120mm (optional) or 2x 140mm (optional)
Fan(s) (bottom)
3x 120mm (optional) or 2x 140mm (optional)
Fans (other)
3x 120mm (optional) or 2x 140mm (optional)
radiator sizes
280/?360mm front, 280/?360mm top, 360mm bottom
Motherboard
to ATX (280mm wide)
Supported motherboards
Mini-ITX (6.7"x6.7")/µATX (9.6"x9.6")/ATX (12"x9.6")/E-ATX (12"x11")
Power supply
ATX (max. 220mm deep)
Power supply position
bottom (vertical, two Power Supplies possible)
CPU Coolers
max. 167mm height
Graphics Cards
max. 422mm
Colour
black, inside black
Lighting
RGB-Header 3-Pin ARGB (+5V/?DATA/?GND), integrated LED control, integrated RGB-LED lighting
Dimensions (WxHxD)
285x459x465mm
Capacity
60.83l
Weight
12.70kg
Type
Midi-Tower
front
closed, glass
above
partially closed, mainly fan grill, Mesh
below
partially closed, mainly fan grill, dust filter outdoor
left
closed, glass
right
partially closed, mainly fan grill, Mesh
aft
partially closed, fan grill right top, PCI slots bottom (8x horizontal), 1x tube-/?Rohrdurchführung left top
front I/O position
Housing side: modular (front/?left/?right), Height: bottom, position: modular
Special features
Cable Management, side panel window made out of glass, dust filter, motherboard can be turned (backpanel backward), graphics card vertical mountable (optional), graphics card hanging/?standing mountable (optional), I/?O-panel-position optional modular, Mehrkammerdesign, motherboard-alignment modular: to right or motherboard-alignment to left
Note
Mainboard and case manufacturers refer to different dimensions as E-ATX. E-ATX/SSI EEB mainboard dimensions of 305x330mm respectively 12"x13" are not supported.
