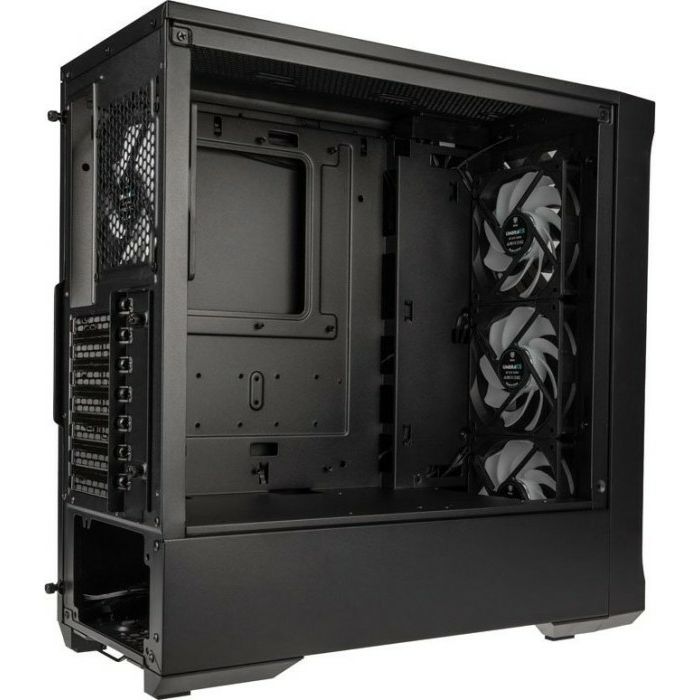

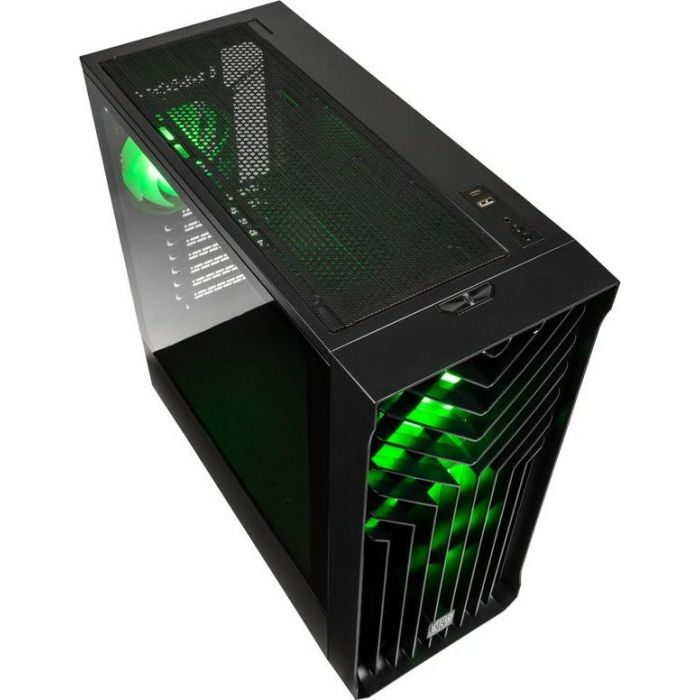

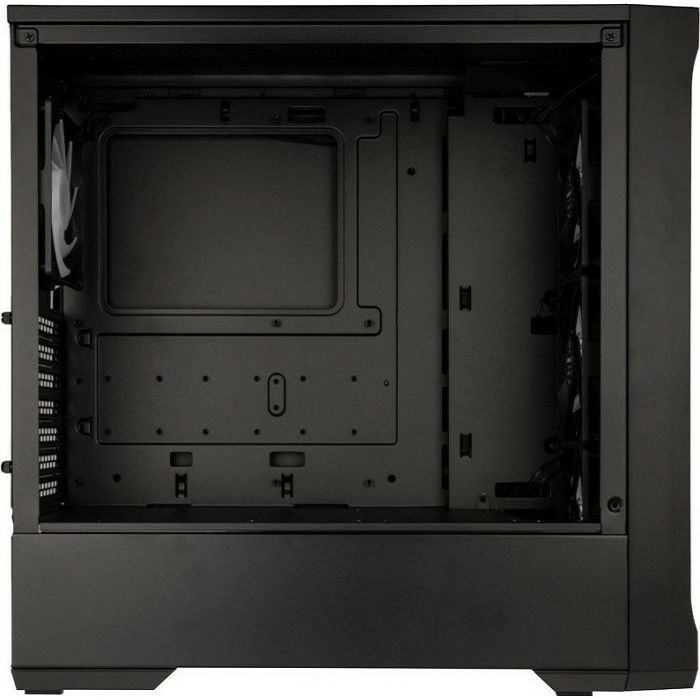

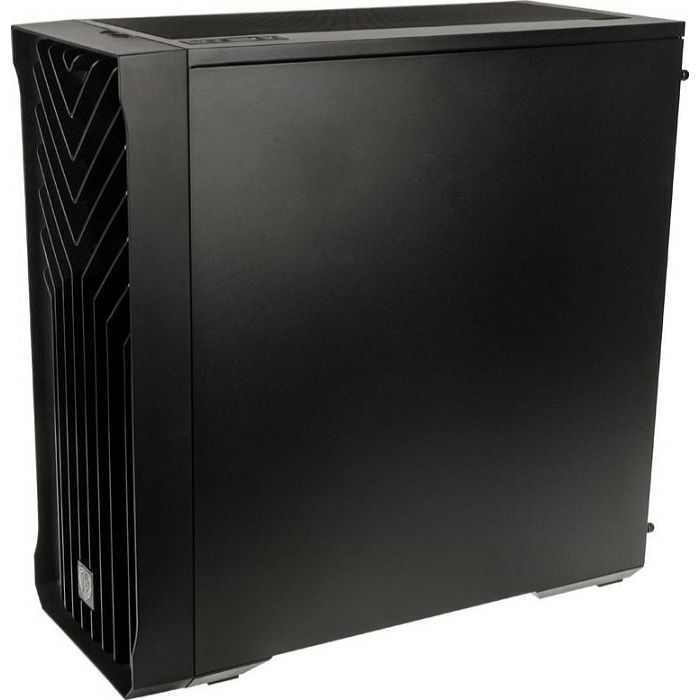

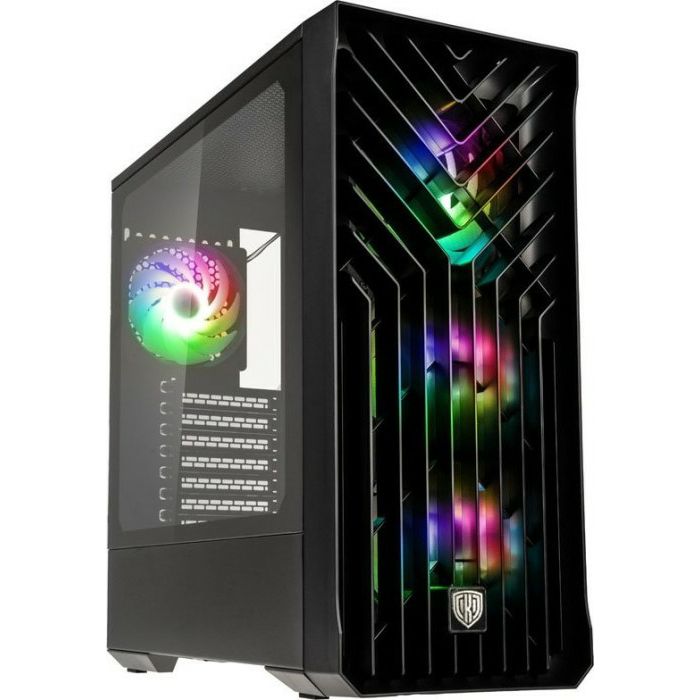

Kolink Midi Tower Unity Cascade, glass window, ARGB, Black, 5999094005945

external
not available
Internal
2x 2.5", 2x 3.5"
Connectors

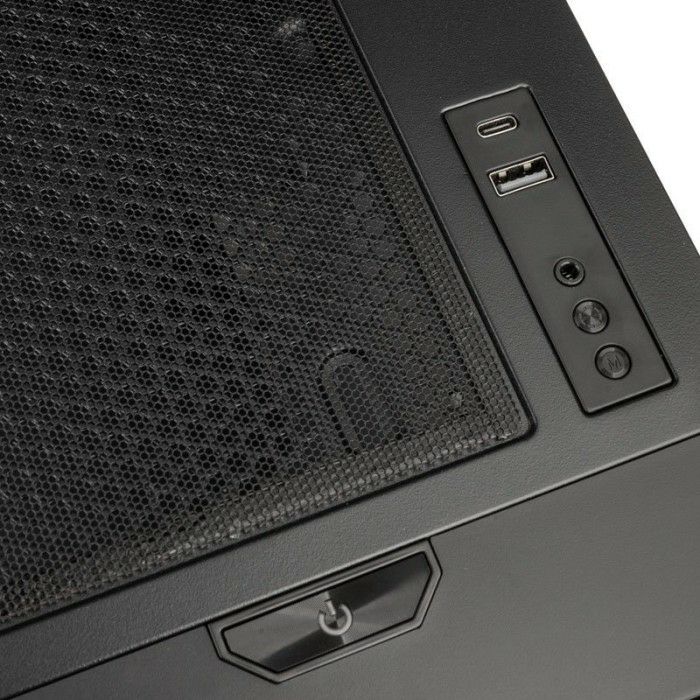

1x USB-C 3.0 (5Gb/?s), 1x USB-A 3.0 (5Gb/?s), 1x 3.5mm jack (Line-In/?Out)
PCI-slots
7
Fan(s) (front)
3x 120mm (ARGB illuminated) or 2x 140mm (optional)
Fan(s) (rear)
1x 120mm (ARGB illuminated)
Fans (left)
not available
Fans right
not available
Fan(s) (top)
3x 120mm (optional) or 2x 140mm (optional)
Fan(s) (bottom)
not available
Fans (other)
not available
radiator sizes
120/?140/?240/?280/?360mm front, 120/?240/?360mm top, 120mm rear
Motherboard
to ATX (280mm wide)
Supported motherboards
Mini-ITX (6.7"x6.7")/µATX (9.6"x9.6")/ATX (12"x9.6")/E-ATX (12"x11.02")
Power supply
ATX (max. 280mm deep)
Power supply position
bottom
CPU Coolers
max. 162mm height
Graphics Cards
max. 400mm
Colour
black, inside black
Lighting
RGB-Header 3-Pin ARGB (+5V/?DATA/?GND), integrated LED control, illuminated fan
Dimensions (WxHxD)
200x460x455mm
Capacity
41.86l
Weight
6.90kg
Type
Midi-Tower
front
Mesh
above
partially closed, mainly fan grill, dust filter outdoor
below
partially closed, partially fan grill, dust filter outdoor
left
closed, mainly glass
right
closed
aft
partially closed, fan grill right top, PCI slots rear (7x horizontal)
front I/O position
Housing side: top, Height: front, position: right
Special features
Cable Management, dust filter, side panel window made out of glass
note to E-ATX
Mainboard and case manufacturers refer to different dimensions as E-ATX. E-ATX/SSI EEB mainboard dimensions of 305x330mm respectively 12"x13" are not supported.
