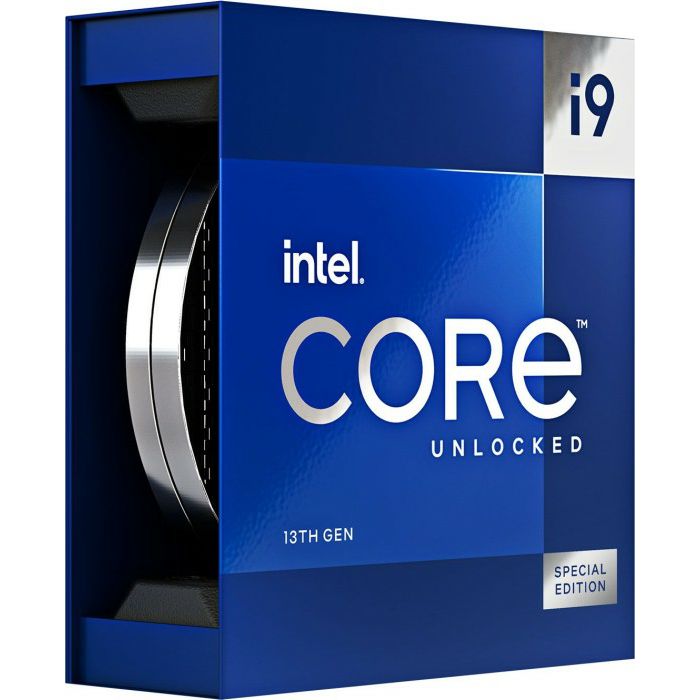

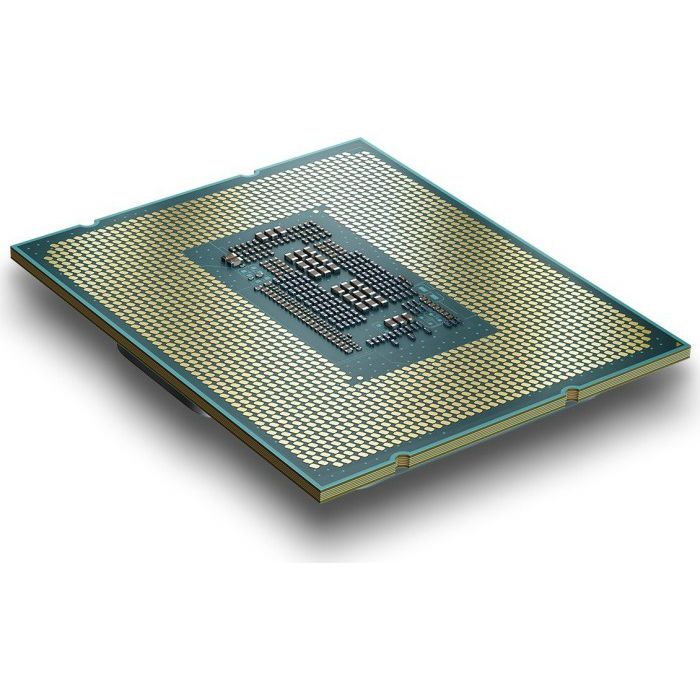

Intel Core i9-13900KS 3.2GHz (6.00 GHz Turbo) LGA1700, boxed without cooler, BX8071513900KS

Cores
24 (8+16)
Threads
32 (16+16)
Turbo clock
6.00GHz (Thermal Velocity Boost), 5.80GHz (Turbo Boost Max 3.0), 5.40GHz (P-Core), 4.30GHz (E-Core)
Base clock
3.20GHz (P-Core), 2.40GHz (E-Core)
TDP
150W (Processor Base Power), 253W (Maximum Turbo Power)
Graphic
yes (Intel UHD Graphics 770)
Plinth
Intel 1700 (LGA1700), "Socket V"
Chipset Compatibility
B660, H610, H670, W680, Z690, H770, B760, Z790
Code name
Raptor Lake-S
Architecture
Raptor Cove (P-Core), Gracemont (E-Core)
Manufacturing
Intel 7
L2 cache
32MB (8x 2MB + 16x 1MB)
L3 cache
36MB
Storage Controllers
Dual Channel DDR5-5600 (PC5-44800), DDR4-3200 (PC4-25600), 89.6GB/s, 128GB max
ECC support
yes
SMT
yes (Intel Hyper-Threading)
Remote maintenance
no
Free multiplier
yes
CPU Features
GNA 3.0, Thread Director, DL Boost, Speed Shift, TVB, Instruction Set 64bit (Intel 64), SSE4.1, SSE4.2, AVX, AVX2, Idle States, EIST, Thermal Monitoring, VMD, ISM, CET, AES-NI, Secure Key, OS Guard, TXT, XD Bit, Boot Guard, MBEC, SIPP, VT-rp, VT-x, VT-d, VT-x EPT
System suitability
1 socket (1S)
PCIe lanes
16x PCIe 5.0, 4x PCIe 4.0
Chipset Interface
DMI 4.0, 16GT/s (PCIe 4.0 x8)
iGPU Model
Intel UHD Graphics 770
iGPU Clock
0.30-1.65GHz
iGPU Appliances
32EU/256 shaders
iGPU architecture
Gen 12.2, codenamed "Raptor Lake GT1"
iGPU interface
DP 1.4a (7680x4320@60Hz), eDP 1.4b (5120x3200@120Hz), HDMI 2.1 (4096x2160@60Hz)
iGPU Features
4x Display Support, 2x Multi-Format Codec Engine, Intel Quick Sync Video, Intel Clear Video HD, H.265 encode/decode, VP9 encode/decode, AV1 decode, HDCP 2.3, DirectX 12, OpenGL 4.5, OpenCL 3.0, Vulkan 1.0
iGPU Computing Power
0.8704 TFLOPS (FP32)
Scope of delivery
without CPU cooler
Introduction
2023/Q1 (12.1.2023)
Segment
Desktop (Mainstream)
Stepping
B0, Spec Code: SRMBX
Temperature max.
100°C (Tjunction)
Heatspreader contact means
Metal/soldered
