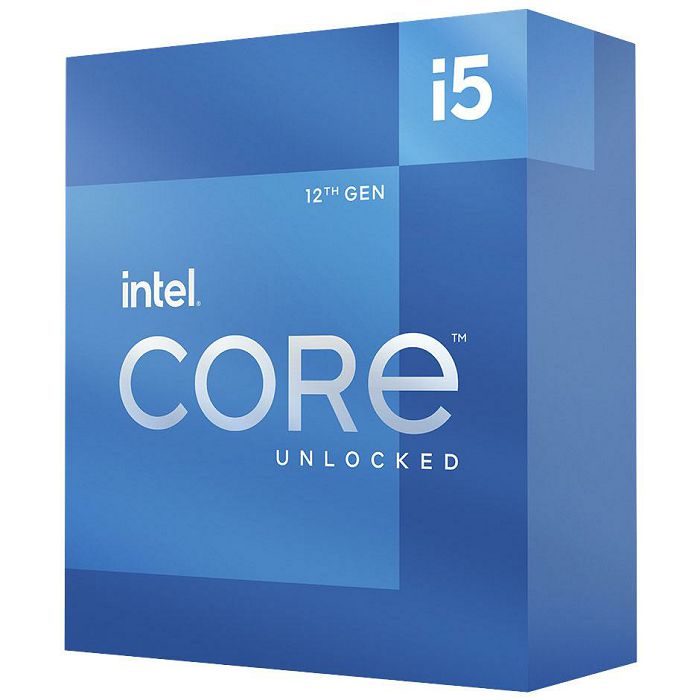

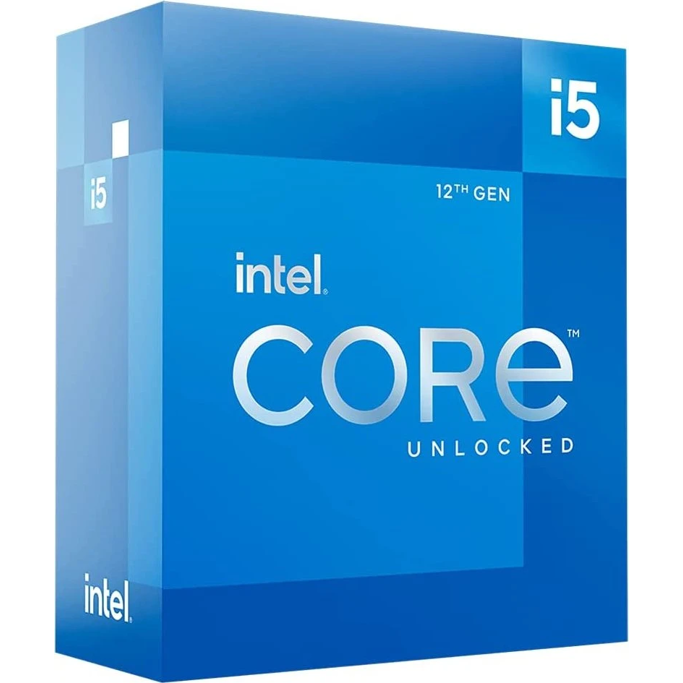

Intel Core i5-12600K 3.7GHz LGA1700, boxed without cooler, BX8071512600K

Socket 1700 (LGA)
Codename alder Lake-S
Graphics Intel UHD Graphics 770 (iGPU), 32EU/256SP, 0.30-1.45GHz
TDP 125-150W
Cores 10 (6+4)
Threads 16 (12+4)
Base Clock 3.70GHz (P-Core), 2.80GHz (E-Core)
Turbo Clock 4.90GHz (P-Core), 3.70GHz (E-Core)
SMT yes (Intel Hyper-Threading)
Memory controller Dual Channel PC5-38400U (DDR5-4800), supports also PC4-25600U (DDR4-3200)
ECC support no
Unlocked yes
Remote management no
CPU-Features GNA 3.0, Thread Director, DL Boost, Optane Memory support, Speed shift, Turbo Boost 2.0, Hyper-Threading, VT-x, VT-d, VT-x EPT, Intel 64, SSE4.1, SSE4.2, AVX, AVX2, Idle States, EIST, Thermal Monitoring, VMD, AES-NI, Secure Key, OS Guard, XD bit, Boot Guard, MBE, CET
chipset suitability Z690
Scope of Delivery without CPU cooler
Segment desktop (Mainstream)
Architecture golden Cove + Gracemont (hybrid-Design)
Manufacturing Process Intel 7 (10nm Enhanced SuperFin, Intel)
Stepping C0
Launch 2021/Q4 (2021-11-04)
L2 cache 9.5MB (6x 1.25MB + 4x 512kB)
L3 cache 20MB
chipset Interface DMI 4.0, 16GT/s (PCIe 4.0 x8)
PCIe Lanes 16x PCIe 5.0, 4x PCIe 4.0
Memory max. 128GB
Memory bandwidth 76.8GB/s
Scalability 1 socket
Thermal Interface material metal/soldered
Max Temperature 100°C
iGPU-Units 32EU
iGPU-Shader 256
iGPU-Clock 0.30-1.45GHz
iGPU-Architecture Gen12 Xe
iGPU-Codename alder Lake Xe-LP
iGPU Interface HDMI 2.1 (4096x2160@60Hz), DisplayPort 1.4a (7680x4320@60Hz), eDP 1.4b (5120x3200@120Hz)
iGPU processing Power 0.74 TFLOPS (FP32)
iGPU-Features DirectX 12.1, OpenGL 4.5, OpenCL 2.1, Vulkan 1.0, Quick Sync Video, clear Video HD, 4x display support, H.265 encode/decode, VP9 encode/decode, AV1 decode, HDCP 2.3
