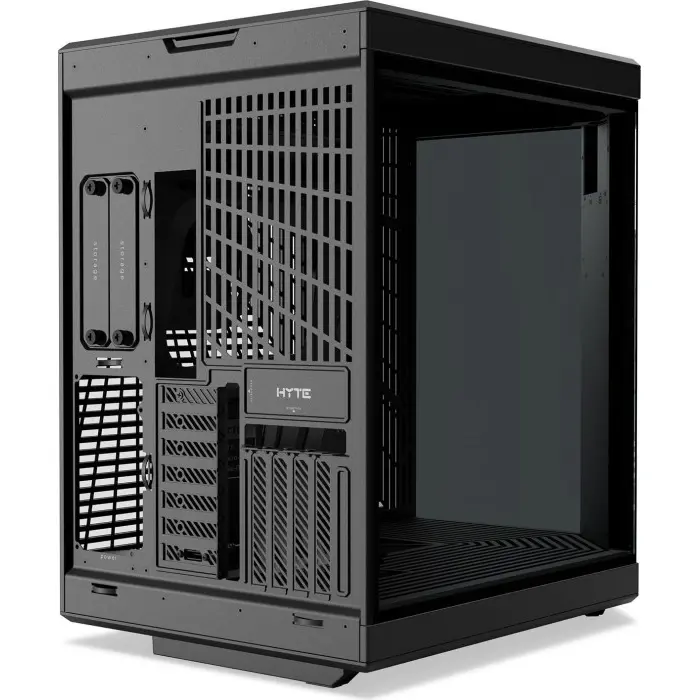

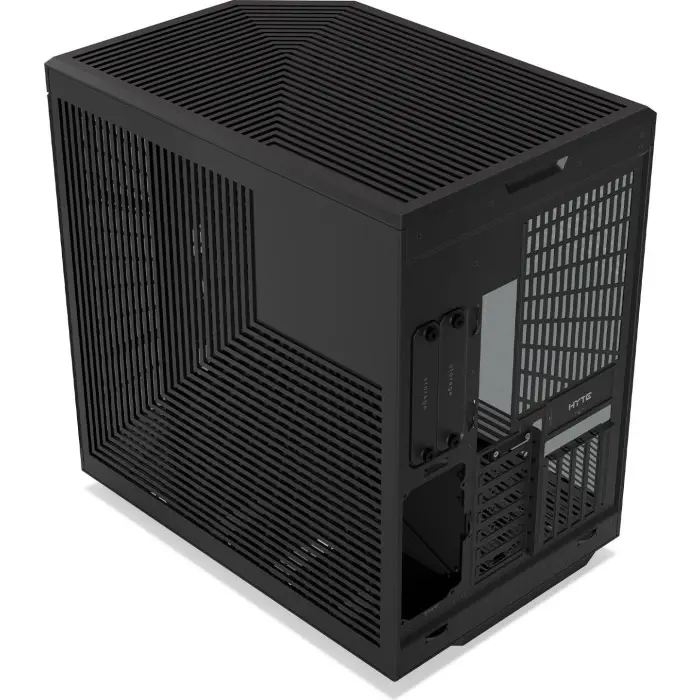

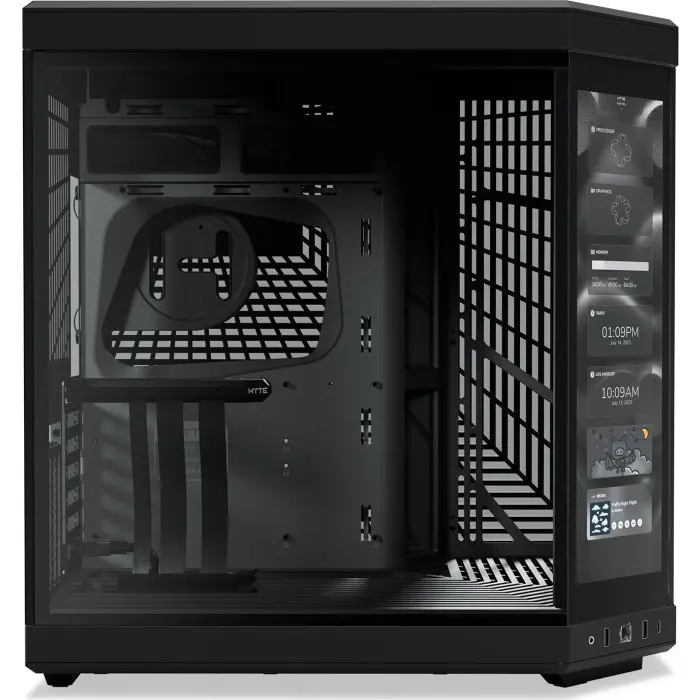

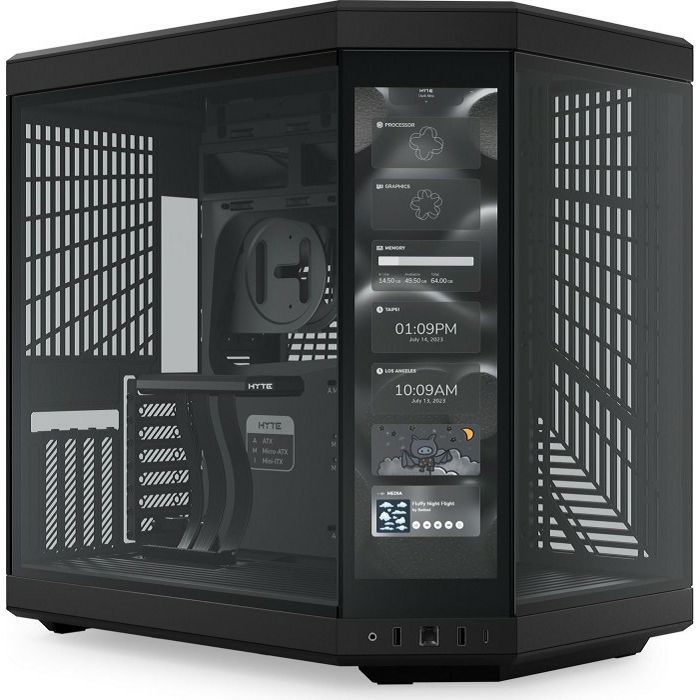

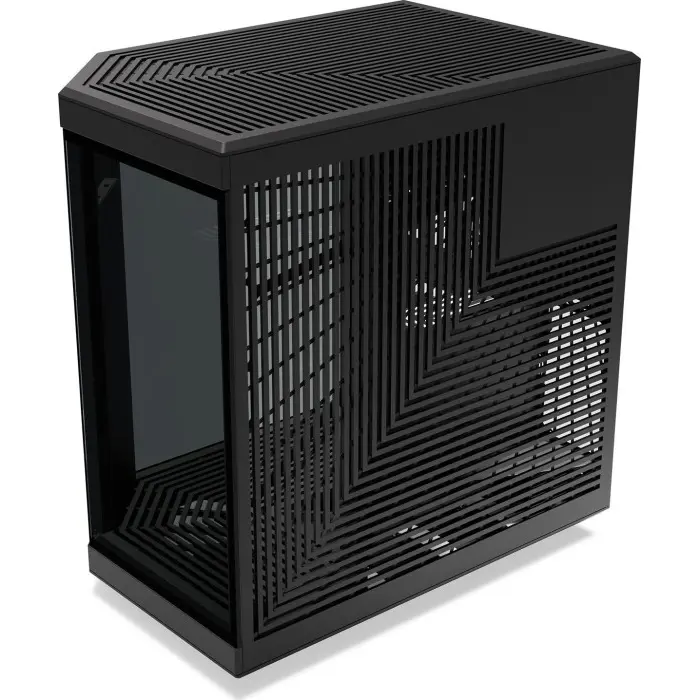

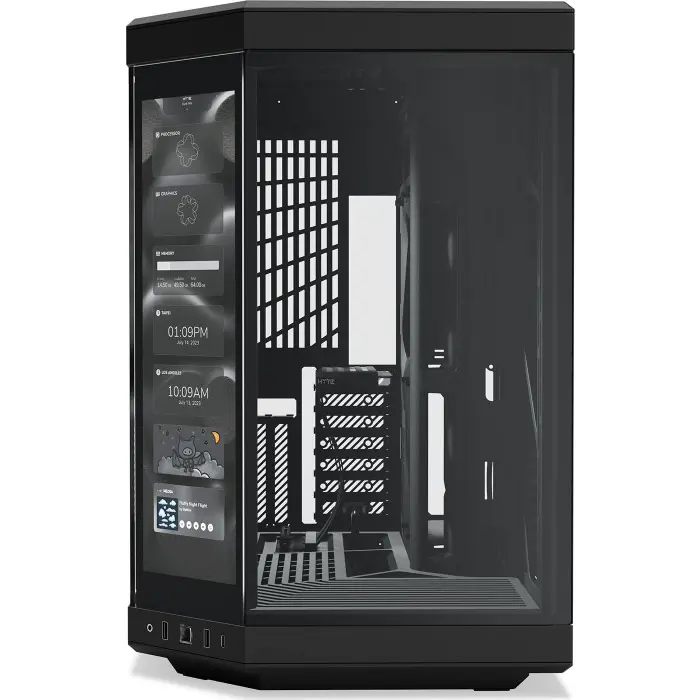

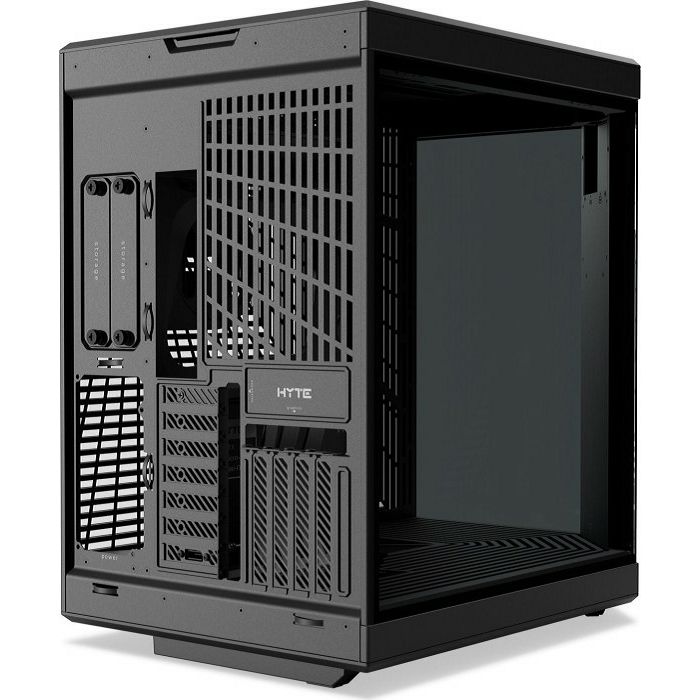

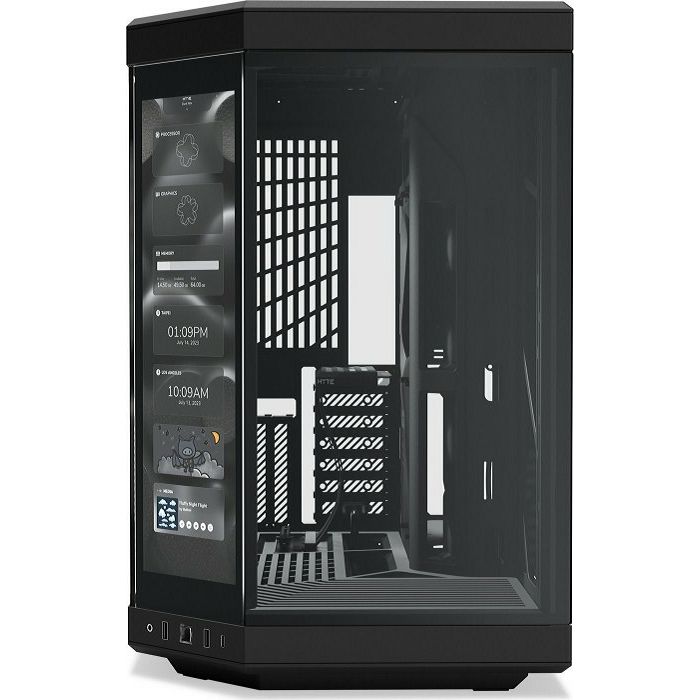

Hyte Midi Tower Y70 Touch Black, CS-HYTE-Y70-B-L

external
not available
Internal
2x 2.5" hot-swap
Connectors
1x USB-C 3.1 (10Gb/?s, 20-Pin Key-A Header), 2x USB-A 3.0 (5Gb/?s), 1x 3.5mm jack (Line-In/?Out)
PCI-slots
11 (7x low profile, 4x Riser Card); incl. PCIe Riser Card (PCIe 4.0 x16)
Fan(s) (front)
not available
Fan(s) (rear)
1x 120mm (optional) or 1x 140mm (optional)
Fans (left)
not available
Fans right
3x 120mm (optional) or 2x 140mm (optional)
Fan(s) (top)
3x 120mm (optional) or 2x 140mm (optional)
Fan(s) (bottom)
3x 120mm (optional) or 2x 140mm (optional)
Fans (other)
not available
radiator sizes
not available front, 120/?140/?240/?280/?360mm top, 120/?140mm rear, 120/?140/?240/?280/?360mm right
Motherboard
to ATX (E-ATX with unknown dimensions possible)
Supported motherboards
Mini-ITX (6.7"x6.7")/µATX (9.6"x9.6")/ATX (12"x9.6")/?E-ATX (unknown dimensions)
Power supply
ATX (max. 230mm deep)
Power supply position
bottom (vertical)
CPU Coolers
max. 180mm height
Graphics Cards
max. 390mm
Colour
black, inside black
Lighting
without Illumination
Dimensions (WxHxD)
320x470x470mm
Capacity
70.69l
Type
Midi-Tower
front
closed, glass
above
partially closed, Mesh, mainly fan grill, dust filter
below
partially closed, mainly fan grill, dust filter
left
closed, glass, partially display
right
partially closed, Mesh, mainly fan grill, dust filter
aft
partially closed, fan grill right top, PCI slots (7x low profile horizontal, 4x vertical)
front I/O position
Housing side: left, Height: bottom, position: front
Motherboard-Alignment
motherboard-Alignment: to left
Special features
incl. PCIe Riser Card (PCIe 4.0 x16), display (display front, 14.1", 1100x3840, 60Hz, capacitive, multi touch), touchscreen, Cable Management, dust filter, graphics card vertical mountable, side panel window made out of glass, Mehrkammerdesign
note to E-ATX
Mainboard and case manufacturers refer to different dimensions as E-ATX. This manufacturer does not specify supported E-ATX dimensions. E-ATX/SSI EEB mainboard dimensions of 305x330mm respectively 12"x13" may not be supported.
