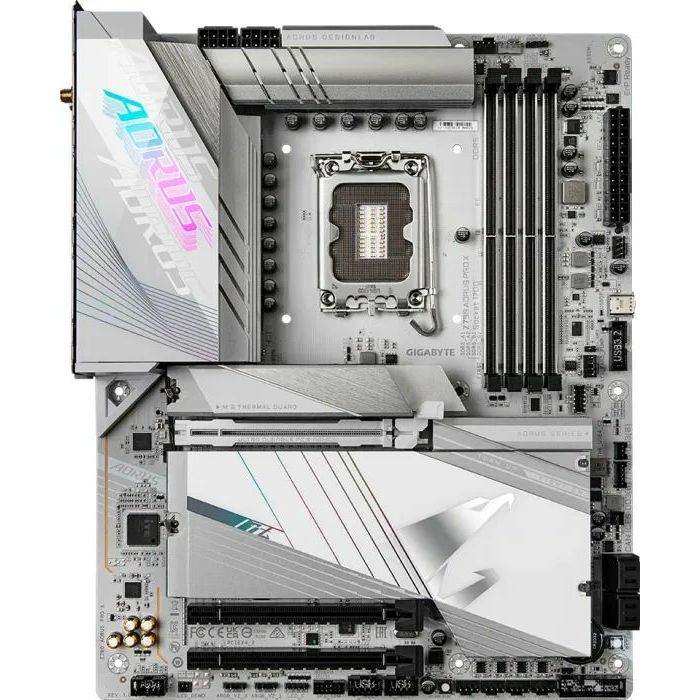

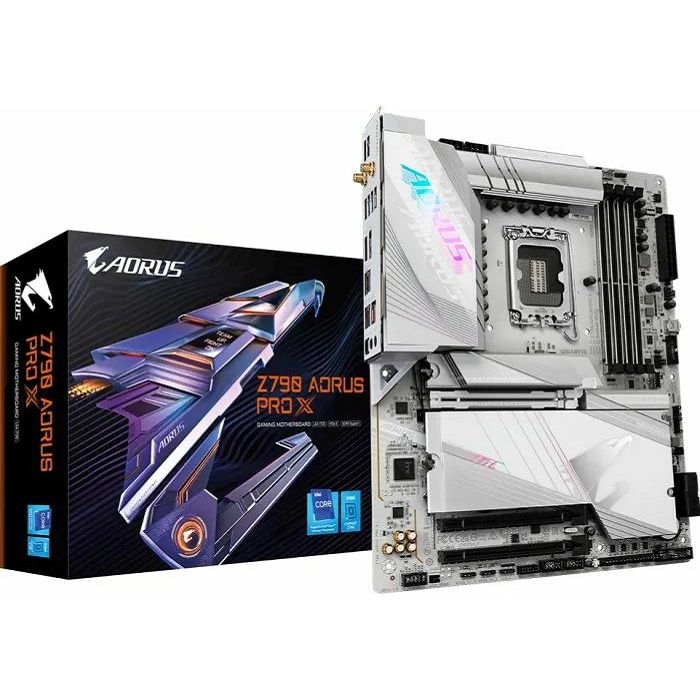

Gigabyte Z790 AORUS Pro X, DDR5, Intel Z790, s1700

Form factor ATX
Plinth Intel 1700
Chipset Intel Z790
CPU Compatibility Core i-14000, Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 4x DDR5 DIMM, dual PC5-66133U/DDR5-8266 (OC), max. 192GB (UDIMM)
Expansion Slots 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x16 (x4), 1x M.2/M-Key (PCIe 5.0 x4, 25110/2580), 2x M.2/M-Key (PCIe 4.0 x4, 22110/2280), 1x M.2/M-Key (PCIe 4.0 x4, 2280), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280), 1x M.2/E-Key (Intel CNVi, 2230)
External connections 1x HDMI 2.0 (iGPU), 1x USB-C 3.2 (20Gb/s), 1x USB-C 3.1 with DisplayPort 1.2 (10Gb/s, PD, max. 60W, via DisplayPort-In), 2x USB-A 3.1 (10Gb/s), 4x USB 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x 5GBase-T (Realtek), 2x jack, 1x Toslink, 1x DisplayPort-in, 2x antenna connector RP-SMA
Internal connections 1x USB-C 3.2 Key-A header (20Gb/s), 1x USB-C 2.0 Key-A header with DisplayPort 1.2 (480Mb/s), 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (Z790), 1x TPM header, 1x Thunderbolt header 5-pin, 1x RTD3 header
Header Cooling 1x CPU Fan 4-Pin, 1x CPU Fan/Pump 4-Pin, 4x Fan 4-Pin, 2x Fan/Pump 4-Pin, 2x Thermal Sensor, 1x Noise Sensor
Header Lighting 1x 4-pin RGB (+12V/G/R/B, max. 2A), 3x 3-pin ARGB (+5V/DATA/GND, max. 5A)
Buttons/Switches Reset button (internal), USB BIOS Flashback/Q-Flash Plus (internal)
Audio 7.1 (Realtek ALC1220)
Graphic iGPU
Wireless Wi-Fi 7 (Wi-Fi 802.11a/b/g/n/ac/ax/be, 2x2, MediaTek MT7927), Bluetooth 5.3
RAID Level 0/1/5/10 (Z790)
Multi-GPU N/A
Power connections 1x 24-pin ATX, 2x 8-pin EPS12V
VRM 19 virtual phases (18+1), 10 real phases (9+1)
MOSFETs CPU (VCORE) 18x 90A ISL99390
MOSFETs SoC (VCCGT) 1x 60A NCP303160
MOSFETs AUX (VCCAUX) 2x
Lighting N/A
BIOS 1x 32MB (256Mb)
Particularities Audio+solid capacitors, Diagnostic LED (LED indicators), integrated I/O panel, 5x M.2 passive cooler, onboard TPM 2.0 support (Intel PTT), White Build compatible (PCB white)
