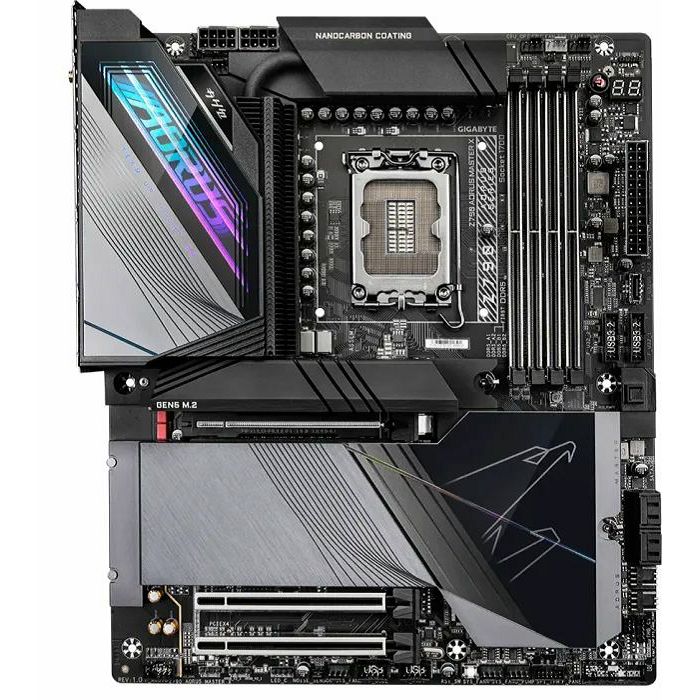

Gigabyte Z790 AORUS Master X, DDR5, Intel Z790, s1700

Form factor E-ATX (SSI CEB), 305x260mm
Plinth Intel 1700
Chipset Intel Z790
CPU Compatibility Core i-14000, Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 4x DDR5 DIMM, dual PC5-66133U/DDR5-8266 (OC), max. 192GB (UDIMM)
Expansion Slots 1x PCIe 5.0 x16, 2x PCIe 3.0 x16 (1x x4, 1x x1), 1x M.2/M-Key (PCIe 5.0 x4, 25110/2280), 2x M.2/M-Key (PCIe 4.0 x4, 22110/2280), 1x M.2/M-Key (PCIe 4.0 x4, 2280), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280), 1x M.2/E-Key (Intel CNVi, 2230, assigned to WiFi+BT module)
External connections 1x DisplayPort 1.2 (iGPU), 2x USB-C 3.2 (20Gb/s), 1x USB-C 3.1 (10Gb/s), 7x USB 3.1 (10Gb/s), 4x USB 3.0 (5Gb/s), 1x 10GBase-T (Marvell AQtion AQC113CS), 2x jack, 1x Toslink, 2x antenna connector RP-SMA
Internal connections 1x USB-C 3.2 Key-A header (20Gb/s), 2x USB 3.0 header (5Gb/s, 4x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (Z790), 1x TPM header, 1x Thunderbolt header 5-pin, 1x RTD3 header
Header Cooling 1x CPU Fan 4-Pin, 1x CPU Fan/Pump 4-Pin, 4x Fan 4-Pin, 4x Fan/Pump 4-Pin, 2x Thermal Sensor, 1x Noise Sensor
Header Lighting 1x 4-pin RGB (+12V/G/R/B, max. 2A), 3x 3-pin ARGB (+5V/DATA/GND, max. 5A)
Buttons/Switches Power button (internal), Reset button (internal), USB BIOS Flashback/Q-Flash Plus (external), Clear CMOS button (external)
Audio 5.1 (Realtek ALC1220), DAC (ESS ES9118), DTS:X Ultra
Graphic iGPU
Wireless Wi-Fi 7 (Wi-Fi 802.11a/b/g/n/ac/ax/be, 2x2, Qualcomm QCNCM865), Bluetooth 5.3
RAID Level 0/1/5/10 (Z790)
Multi-GPU N/A
Power connections 1x 24-pin ATX, 2x 8-pin EPS12V
VRM 20 virtual phases (20+0, 0+1), 21 real phases (20+0, 0+1), PWM controllers: RAA229131 (max. 20 phases), RAA229130 (max. 9 phases)
MOSFETs CPU (VCORE) 20x 105A RAA220105
MOSFETs SoC (VCCGT) 1x 105A RAA220105
MOSFETs AUX (VCCAUX) 2x
Lighting RGB, 1 Zone (Chipset Cooler)
BIOS 1x 32MB (256Mb)
Particularities Audio+solid capacitors, Diagnostic LED (segment display), voltage measurement points, integrated I/O panel, 5x M.2 passive coolers, onboard TPM 2.0 support (Intel PTT)
