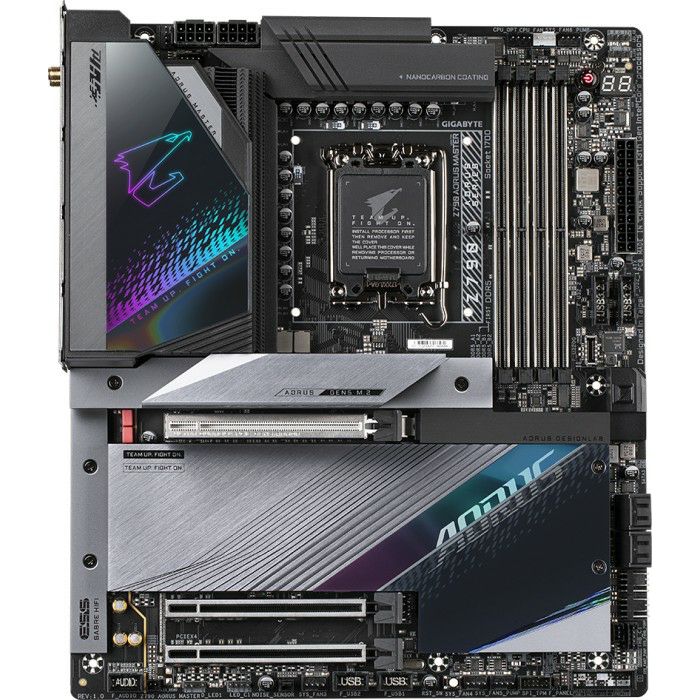

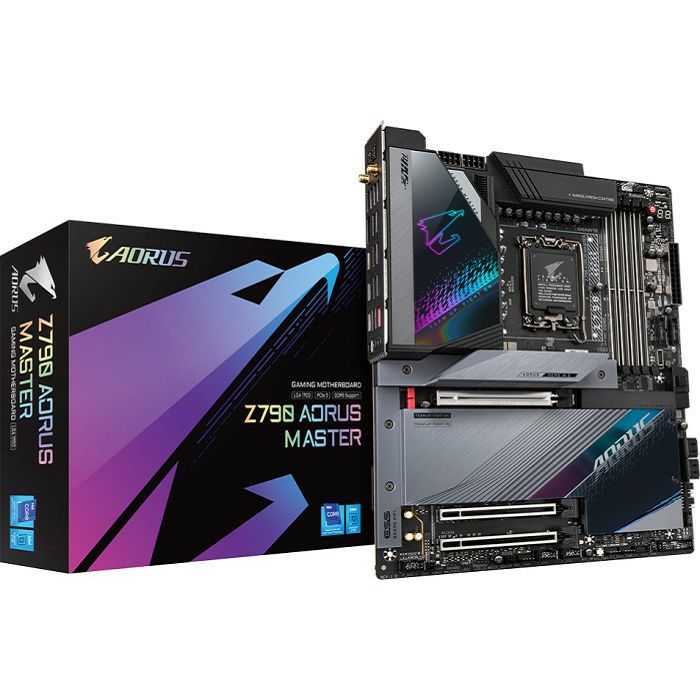

Gigabyte Z790 AORUS Master, DDR5, s1700

Form factor E-ATX (SSI CEB), 305x260mm, 12"x10.2
Plinth Intel 1700
Chipset Intel Z790
CPU Compatibility Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 4x DDR5 DIMM, dual PC5-64000U/DDR5-8000 (OC), max 128GB (UDIMM)
Expansion slots 1x PCIe 5.0 x16, 2x PCIe 3.0 x16 (1x x4, 1x x1), 1x M.2/M-Key (PCIe 5.0 x4, 25110/2280), 2x M.2/M-Key (PCIe 4.0 x4, 22110/2280), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280/2260), 1x M.2/E-Key (Intel CNVi, 2230, occupied with WiFi+BT module)

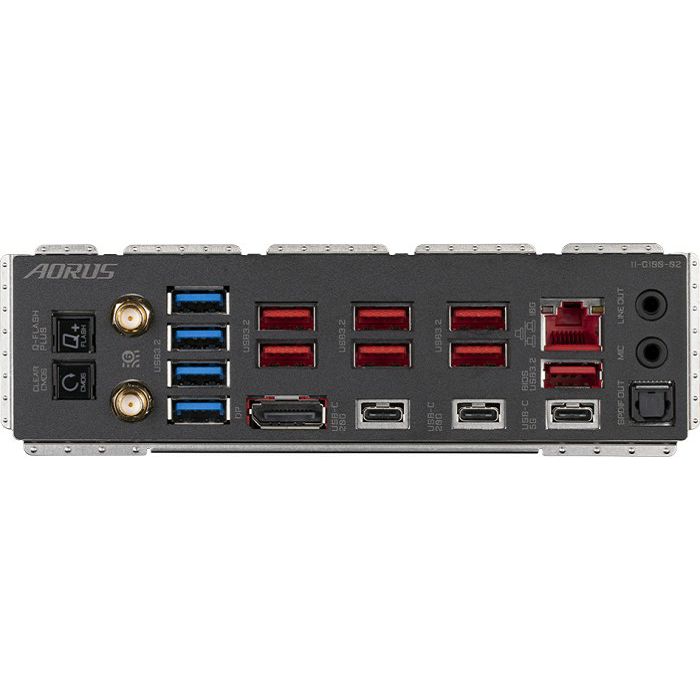

External connections 1x DisplayPort 1.2 (iGPU), 2x USB-C 3.2 (20Gb/s), 1x USB-C 3.1 (10Gb/s), 7x USB-A 3.1 (10Gb/s), 4x USB-A 3.0 (5Gb/s), 1x 10GBase-T (Marvell AQtion AQC113C), 2x jack, 1x Toslink, 2x antenna connector (RP-SMA)
Internal connections 1x USB-C 3.2 Key-A header (20Gb/s), 2x USB 3.0 header (5Gb/s, 4x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (Z790), 1x TPM header, 1x Thunderbolt header 5-pin, 1x RTD3 header
Header Cooling 1x CPU fan 4-pin, 1x CPU fan/pump 4-pin, 4x fan 4-pin, 4x fan/pump 4-pin, 2x thermal sensor, 1x noise sensor
Header Lighting 2x 4-pin RGB (+12V/G/R/B, max. 2A), 2x 3-pin ARGB (+5V/DATA/GND, max. 5A)
Buttons/Switches Power Button (Internal), Reset Button (Internal), Clear CMOS Button (External), USB BIOS Flashback/Q-Flash Plus (External)
Audio 5.1 (Realtek ALC1220), DAC (ESS ES9118), DTS:X Ultra
Graphic iGPU
Wireless Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2, Intel AX411), Bluetooth 5.3
RAID Levels 0/1/5/10 (Z790)
Multi-GPU AMD 2-Way CrossFireX (x16/x4)
Electrical connections 1x 24-pin ATX, 2x 8-pin EPS12V
VRM 20 virtual phases (20+0, 0+1), 21 real phases (20+0, 0+1), PWM controller: RAA229131 (max. 20 phases), RAA229130 (max. 9 phases)
MOSFETs CPU 20x 105A RAA220105
MOSFETs SoC 1x 105A RAA220105
Lighting RGB, 1 zone (I/O coverage)
BIOS 1x 32MB (256Mb)
Particularities Audio+solid capacitors, Diagnostic LED (segment display), Diagnostic LED (LED indicators), Integrated I/O panel, 5x M.2 passive cooler, Backplate, Voltage measuring points, Onboard TPM 2.0 support (Intel PTT)
