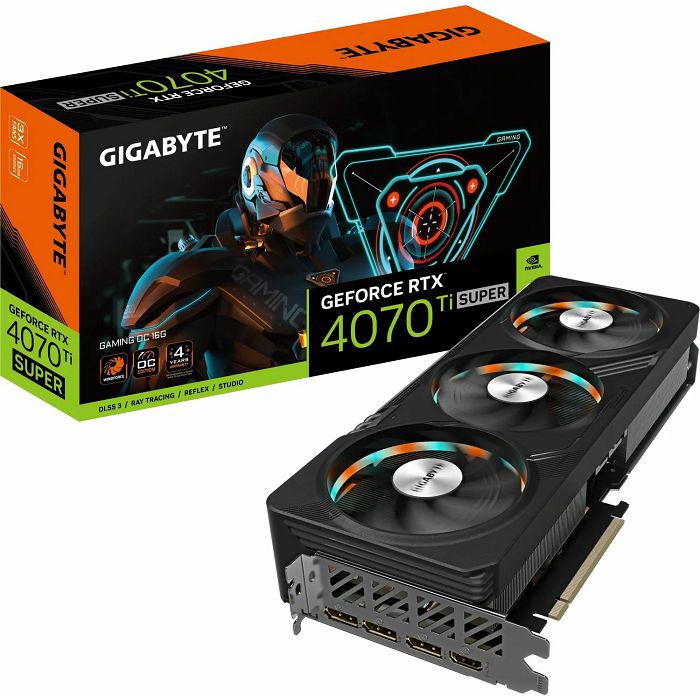

Gigabyte RTX4070Ti Super Gaming OC, 16GB GDDR6X, nVidia, GV-N407TSGAMING OC-16GD

GPU NVIDIA GeForce RTX 4070 Ti SUPER
Memory 16GB GDDR6X, 256bit, 21Gbps, 1313MHz, 672GB/s
Clock Base 2340MHz
Clock Boost 2655MHz
Overclocking +45MHz Boost
Cooling 3x axial fans (90mm) with 0dB zero-fan mode
TDP/TGP 285W (NVIDIA)
Power connections 1x 16-pin PCIe 5.0 (via adapter: 3x 8-pin PCIe)
Connections 1x HDMI 2.1a, 3x DisplayPort 1.4a
Connection PCIe 4.0 x16
Particularities LED lighting (RGB, fan RGB illuminated), backplate, graphics card holder
Overall depth Triple Slot
Dimensions 300x130x57.6mm (LxWxH)
Construction PCIe card (full height)
Slot bezel full height
Computing power 44.86 TFLOPS (FP16), 44.86 TFLOPS (FP32), 0.7 TFLOPS (FP64)
Chip Data
Chip Architecture Ada Lovelace (from 2022/Q3)
Chip Designation AD103-275-A1
Chip Configuration 66SM (8448SP / 264TMU / 112ROP), 66 RT Cores, 264 Tensor Cores, 64MB L2 cache
Chip Manufacturing TSMC 5nm "NVIDIA 4N"
Chip Size 379mm2, monolithic, 45.9 billion transistors
Chip Functions Ray tracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen), HDCP 2.3
API support DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
Transcoding Engine 2x NVENC (8th Gen, max. Sessions: 8), 1x NVDEC (5th Gen), Info
Encoding AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
Decoding AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
