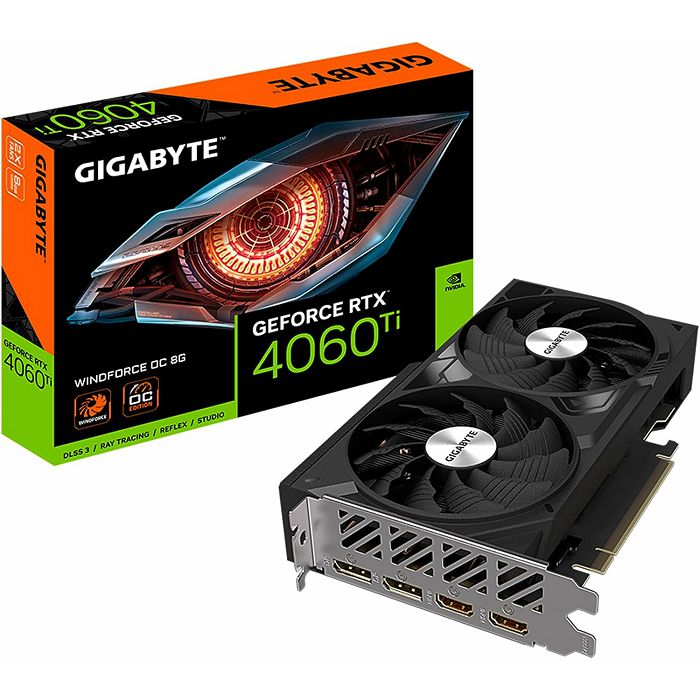

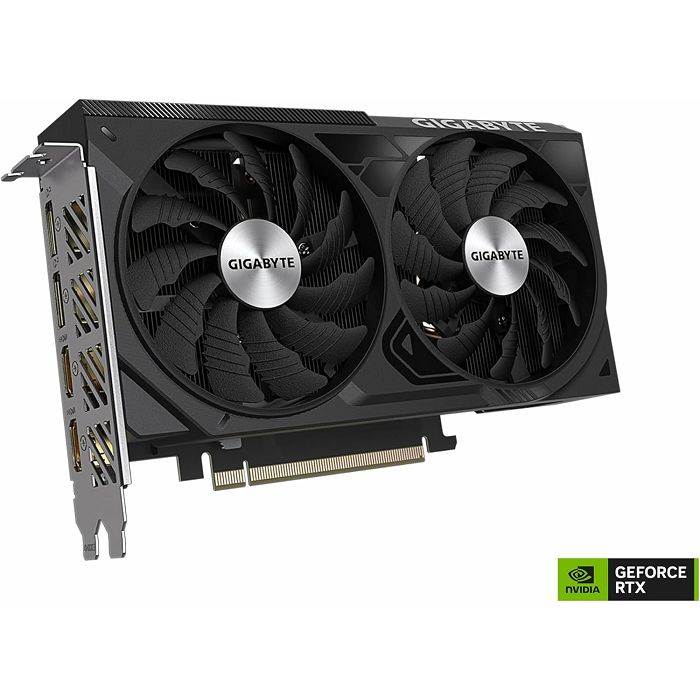

Gigabyte RTX4060Ti Windforce OC 8G, 8GB GDDR6, GeForce, GV-N406TWF2OC-8GD

GPU
NVIDIA GeForce RTX 4060 Ti
Memory
8GB GDDR6, 128bit, 18Gbps, 2250MHz, 288GB/s
Overclocking
+15MHz Boost
Clock Boost
2550MHz
Clock Base
2310MHz
Cooling
2x axial fan (90mm) with 0dB zero-fan mode
TDP/TGP
160W (NVIDIA)
Power connections
1x 8-pin PCIe
Connections
2x HDMI 2.1a, 2x DisplayPort 1.4a
Connection
PCIe 4.0 x16 (x8)
Particularities
Backplate
Overall depth
Dual Slot
Dimensions
201x120x41mm (LxWxH)
Construction
PCIe card (full height)
Slot bezel
full height
Computing power
22.2 TFLOPS (FP16), 22.2 TFLOPS (FP32), 0.35 TFLOPS (FP64)
Chip Data
Chip Architecture
Ada Lovelace (from 2022/Q3)
Chip Designation
AD106-350-A1
Chip Configuration
34SM (4352 ALUs / 136 TMUs / 48 ROPs), 34 RT Cores, 136 Tensor Cores, 32MB L2 cache
Chip Manufacturing
TSMC 5nm "NVIDIA 4N"
Chip Size
190mm2, monolithic
Chip Functions
Ray tracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen), HDCP 2.3
API support
DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
Transcoding Engine
1x NVENC (8th Gen, max. sessions: 5), 1x NVDEC (5th Gen), Info
Encoding
AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
Decoding
AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
