Gigabyte RTX4060Ti Eagle 8G, 8GB, GDDR6, GV-N406TEAGLE-8GD

GPU NVIDIA GeForce RTX 4060 Ti
Memory 8GB GDDR6, 128bit, 18Gbps, 2250MHz, 288GB/s
overclock -
clock Boost 2535MHz
clock Base 2310MHz
Cooling 3x Axial-fan (80mm) with 0dB-zero-fan-mode
TDP/TGP 160W (NVIDIA)
Power connections 1x 8-Pin PCIe

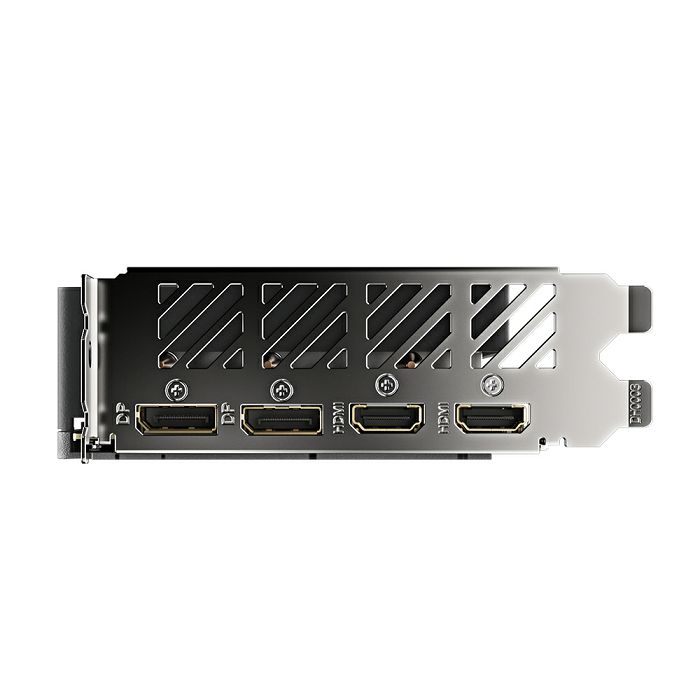

Interfaces 2x HDMI 2.1a, 2x DisplayPort 1.4a
Interface PCIe 4.0 x16 (x8)

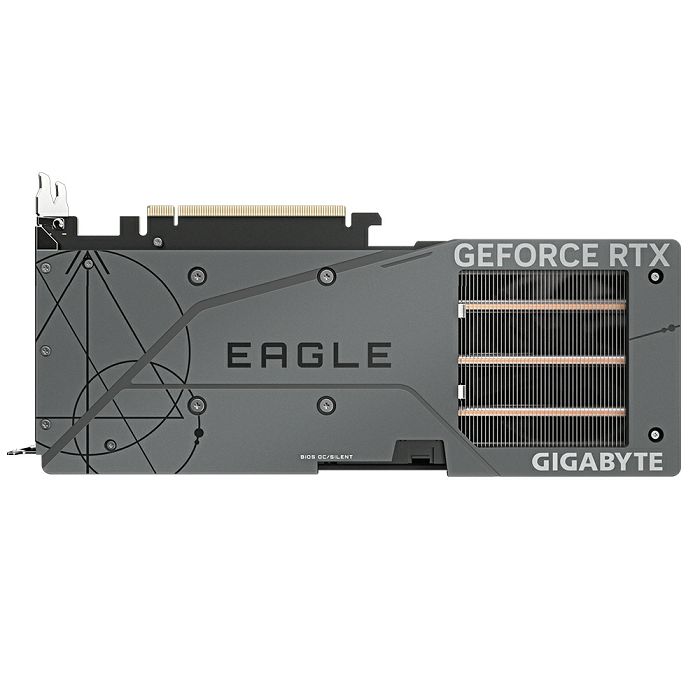

Special features Backplate
total height Dual Slot
Dimensions 272x115x41mm (LxWxH)
Type PCIe card (full height)
PCI slot bracket full height
Computing power 22.06 TFLOPS (FP16), 22.06 TFLOPS (FP32), 0.34 TFLOPS (FP64)
Chip-data
Chip-Architecture Ada Lovelace (from 2022/?Q3)
Chip-title AD106-350-A1
Chip-Configuration 34SM (4352 ALUs / 184 TMUs / 64 ROPs), 34 RT Cores, 136 Tensor Cores, 32MB L2 cache
Chip-Manufacturing Process TSMC 5nm "NVIDIA 4N"
Chip size 190mm2, monolithisch
Chip-functions Raytracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen), HDCP 2.3
API-support DirectX 12 Ultimate (12_2) /? CUDA 8.9 /? Vulkan 1.3 /? OpenCL 3.0 /? OpenGL 4.6 /? Shader Model 6.7
Transcoding-Engine 1x NVENC (8th Gen, max. Sessions: 5), 1x NVDEC (5th Gen), Info
encoding AV1, H.265 (4K YUV 4:2:0 /? 4K YUV 4:4:4 /? 4K Lossless /? 8K /? HEVC 10bit support /? HEVC B Frame support), H.264 (YUV 4:2:0 /? YUV 4:4:4 /? Lossless)
decoding AV1 (8bit /? 10bit), H.265 (8bit 4:2:0 /? 10bit 4:2:0 /? 12bit 4:2:0 /? 8bit 4:4:4 /? 10bit 4:4:4 /? 12bit 4:4:4), H.264, VP9 (8bit /? 10bit /? 12bit), VP8, VC-1, MPEG-2, MPEG-1
