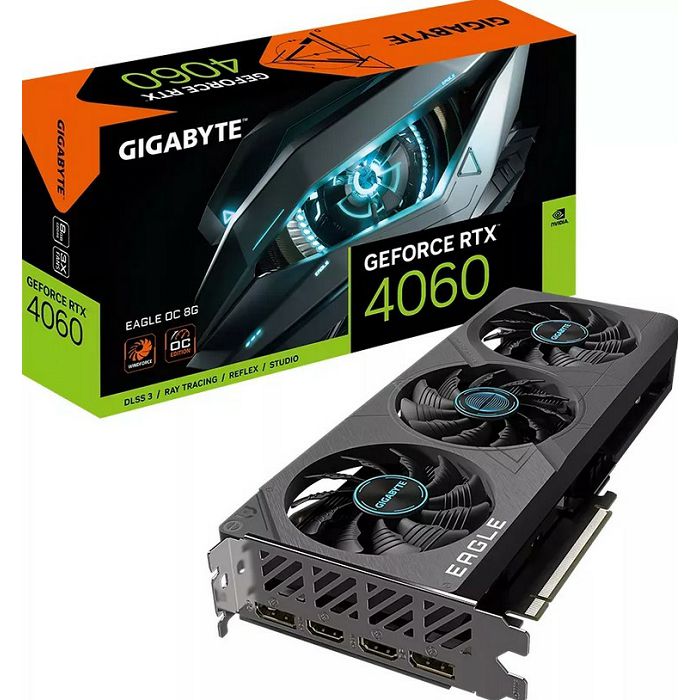

Gigabyte RTX4060 Eagle OC 8G, 8GB, GDDR6, GV-N4060EAGLE OC-8GD

GPU NVIDIA GeForce RTX 4060
Memory 8GB GDDR6, 128bit, 17Gbps, 2125MHz, 272GB/s
overclock +45MHz Boost
clock Boost 2505MHz
clock Base 1830MHz
Cooling 3x Axial-fan (80mm) with 0dB-zero-fan-mode
TDP/TGP 115W (NVIDIA)
Power connections 1x 8-Pin PCIe

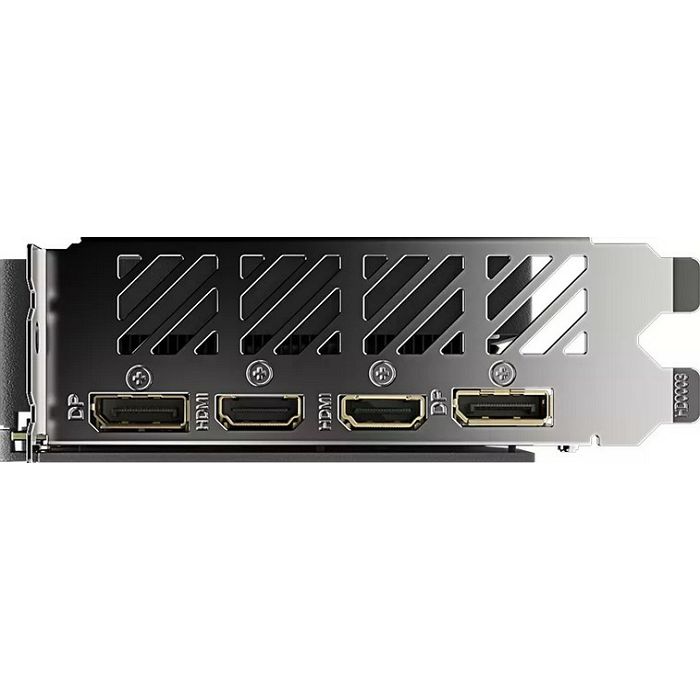

Interfaces 2x HDMI 2.1a, 2x DisplayPort 1.4a
Interface PCIe 4.0 x16 (x8)

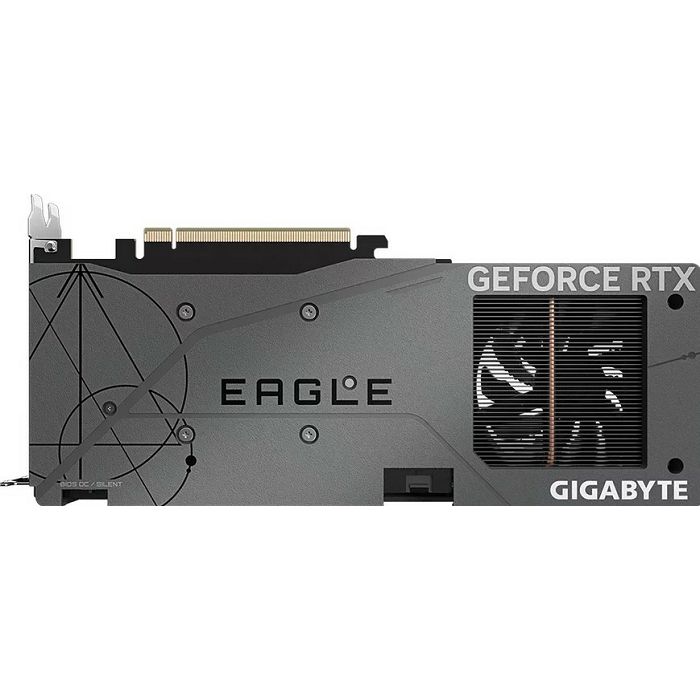

Special features Backplate
total height Dual Slot
Dimensions 272x115x40mm (LxWxH)
Type PCIe card (full height)
PCI slot bracket full height
Computing power 15.39 TFLOPS (FP16), 15.39 TFLOPS (FP32), 0.24 TFLOPS (FP64)
Warranty three years (from date of manufacture, processing via specialized dealers)
Chip-data
Chip-Architecture Ada Lovelace (from 2022/Q3)
Chip-title AD107-400-A1
Chip-Configuration 24SM (3072 ALUs / 96 TMUs / 32 ROPs), 24 RT Cores, 96 Tensor Cores, 24MB L2 cache
Chip-Manufacturing Process TSMC 5nm "NVIDIA 4N"
Chip size 146mm2, monolithisch
Chip-functions Raytracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen), HDCP 2.3
API-support DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
Transcoding-Engine 1x NVENC (8th Gen, max. Sessions: 5), 1x NVDEC (5th Gen), Info
encoding AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
decoding AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
