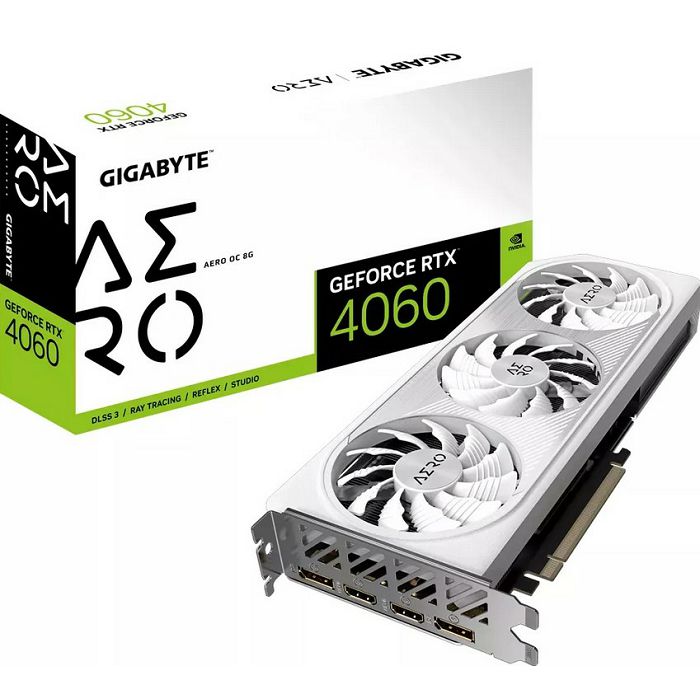

Gigabyte RTX4060 AERO OC 8G, 8GB, GDDR6, GV-N4060AERO OC-8GD

GPU NVIDIA GeForce RTX 4060
Memory 8GB GDDR6, 128bit, 17Gbps, 2125MHz, 272GB/s
overclock -
clock Boost unknown
clock Base 1830MHz

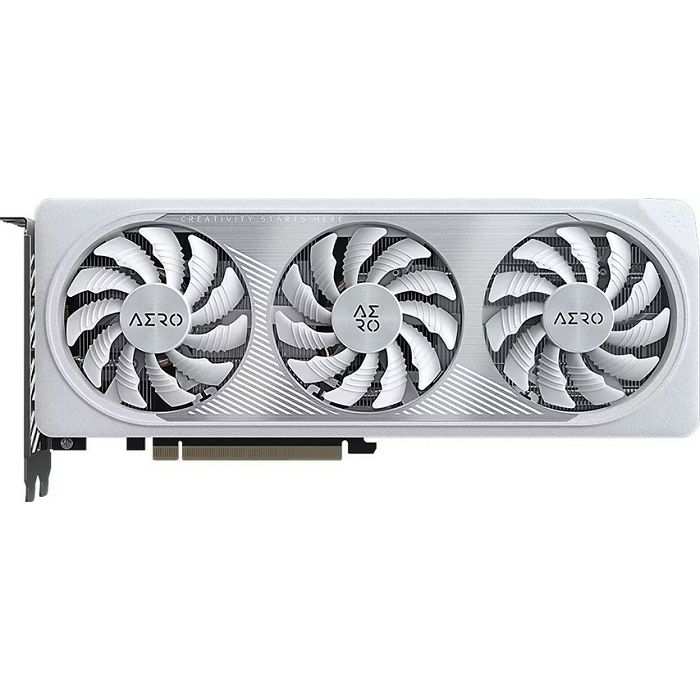

Cooling 3x Axial-fan (80mm) with 0dB-zero-fan-mode
TDP/TGP 115W (NVIDIA)
Power connections 1x 8-Pin PCIe
Interfaces 2x HDMI 2.1a, 2x DisplayPort 1.4a
Interface PCIe 4.0 x16 (x8)

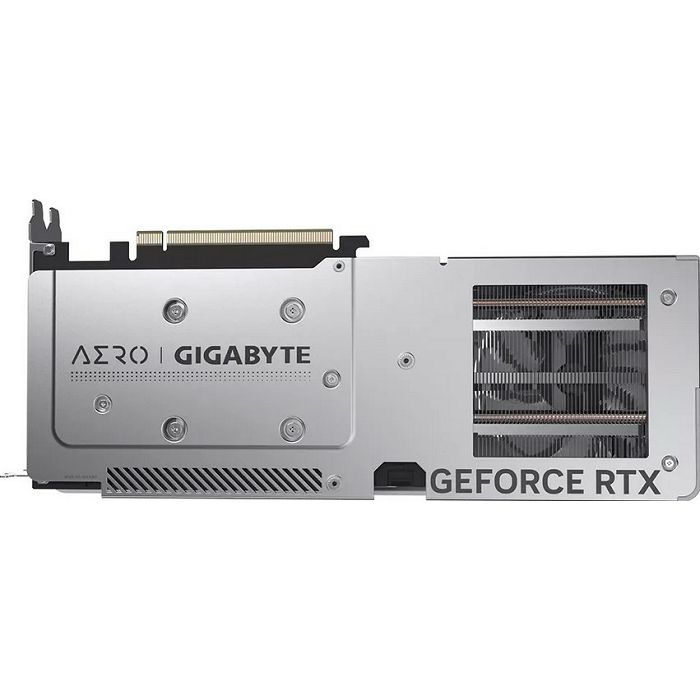

Special features Backplate, LED lighting (RGB), white colouring
total height Dual Slot
Dimensions 281x114x38mm (LxWxH)
Type PCIe card (full height)
PCI slot bracket full height
Computing power 11.24 TFLOPS (FP16), 11.24 TFLOPS (FP32), 0.18 TFLOPS (FP64)
Warranty three years (from date of manufacture, processing via specialized dealers)
Chip-dataChip-Architecture Ada Lovelace (from 2022/Q3)
Chip-title AD107-400-A1
Chip-Configuration 24SM (3072 ALUs / 96 TMUs / 32 ROPs), 24 RT Cores, 96 Tensor Cores, 24MB L2 cache
Chip-Manufacturing Process TSMC 5nm "NVIDIA 4N"
Chip size 146mm2, monolithisch
Chip-functions Raytracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen), HDCP 2.3
API-support DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
Transcoding-Engine 1x NVENC (8th Gen, max. Sessions: 5), 1x NVDEC (5th Gen), Info
encoding AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
decoding AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
