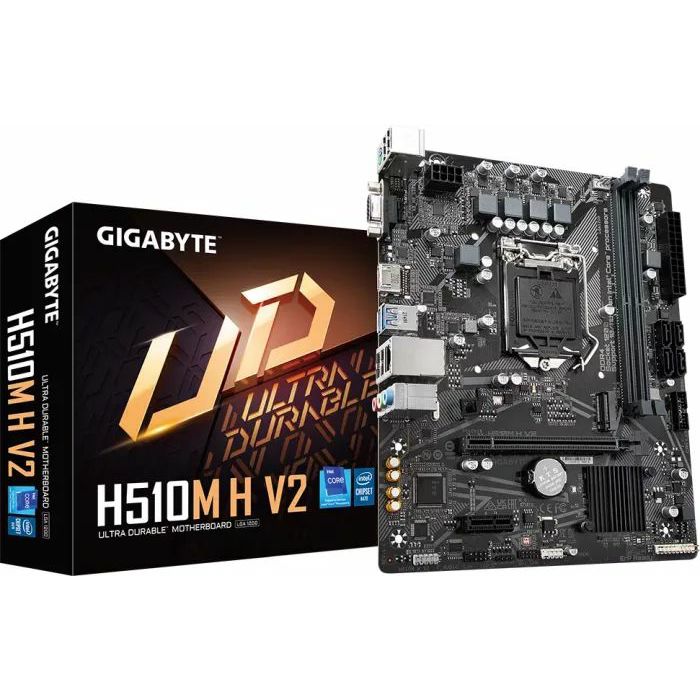

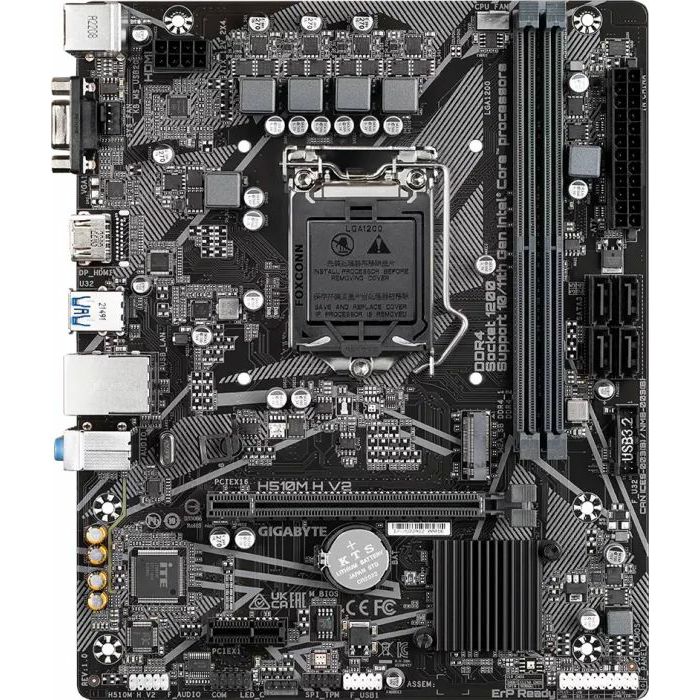

Gigabyte H510M H V2, Intel H470, Socket 1200, microATX

Form factor µATX
Plinth Intel 1200
Chipset Intel H470
CPU Compatibility Core i-11000, Core i-10000, Pentium Gold G6000, Celeron G5000
RAM 2x DDR4 DIMM, dual PC4-25600U/DDR4-3200, max. 64GB (UDIMM)
Expansion Slots 1x PCIe 3.0 x16, 1x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 3.0 x4/SATA, 2280)
External connections 1x VGA (iGPU), 1x HDMI 1.4 (iGPU), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x Gb LAN (Realtek RTL8118AS), 3x jack, 1x PS/2 combo
Internal connections 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 1x USB 2.0 header (480Mb/s, 2x USB 2.0), 4x SATA 6Gb/s (H470), 1x serial, 1x TPM header
Header Cooling 1x CPU fan 4-pin, 1x fan 4-pin
Header Lighting 1x 4-Pin RGB (+12V/G/R/B, max. 3A)
Buttons/Switches N/A
Audio 7.1 (Realtek ALC897)
Graphic iGPU
Wireless N/A
RAID Level 0/1/5/10 (H470)
Multi-GPU N/A
Power connections 1x 24-pin ATX, 1x 8-pin EPS12V
Lighting N/A
BIOS 1x 16MB (128Mb)
Particularities Audio+solid capacitors, onboard TPM 2.0 support (Intel PTT)
