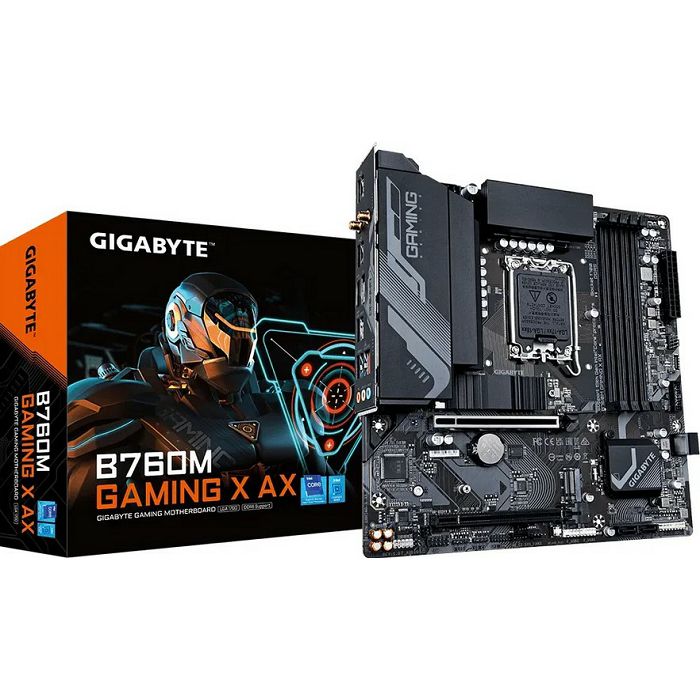

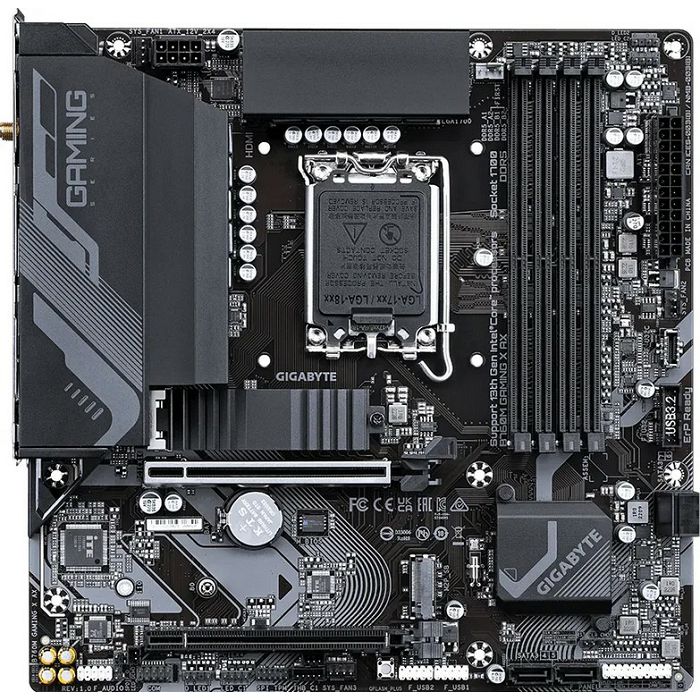

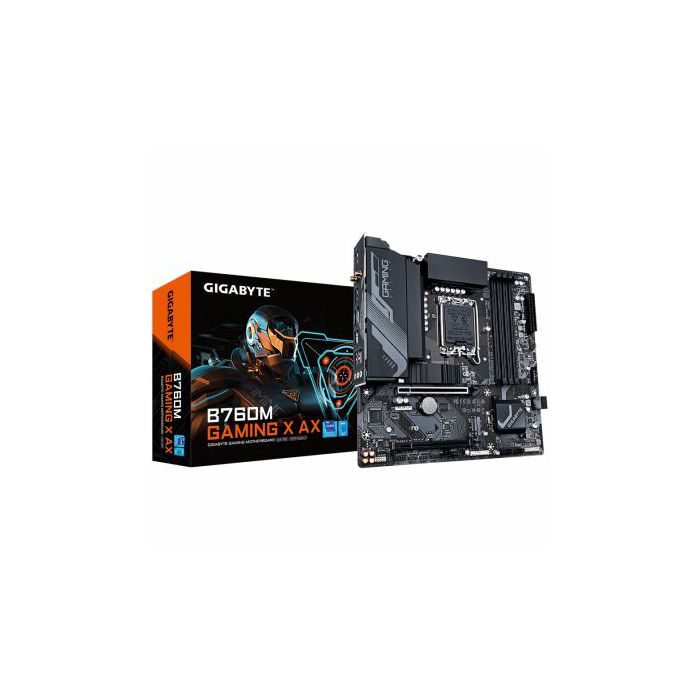

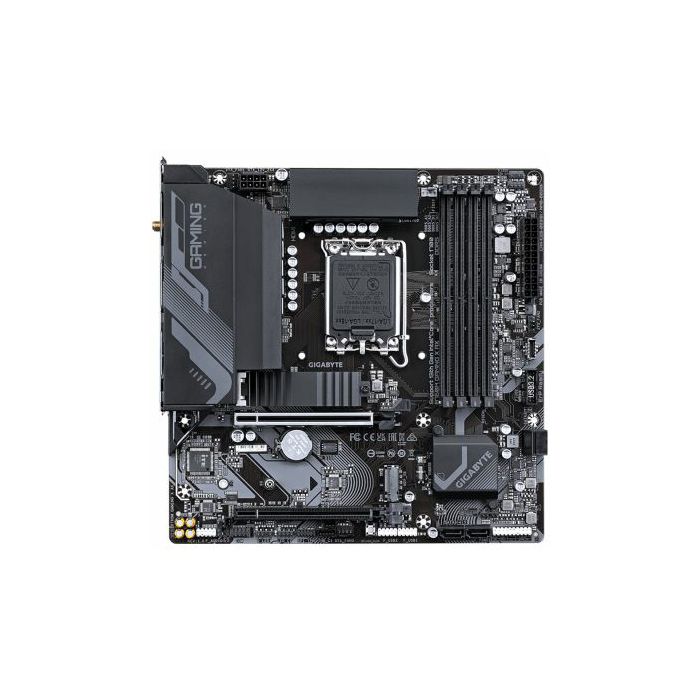

Gigabyte B760M GAMING X AX, DDR5, Intel B760, s.1700

shape factor µATX
Socket Intel 1700
chipset Intel B760
CPU-Compatibility Core i-14000, Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 4x DDR5 DIMM, dual PC5-60800U/?DDR5-7600 (OC), max. 192GB (UDIMM)
Extension slots 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 1x M.2/?M-Key (PCIe 4.0 x4, 2280), 1x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280/?2260), 1x M.2/?E-Key (Intel CNVi, 2230, occupied with WiFi+BT module)

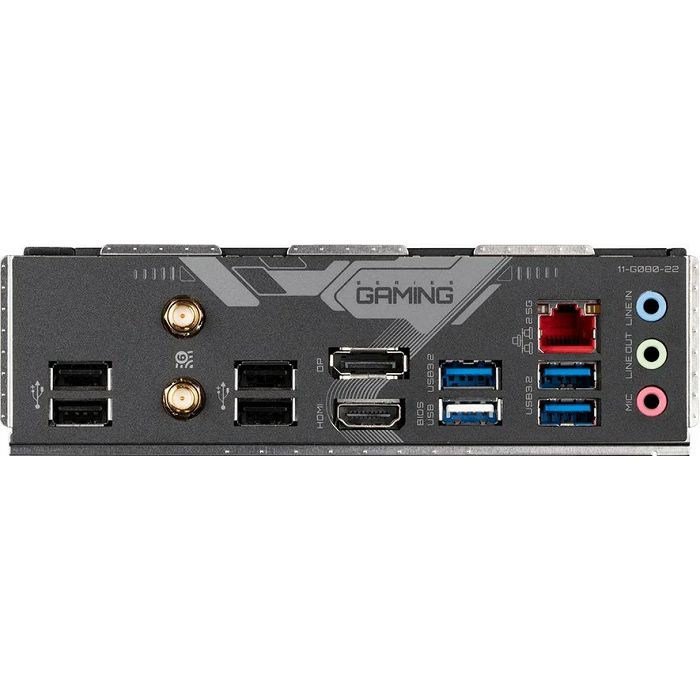

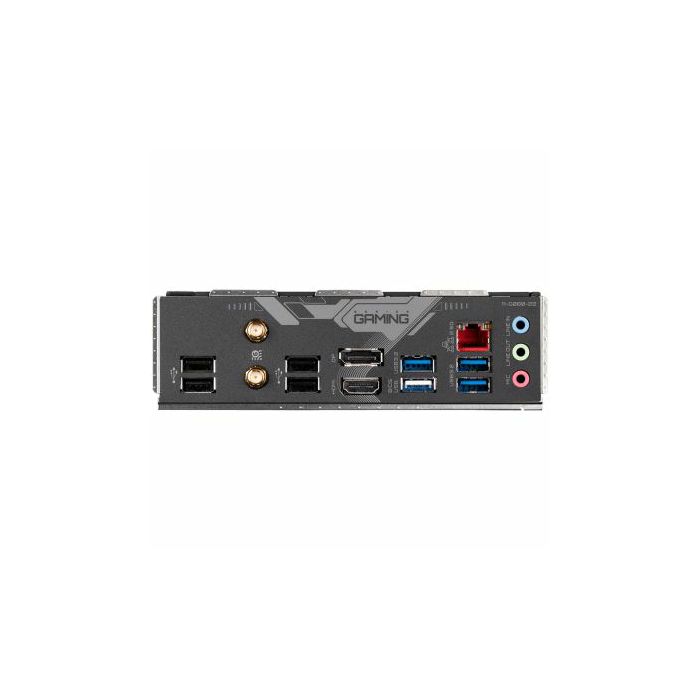

external connectors 1x HDMI 2.0 (iGPU), 1x DisplayPort 1.2 (iGPU), 3x USB-A 3.0 (5Gb/?s), 5x USB-A 2.0 (480Mb/?s), 1x 2.5GBase-T (Realtek RTL8125BG), 3x jack, 2x antenna connector RP-SMA
Internal connectors 1x USB-C 3.1 Key-A Header (10Gb/?s), 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 2x USB 2.0 header (480Mb/?s, 4x USB 2.0), 4x SATA 6Gb/s (B760), 1x serial, 1x TPM-Header, 1x Thunderbolt-Header 5-Pin, 1x RTD3-Header, 1x S/?PDIF-Header
Header Cooling 1x CPU fan 4-Pin, 3x fan 4-Pin
Header Lighting 2x 4-Pin RGB (+12V/?G/?R/?B, max. 2A), 2x 3-Pin ARGB (+5V/?DATA/?GND, max. 5A)
buttons/Switches Reset-Button (internal), USB BIOS Flashback/?Q-Flash Plus (internal)
Audio 7.1 (Realtek ALC897)
Graphics iGPU
Wireless Wi-Fi 6E (WLAN 802.11a/?b/?g/?n/?ac/?ax, 2x2, Intel AX210), Bluetooth 5.3
RAID level 0/?1/?5/?10 (B760)
Multi-GPU not available
Power connections 1x 24-Pin ATX, 1x 8-Pin EPS12V
VRM 9 virtual phases (8+1), 9 real phases (8+1), PWM-Controller: NCP81530R (max. 10 phases)
MOSFETs CPU (VCORE) 8x 55A NCP302155
MOSFETs SoC (VCCGT) 1x 55A NCP302155
Lighting not available
BIOS 1x 32MB (256Mb)
Special features audio+solid capacitors, 1x M.2-passive cooler, I/?O-shield integrated, onboard TPM 2.0 support (Intel PTT)
