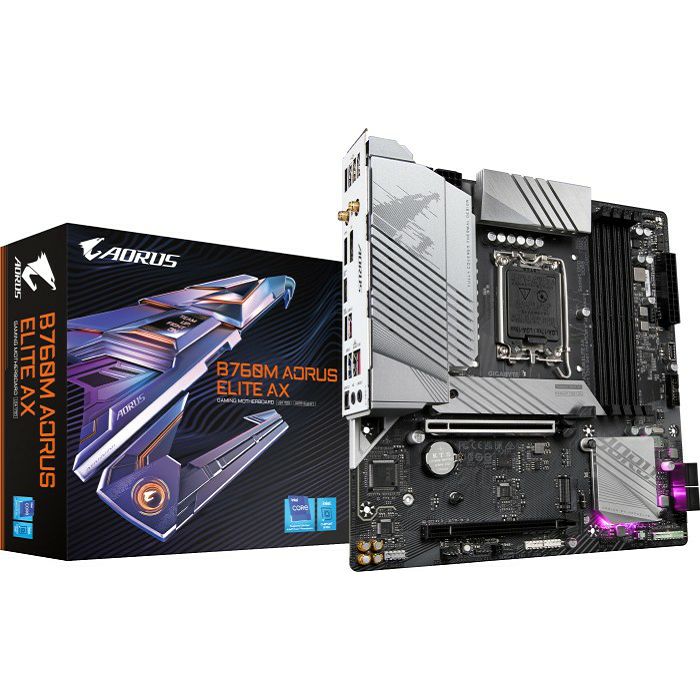

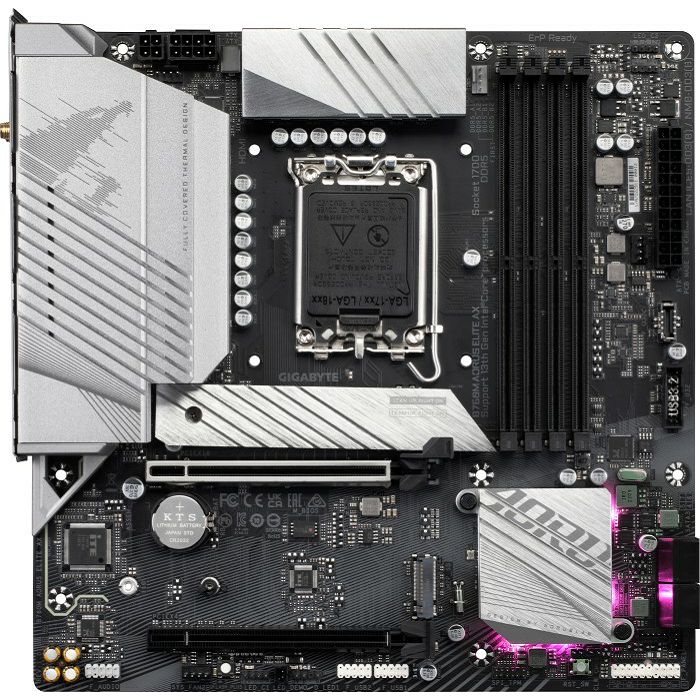

Gigabyte B760M AORUS ELITE AX, DDR5, Intel B760, s.1700

Form factor µATX
Plinth Intel 1700
Chipset Intel B760
CPU Compatibility Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 4x DDR5 DIMM, dual PC5-60800U/DDR5-7600 (OC), max 128GB (UDIMM)
Expansion slots 2x PCIe 4.0 x16 (1x x16, 1x x4), 1x M.2/M-Key (PCIe 4.0 x4, 2280), 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280), 1x M.2/E-Key (PCIe/Intel CNVi, 2230, occupied with WiFi+BT module)
External connections 1x HDMI 2.0 (iGPU), 1x DisplayPort 1.2 (iGPU), 1x USB-C 3.2 (20Gb/s), 1x USB-A 3.1 (10Gb/s), 3x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek RTL8125BG), 2x jack, 1x Toslink, 2x antenna connector (RP-SMA)
Internal connections 1x USB-C 3.1 Key-A header (10Gb/s), 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B760), 1x TPM header, 1x Thunderbolt header 5-pin, 1x RTD3 header
Header Cooling 1x CPU fan 4-pin, 3x fan 4-pin
Header Lighting 2x 4-pin RGB (+12V/G/R/B, max. 2A), 2x 3-pin ARGB (+5V/DATA/GND, max. 5A)
Buttons/Switches Reset-Button (internal), USB BIOS Flashback/Q-Flash Plus (internal)
Audio 7.1 (Realtek ALC897)
Graphic iGPU
Wireless Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2, Intel AX211), Bluetooth 5.3
RAID Levels 0/1/5/10 (B760)
Multi-GPU AMD 2-Way CrossFireX (x16/x4)
Electrical connections 1x 24-pin ATX, 1x 8-pin EPS12V, 1x 4-pin ATX12V
VRM 13 virtual phases (12+1), 7 real phases (6+1), PWM controller: NCP81530R (max. 10 phases)
MOSFETs CPU 12x 55A NCP302155
MOSFETs SoC 1x 55A NCP302155
Lighting RGB, 1 Zone (Chipset Cooler)
BIOS 1x 32MB (256Mb)
Particularities Audio+solid capacitors, 1x M.2 passive cooler, integrated I/O aperture, onboard TPM 2.0 support (Intel PTT)
