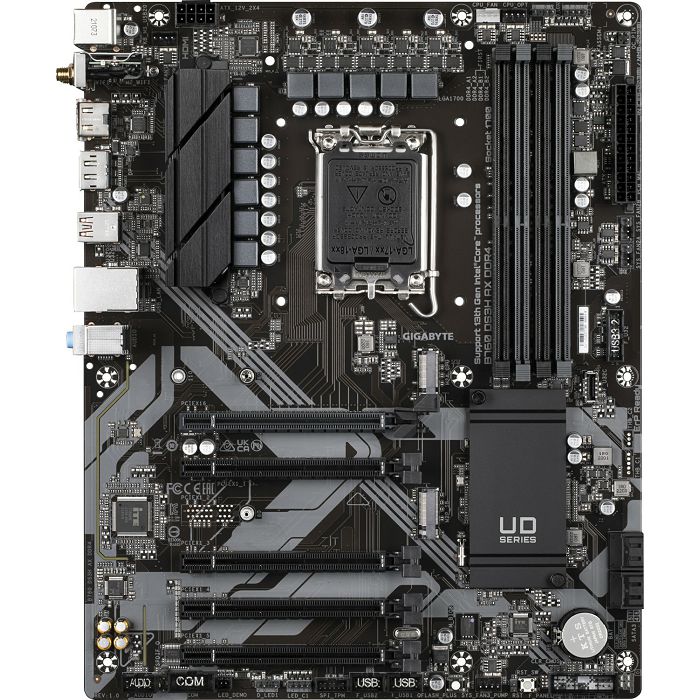

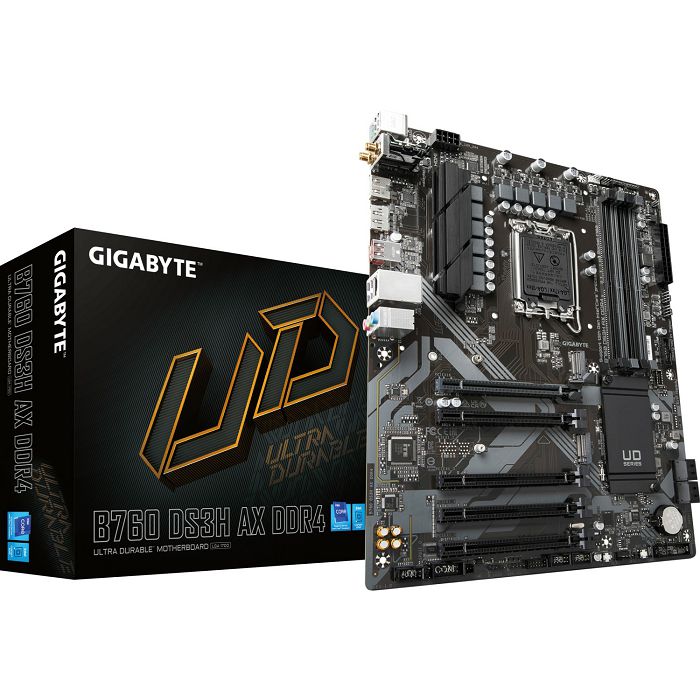

Gigabyte B760 DS3H AX DDR4, Intel B760, s.1700

shape factor
ATX
Socket
Intel 1700
chipset
Intel B760
CPU-Compatibility
Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM
4x DDR4 DIMM, dual PC4-42666U/DDR4-5333 (OC), max. 128GB (UDIMM)
Extension slots
1x PCIe 4.0 x16, 4x PCIe 3.0 x16 (x1), 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280), 1x M.2/M-Key (PCIe 4.0 x4, 2280), 1x M.2/E-Key (Intel CNVi, 2230, occupied with WiFi+BT module)
external connectors
1x HDMI 2.0 (iGPU), 1x DisplayPort 1.2 (iGPU), 1x USB-C 3.2 (20Gb/s), 1x USB-A 3.1 (10Gb/s), 4x USB-A 2.0 (480Mb/s), 1x Gb LAN (Realtek), 3x jack, 1x PS/2 Combo, 2x antenna connector (RP-SMA)
Internal connectors
1x USB-C 3.0 Key-A Header (5Gb/s), 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B760), 1x serial, 1x TPM-Header, 1x S/PDIF-Header
Header Cooling
1x CPU fan 4-Pin, 1x CPU fan/pump 4-Pin, 3x fan 4-Pin, 1x fan/pump 4-Pin
Header Lighting
2x 4-Pin RGB (+12V/G/R/B, max. 2A), 2x 3-Pin ARGB (+5V/DATA/GND, max. 5A)
buttons/Switches
Reset-Button (internal), USB BIOS Flashback/Q-Flash Plus (internal)
Audio
7.1 (Realtek ALC897)
Graphics
iGPU
Wireless
Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2, AMD RZ608/MediaTek MT7921K), Bluetooth 5.2
RAID level
0/1/5/10 (B760)
Multi-GPU
not available
Power connections
1x 24-Pin ATX, 1x 8-Pin EPS12V
VRM
10 virtual phases (8+2), 6 real phases (4+2), PWM-Controller: NCP81530 (max. 10 phases)
MOSFETs CPU
8x 46A 4C10N/16x 4C06N
MOSFETs SoC
2x 46A 4C10N/4x 4C06N
Lighting
not available
BIOS
1x 16MB (128Mb)
Special features
audio+solid capacitors, Diagnostic LED (LED indicators), onboard TPM 2.0 support (Intel PTT)
