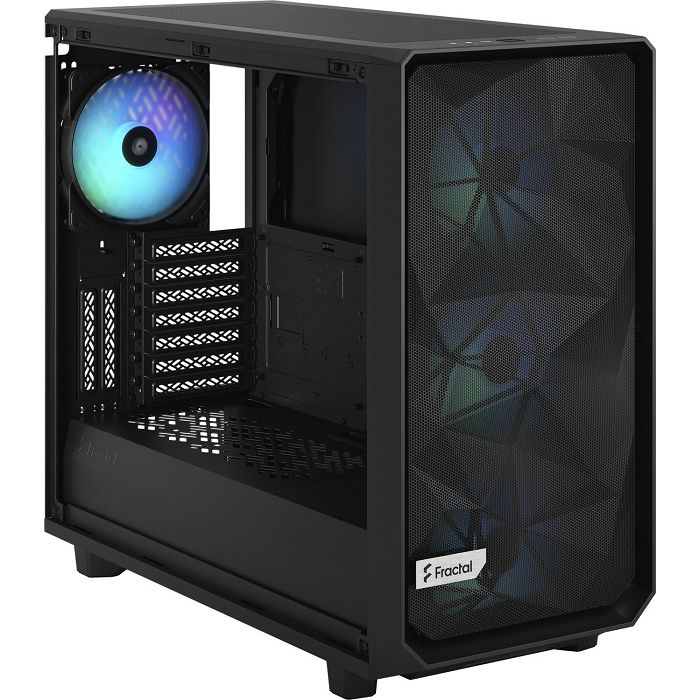

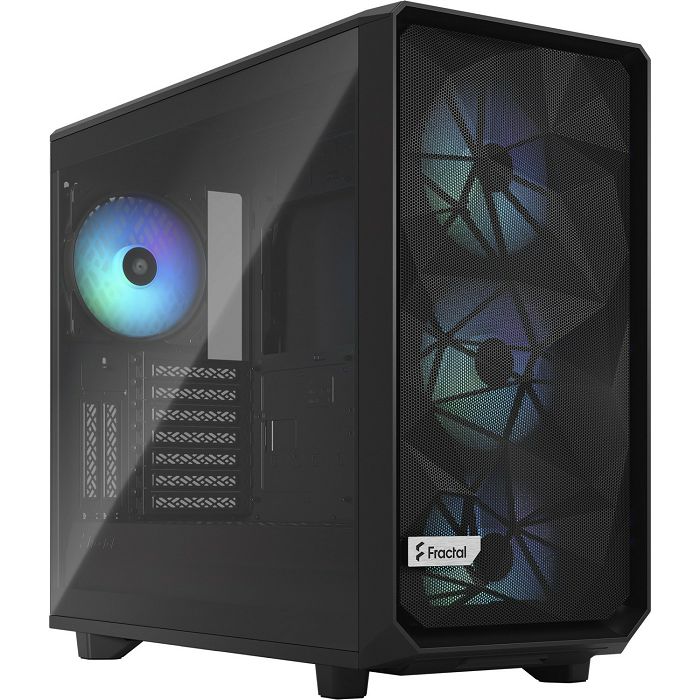

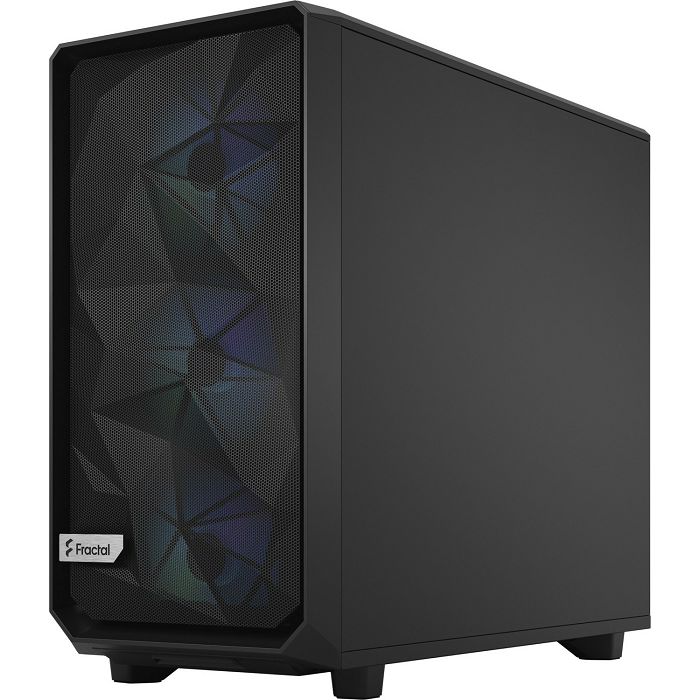

Fractal Midi Tower Design Meshify 2 RGB Black TG Light Tint, FD-C-MES2A-06

external
not available
Internal
6x 2.5"/3.5" (transverse, HDD rails), 2x 2.5", 8x 2.5"/3.5" (optional), 2x 2.5" (optional)
front I/O
1x USB-C 3.1 (10Gb/s, 20-Pin Key-A Header), 2x USB-A 3.0 (5Gb/s), 1x microphone, 1x headphone
PCI-slots
9 (2x Riser Card)
Fan(s) (front)
3x 140mm, 1000rpm, 19.5dB(A), 1.02mmH2O, 69.7m3/h (RGB illuminated)
Fan(s) (rear)
1x 140mm, 1000rpm, 19.5dB(A), 1.02mmH2O, 69.7m3/h (RGB illuminated)
Fans (left)
not available
Fans right
not available
Fan(s) (top)
3x 140mm (optional)
Fan(s) (bottom)
2x 140mm (optional)
Fans (other)
not available
radiator sizes
120/140/240/280/360mm front, 120/240/360mm top, 120/140/240mm bottom, 120mm rear
Motherboard
to ATX (285mm wide)
Supported motherboards
Mini-ITX (6.7"x6.7")/µATX (9.6"x9.6")/ATX (12"x9.6")/E-ATX (12"x11.2")
Power supply
ATX (max. 250mm deep)
Power supply position
bottom
CPU Coolers
max. 185mm height
Graphics Cards
max. 450mm
Colour
black, inside black
Lighting
RGB-Header 3-Pin ARGB (+5V/DATA/GND), integrated LED control, illuminated fan
Dimensions (WxHxD)
240x474x542mm
Capacity
61.66l
Weight
11.10kg
Type
Midi-Tower
front I/O position
Housing side: not specified, Height: not specified, position: not specified
Special features
Cable Management, dust filter, side panel window made out of glass
Note
Mainboard and case manufacturers refer to different dimensions as E-ATX. E-ATX/SSI EEB mainboard dimensions of 305x330mm respectively 12"x13" are not supported.
