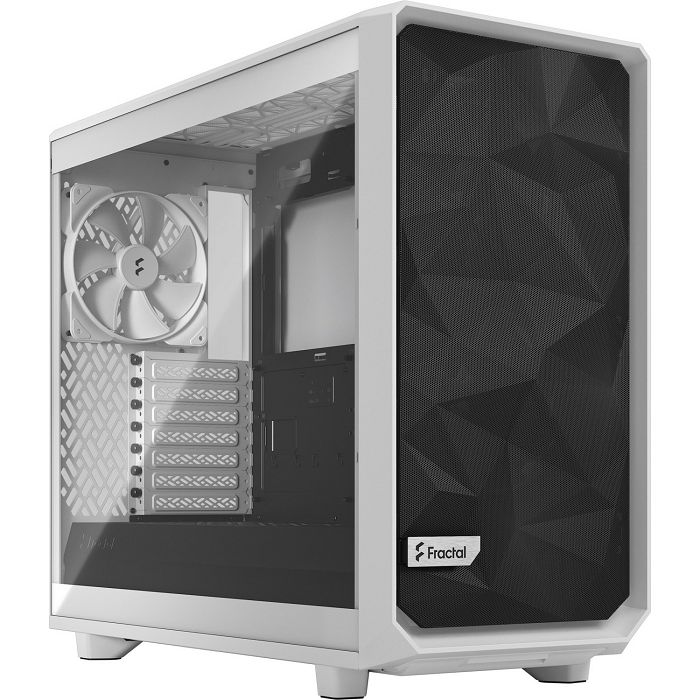

Fractal Midi Tower Design Meshify 2 Lite White TG Light Tint, FD-C-MEL2A-04

External not available
Internal 2x 2.5"/3.5" (transverse, HDD rails), 2x 2.5", 2x 2.5"/3.5" (optional)
front I/O 1x USB-C 3.1 (10Gb/s, 20-Pin Key-A Header), 2x USB-A 3.0 (5Gb/s), 1x microphone, 1x headphone
PCI-slots 7
Fan(s) (front) 2x 140mm, 1000rpm, 19.5dB(A), 1.02mmH2O, 69.7m3/h or 3x 140mm (optional)
Fan(s) (rear) 1x 140mm, 1000rpm, 19.5dB(A), 1.02mmH2O, 69.7m3/h
Fans (left) not available
Fans right not available
Fan(s) (top) 3x 140mm (optional)
Fan(s) (bottom) 2x 140mm (optional)
Fans (other) not available
radiator sizes 120/140/240/280/360mm front, 120/240/360mm top, 120/140/240/280mm bottom, 120mm rear
Motherboard to ATX (285mm wide)
Supported motherboards Mini-ITX (6.7"x6.7")/µATX (9.6"x9.6")/ATX (12"x9.6")/E-ATX (12"x11.2")
Power supply ATX (max. 250mm deep)
Power supply position bottom
CPU Coolers max. 185mm height
Graphics Cards max. 451mm (476mm without front fan)
Colour white/black, inside black/white
Lighting without Illumination
Dimensions (WxHxD) 240x474x542mm
Capacity 61.66l
Weight 9.60kg
Type Midi-Tower
front I/O position Housing side: not specified, Height: not specified, position: not specified
Special features Cable Management, dust filter, side panel window made out of glass
Note Mainboard and case manufacturers refer to different dimensions as E-ATX. E-ATX/SSI EEB mainboard dimensions of 305x330mm respectively 12"x13" are not supported.
