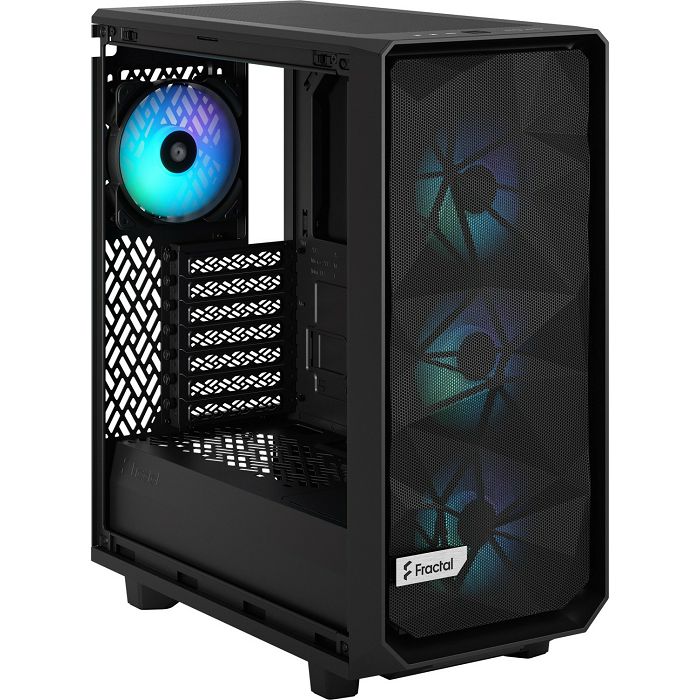

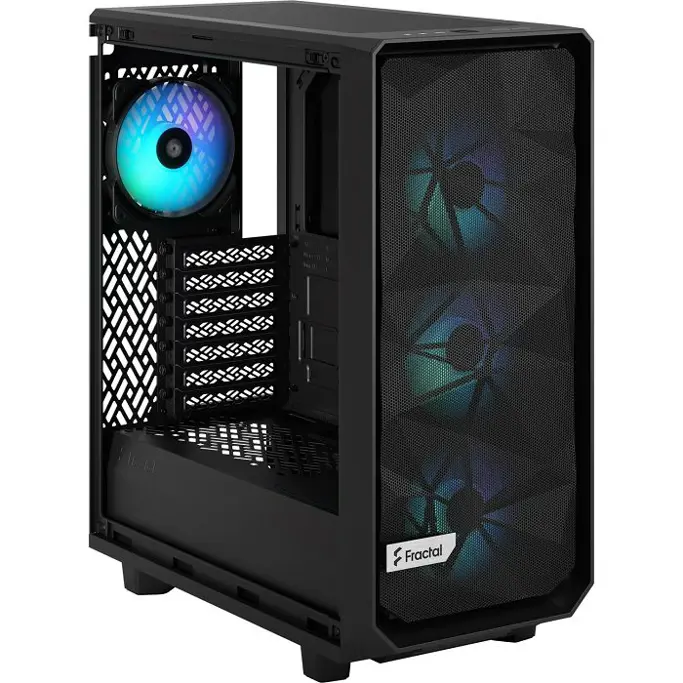

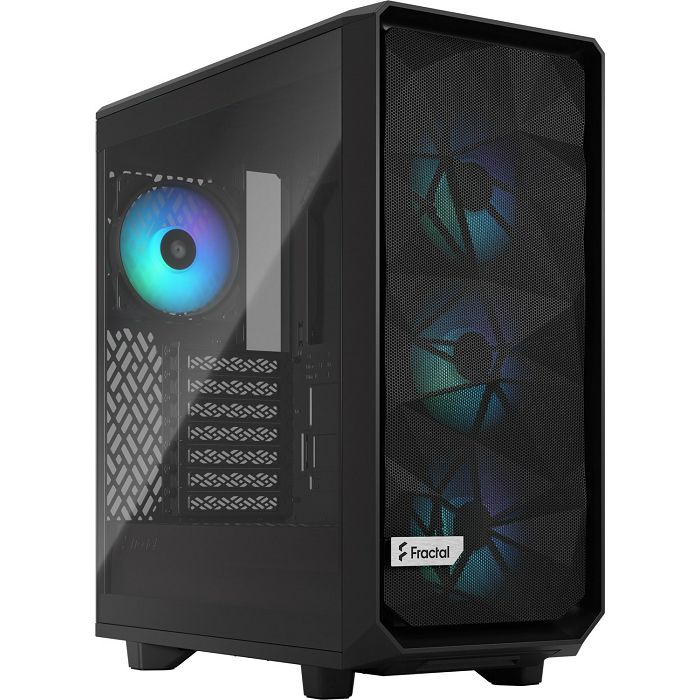

Fractal Midi Tower Design Meshify 2 Compact Black TG Light RGB, FD-C-MES2C-06

external not available
Internal 2x 2.5"/3.5" (transverse, HDD rails), 2x 2.5", 2x 2.5" (optional)
front I/O 1x USB-C 3.1 (10Gb/?s, 20-Pin Key-A Header), 2x USB-A 3.0 (5Gb/?s), 1x microphone, 1x headphone
PCI-slots 7
Fan(s) (front) 3x 120mm, 500-2000rpm, 0.23-2.34mmH2O, 22.1-95.1m3/?h, 10-33.2dB(A) (RGB illuminated) or 2x 140mm (optional)
Fan(s) (rear) 1x 120mm, 500-2000rpm, 0.23-2.34mmH2O, 22.1-95.1m3/?h, 10-33.2dB(A) (RGB illuminated)
Fans (left) not available
Fans right not available
Fan(s) (top) 2x 140mm (optional)
Fan(s) (bottom) 1x 120mm (optional)
Fans (other) not available
radiator sizes 120/?140/?240/?280/?360mm front, 120/?240mm top, 120mm bottom, 120mm rear
Motherboard to ATX
Supported motherboards Mini-ITX (6.7"x6.7")/µATX (9.6"x9.6")/ATX (12"x9.6")
Power supply ATX (max. 165mm with HDD-cage with front fan)
Power supply position bottom
CPU Coolers max. 169mm height
Graphics Cards max. 345mm
Colour black, inside black
Lighting RGB-Header 3-Pin ARGB (+5V/?DATA/?GND), integrated LED control, illuminated fan
Dimensions (WxHxD) 210x475x424mm
Capacity 42.29l
Weight 8.10kg
Type Midi-Tower
front Mesh, dust filter inside
above partially closed, mainly fan grill, dust filter inside, dust filter outdoor
below partially closed, mainly fan grill, dust filter outdoor
left closed, glass
right closed
aft partially closed, fan grill right top, PCI slots (7x horizontal)
front I/O position Housing side: top, Height: front, position: centered
Special features Cable Management, dust filter, side panel window made out of glass
