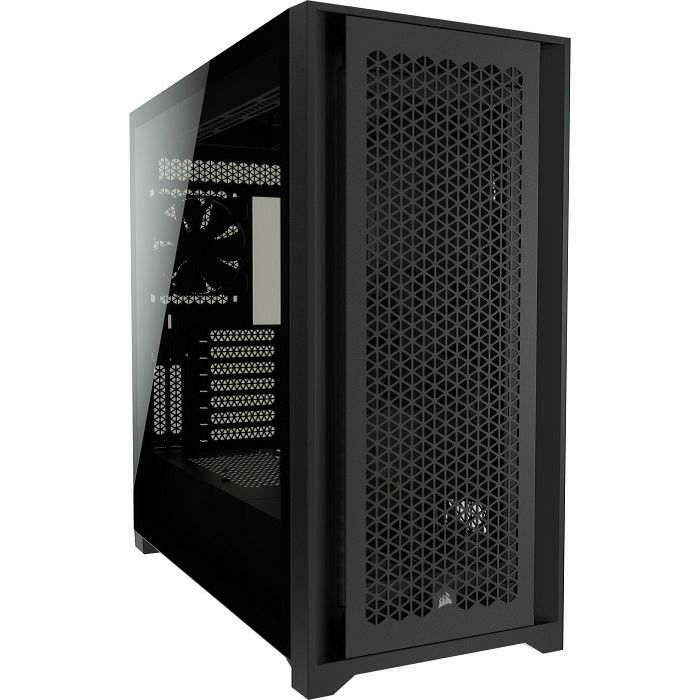

Corsair Midi Tower 5000D Airflow, glass window, Black, CC-9011210-WW

external
not available
Internal
2x 2.5"/3.5" (transverse, HDD rails), 4x 2.5"
Connectors
1x USB-C 3.1 (10Gb/?s, 20-Pin Key-A Header), 2x USB-A 3.0 (5Gb/?s), 1x 3.5mm jack (Line-In/?Out)
PCI-slots
9 (2x Riser Card)
Fan(s) (front)
1x 120mm or 3x 120mm (optional) or 2x 140mm (optional)
Fan(s) (rear)
1x 120mm
Fans (left)
not available
Fans right
3x 120mm (optional)
Fan(s) (top)
3x 120mm (optional) or 2x 140mm (optional)
Fan(s) (bottom)
not available
Fans (other)
not available
radiator sizes
120/?140/?240/?280/?360mm front, 120/?140/?240/?280/?360mm top, 120mm rear, 120/?140/?240/?280/?360mm right
Motherboard
to ATX (277mm wide)
Supported motherboards
Mini-ITX (6.7"x6.7")/µATX (9.6"x9.6")/ATX (12"x9.6")/E-ATX (12"x10.9")
Power supply
ATX (max. 225mm deep)
Power supply position
bottom
CPU Coolers
max. 170mm height
Graphics Cards
max. 420mm
Colour
black, inside black
Lighting
without Illumination
Dimensions (WxHxD)
245x520x520mm
Capacity
66.25l
Weight
13.84kg
Type
Midi-Tower
front
Mesh, dust filter inside
above
partially closed, mainly fan grill, dust filter outdoor
below
partially closed, fan grill, dust filter outdoor

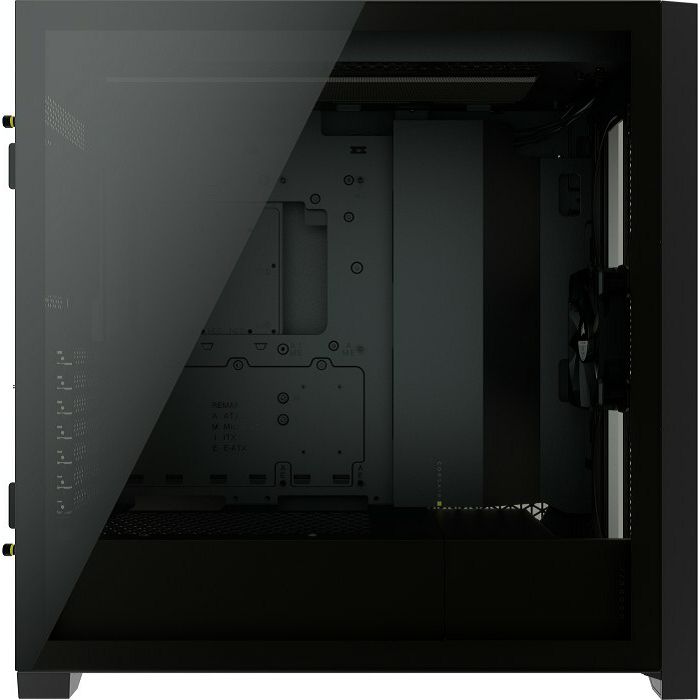

left
closed, glass
right
partially closed, fan grill front
aft
partially closed, fan grill right top, PCI slots (7x horizontal, 2x vertical)

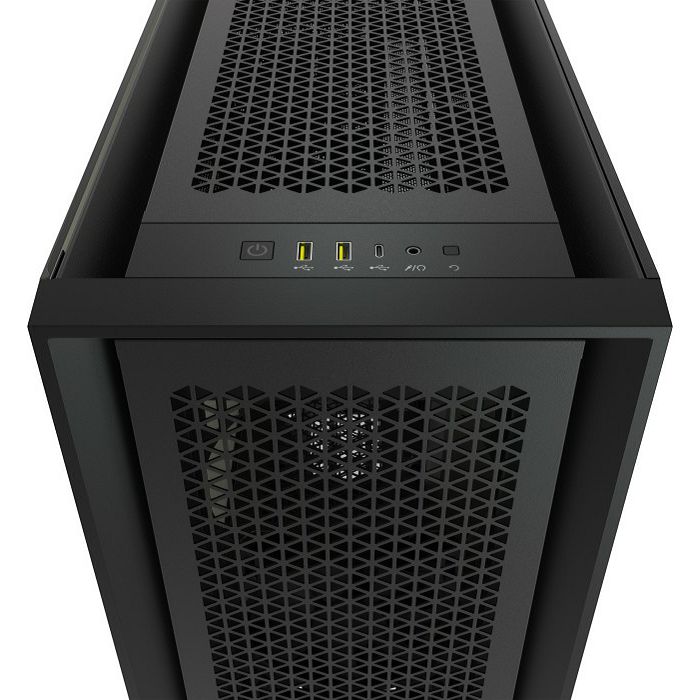

front I/O position
Housing side: top, Height: front, position: centered
Special features
incl. fan control, Cable Management, dust filter, graphics card vertical mountable, side panel window made out of glass
note to E-ATX
Mainboard and case manufacturers refer to different dimensions as E-ATX. E-ATX/SSI EEB mainboard dimensions of 305x330mm respectively 12"x13" are not supported.
