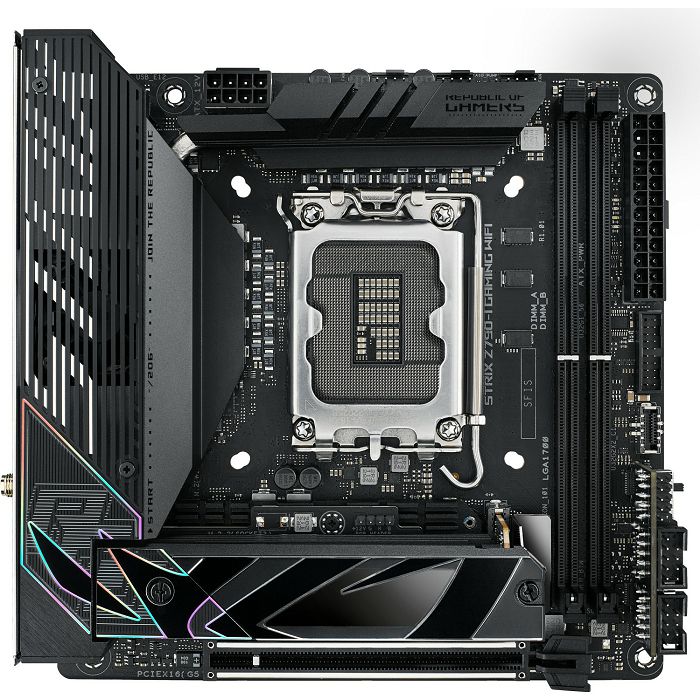

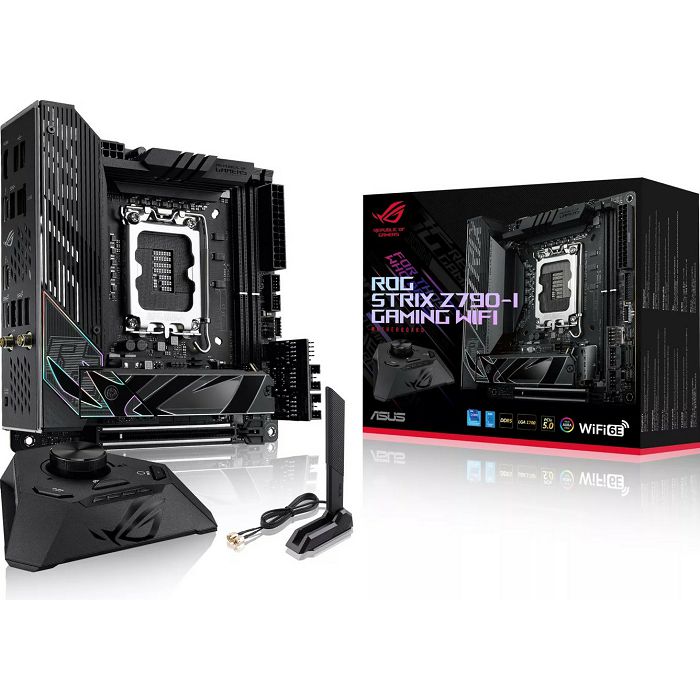

ASUS Z790 ROG STRIX Z790-I GAMING WIFI, DDR5 , s1700, 90MB1CM0-M0EAY0

Shape factor Mini-ITX
Socket Intel 1700
chipset Intel Z790
CPU-Compatibility Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 2x DDR5 DIMM, dual PC5-60800U/DDR5-7600 (OC), max. 96GB (UDIMM)
Extension slots 1x PCIe 5.0 x16, 1x M.2/M-Key (PCIe 5.0 x4 or PCIe 4.0 x4, 2280), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/E-Key (Intel CNVi, 2230, occupied with WiFi+BT module)

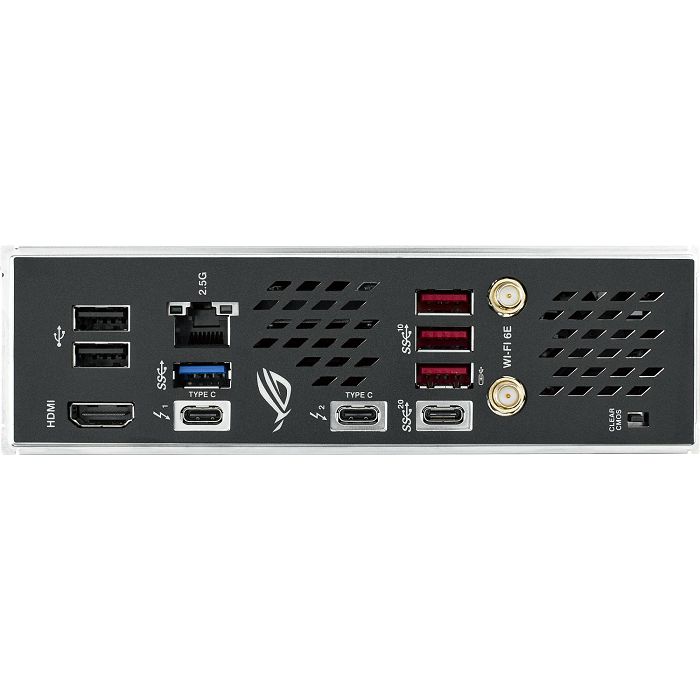

external connectors 1x HDMI 2.1 (iGPU), 2x Thunderbolt 4 (40Gb/s, Intel JHL8540, iGPU), 1x USB-C 3.1 (20Gb/s), 3x USB-A 3.1 (10Gb/s), 1x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Intel I226-V), 2x antenna connector (RP-SMA)
Internal connectors 1x USB-C 3.2 Key-A Header (20Gb/s), 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0, via adapter ROG FPS-II Card), 2x SATA 6Gb/s (Z790, via adapter ROG FPS-II Card)
external Extension ASUS ROG STRIX HIVE, Interface: 1x USB-C 3.1 (10Gb/s), Functions: volume control, 1x USB-C 3.1 (10Gb/s), 1x USB-A 2.0 (480Mb/s), USB BIOS Flashback, FlexKey-Button, Diagnostic LED (LED indicators), 2x jack, 1x toslink (via jack)
Header Cooling 1x CPU fan 4-Pin, 1x fan 4-Pin, 1x AIO-pump 4-Pin, 1x Thermal-sensor
Header Lighting 1x 4-Pin RGB (+12V/G/R/B, max. 3A), 1x 3-Pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
buttons/Switches clear-CMOS-Button (external)
Audio 7.1 (Realtek ALC4050), DAC (ESS SABRE9260Q), DTS Sound Unbound
Graphics iGPU
Wireless Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2), Bluetooth 5.3
RAID level 0/1/5/10 (Z790)
Power connections 1x 24-Pin ATX, 1x 8-Pin EPS12V
VRM 11 virtual phases (10+1), 11 real phases (10+1), PWM-Controller: RAA229131 (max. 20 phases)
MOSFETs CPU 10x 105A RAA200105
MOSFETs SoC 1x
BIOS 1x 32MB (256Mb)
Special features audio+solid capacitors, I/O-shield integrated, 2x M.2-passive cooler, VRM-fan, onboard TPM 2.0 support (Intel PTT)
