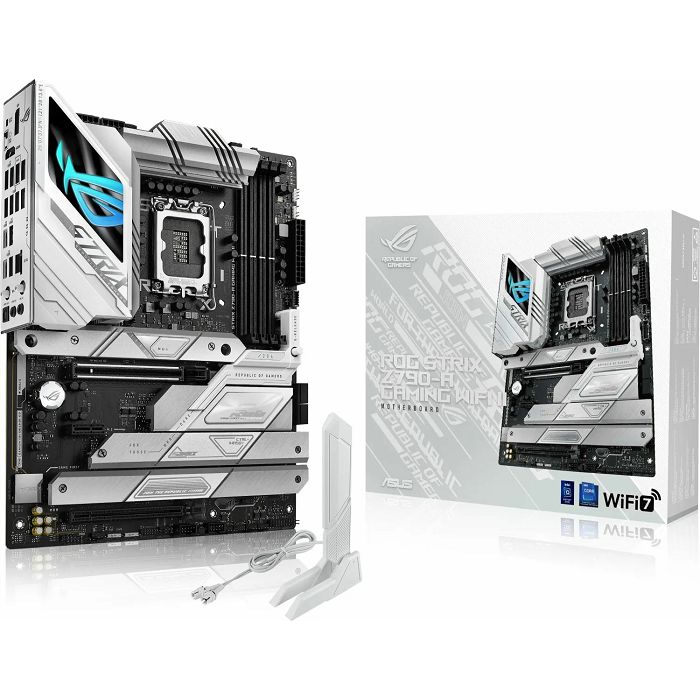

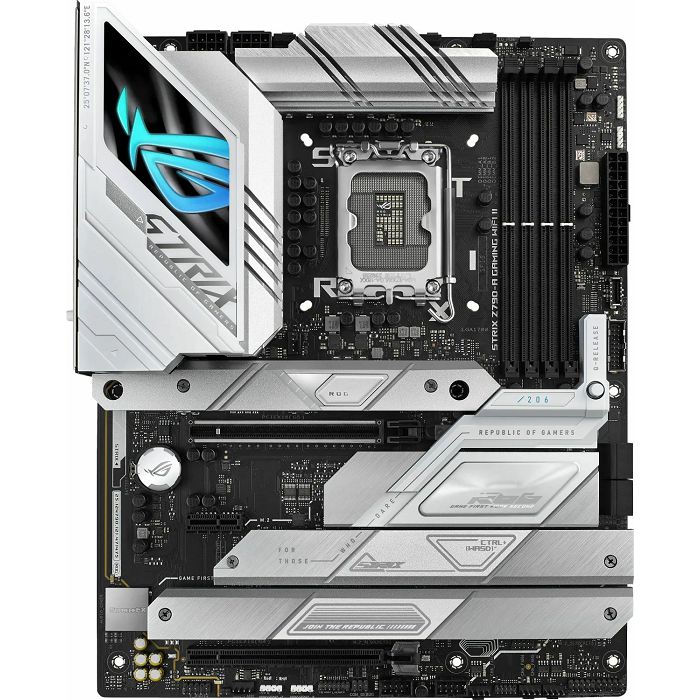

ASUS Z790 ROG STRIX Z790-A GAMING WIFI II, DDR5 , Intel s1700, 90MB1FN0-M0EAY0

Form factor ATX
Plinth Intel 1700
Chipset Intel Z790
CPU Compatibility Core i-14000, Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 4x DDR5 DIMM, dual PC5-64000U/DDR5-8000 (OC), max. 192GB (UDIMM)
Expansion Slots 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242), 2x M.2/M-Key (PCIe 4.0 x4, 2280), 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280/2260/2242), 1x M.2/E-Key (Intel CNVi, 2230, occupied with WiFi+BT module)
External connections 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 (20Gb/s), 1x USB-C 3.1 (10Gb/s), 2x USB-A 3.1 (10Gb/s), 4x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Intel I226-V), 2x jack, 1x Toslink, 2x antenna connector RP-SMA proprietary
Internal connections 1x USB-C 3.2 Key-A header (20Gb/s, PD, max. 30W), 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (Z790), 1x Thunderbolt header 13-pin (14-1), 1x chassis intrusion header
Header Cooling 2x CPU fan 4-pin, 5x fan 4-pin, 1x AIO pump 4-pin, 1x thermal sensor
Header Lighting 1x 4-pin RGB (+12V/G/R/B, max. 3A), 3x 3-pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
Buttons/Switches USB BIOS Flashback (external), Clear CMOS button (external)
Audio 7.1 (Realtek ALC4080, ASUS SupremeFX), AMP (Savitech SV3H712), DTS Sound Unbound
Graphic iGPU
Wireless Wi-Fi 7 (WLAN 802.11a/b/g/n/ac/ax/be, 2x2, Intel BE200), Bluetooth 5.4
RAID Level 0/1/5/10 (Z790)
Power connections 1x 24-pin ATX, 2x 8-pin EPS12V
VRM 17 virtual phases (16+1), 9 real phases (8+1), PWM controller: ASP2100R (RT3628AE, max. 9 phases)
MOSFETs CPU (VCORE) 16x 70A MP86992
MOSFETs SoC (VCCGT) 1x 70A MP86992
Lighting RGB, 1 Zone (I/O Cover)
BIOS 1x 32MB (256Mb)
Particularities Audio+solid capacitors, Diagnostic LED (LED indicators), 5x M.2 passive cooler, integrated I/O panel, Onboard TPM 2.0 support (Intel PTT), White Build compatible (PCB primary black)
