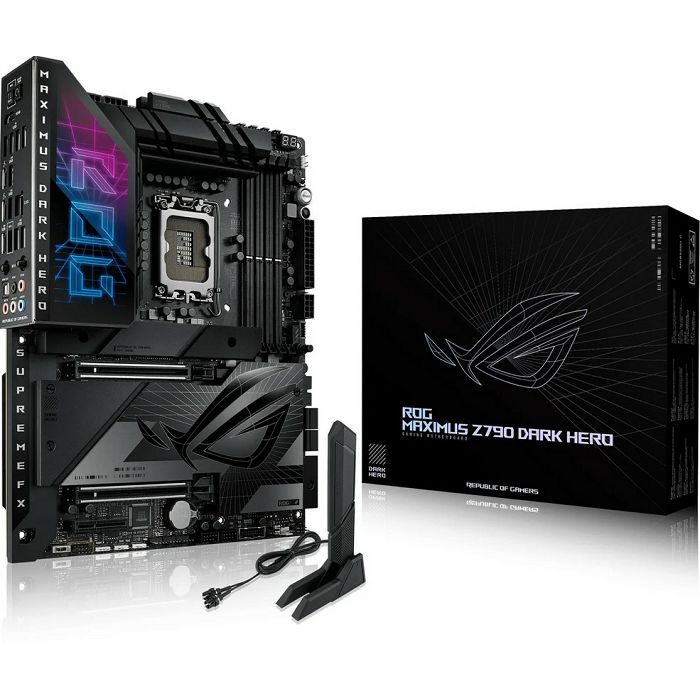

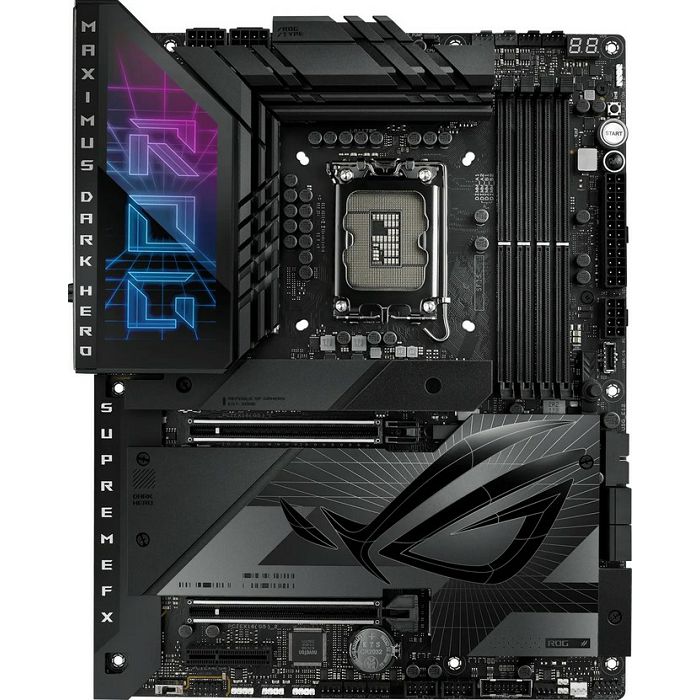

ASUS Z790 ROG Maximus Z790 Dark Hero, DDR5, s1700, 90MB1F90-M0EAY0

Shape factor ATX
Socket Intel 1700
chipset Intel Z790
CPU-Compatibility Core i-14000, Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 4x DDR5 DIMM, dual PC5-64000U/DDR5-8000 (OC), max. 192GB (UDIMM)
Extension slots 2x PCIe 5.0 x16 (1x x16, 1x x8), 1x PCIe 4.0 x4, 1x M.2/M-Key (PCIe 5.0 x4, 22110/2280/2260/2242), 2x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 2x M.2/M-Key (PCIe 4.0 x4, 2280), 1x M.2/E-Key (Intel CNVi, 2230, occupied with WiFi+BT module)

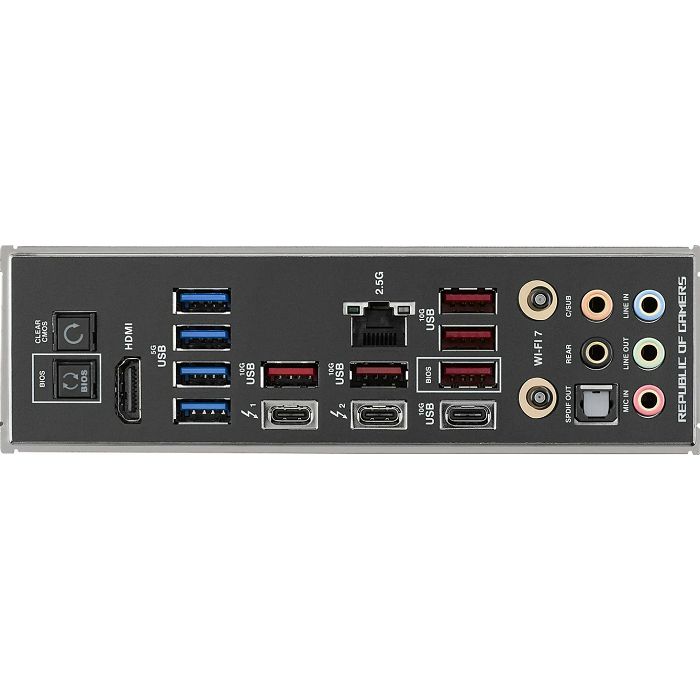

external connectors 1x HDMI 2.1 (iGPU), 2x Thunderbolt 4 (40Gb/s, Intel JHL8540, iGPU), 1x USB-C 3.1 (10Gb/s), 5x USB-A 3.1 (10Gb/s), 4x USB-A 3.0 (5Gb/s), 1x 2.5GBase-T (Intel I226-V), 5x jack, 1x toslink, 2x antenna connector RP-SMA proprietary
Internal connectors 1x USB-C 3.2 Key-A Header (20Gb/s, PD, max. 60W, QC4+), 2x USB 3.0 Header (5Gb/s, 4x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (Z790)
Header Cooling 2x CPU fan 4-Pin, 4x fan 4-Pin, 1x AIO-pump 4-Pin, 1x pump 4-Pin, 1x Thermal-sensor, 1x flow rate-sensor
Header Lighting 1x 4-Pin RGB (+12V/G/R/B, max. 3A), 3x 3-Pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
buttons/Switches USB BIOS Flashback (external), clear-CMOS-Button (external), Power-Button (internal), Retry-Button (internal), FlexKey-Button (internal), Alternative PCIe Mode switch (internal)
Audio 7.1 (Realtek ALC4082, ASUS SupremeFX), DAC (ESS ES9218), DTS Sound Unbound
Graphics iGPU
Wireless Wi-Fi 7 (WLAN 802.11a/b/g/n/ac/ax/be, 2x2, Intel BE200), Bluetooth 5.4
RAID level 0/1/5/10 (Z790)
Power connections 1x 24-Pin ATX, 2x 8-Pin EPS12V, 1x 8-Pin PCIe
VRM 21 virtual phases (20+1), 11 real phases (10+1), PWM-Controller: RAA229131 (max. 20 phases)
MOSFETs CPU (VCORE) 20x 90A ISL99390
MOSFETs SoC (VCCGT) 1x 90A ISL99390
Lighting RGB, 1 zone (I/O cover)
BIOS 1x 32MB (256Mb)
Special features audio+solid capacitors, Diagnostic LED (segment indication), Diagnostic LED (LED indicators), 5x M.2-passive cooler, I/O-shield integrated, Backplate, onboard TPM 2.0 support (Intel PTT)
