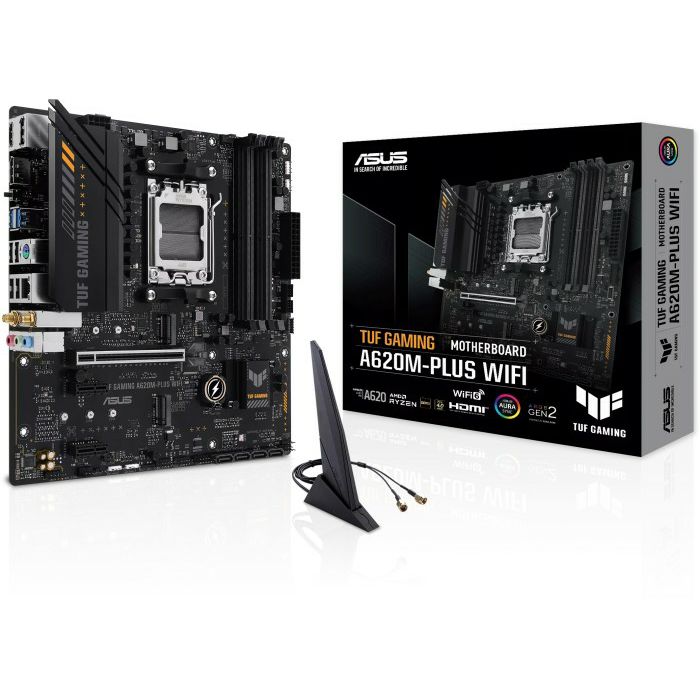

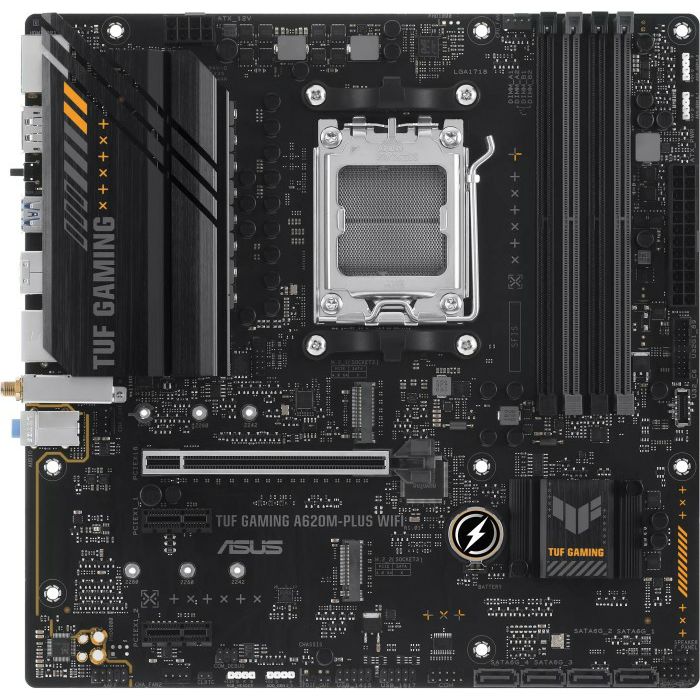

ASUS TUF Gaming A620M-Plus WiFi, AMD A620, All TDP, AM5, DDR5, 90MB1F00-M0EAY0

!!! Without TDP restriction (check manufacturer list) !!!

Form factor µATX
Plinth AMD AM5
Chipset AMD A620
CPU Compatibility Ryzen 7000
RAM 4x DDR5 DIMM, dual PC5-51200U/DDR5-6400 (OC), max. 128GB (UDIMM)
Expansion slots 1x PCIe 4.0 x16, 2x PCIe 3.0 x1, 2x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/E-Key (PCIe, 2230, assigned with WiFi+BT module)

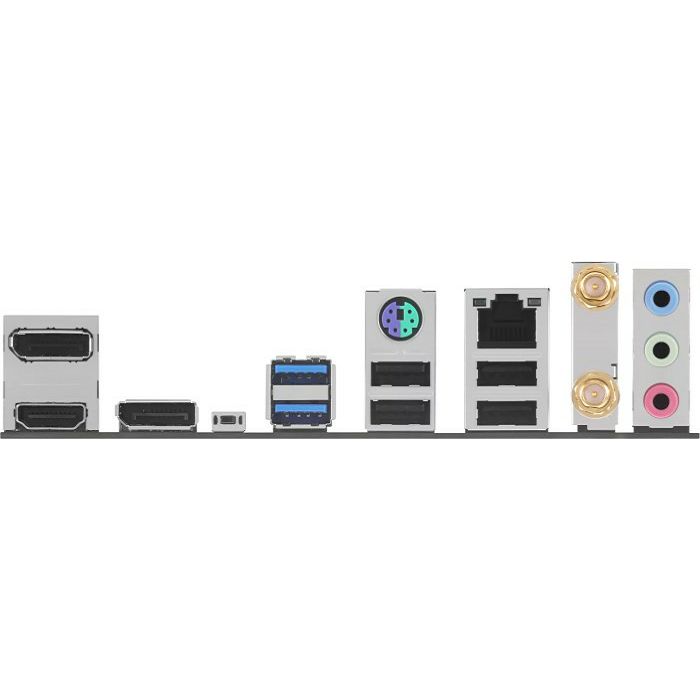

External connections 1x HDMI 2.1 (iGPU), 2x DisplayPort 1.4 (iGPU), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek), 3x jack, 1x PS/2 combo, 2x antenna connector (RP-SMA)
Internal connections 1x USB-C 3.0 Key-A header (5Gb/s), 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (A620), 1x serial, 1x COM debug header, 1x speaker header
Header Cooling 1x CPU fan 4-pin, 2x fan 4-pin
Header Lighting 1x 4-pin RGB (+12V/G/R/B, max. 3A), 3x 3-pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
Buttons/Switches USB BIOS Flashback (external)
Audio 7.1 (Realtek)
Graphic iGPU
Wireless Wi-Fi 6 (Wi-Fi 802.11a/b/g/n/ac/ax, 1x1), Bluetooth 5.3
RAID Level 0/1/10 (A620)
Electricity connections 1x 24-pin ATX, 1x 8-pin EPS12V
VRM 8 virtual phases (6+2), 5 real phases (3+2), PWM controller: ASP2208
MOSFETs CPU 6x 46A 4C10B/4C06B
MOSFETs SoC 4x 46A 4C10B/4C06B
Lighting N/A
BIOS 1x 32MB (256Mb)
Particularities Audio+solid capacitors, onboard TPM 2.0 support (AMD fTPM), ECC support
