ASUS RTX4070 TUF-RTX4070S-O12G-GAMING, 12GB, GDDR6X, 90YV0K80-M0NA00

GPU NVIDIA GeForce RTX 4070 SUPER
Memory 12GB GDDR6X, 192bit, 21Gbps, 1313MHz, 504GB/s
Clock Base 1920MHz (Standard Profile), 1920MHz (OC Profile)
Clock Boost 2565MHz (Standard Profile), 2595MHz (OC Profile)
Overclocking +120MHz Boost (OC Profile), +90MHz Boost (Standard Profile)

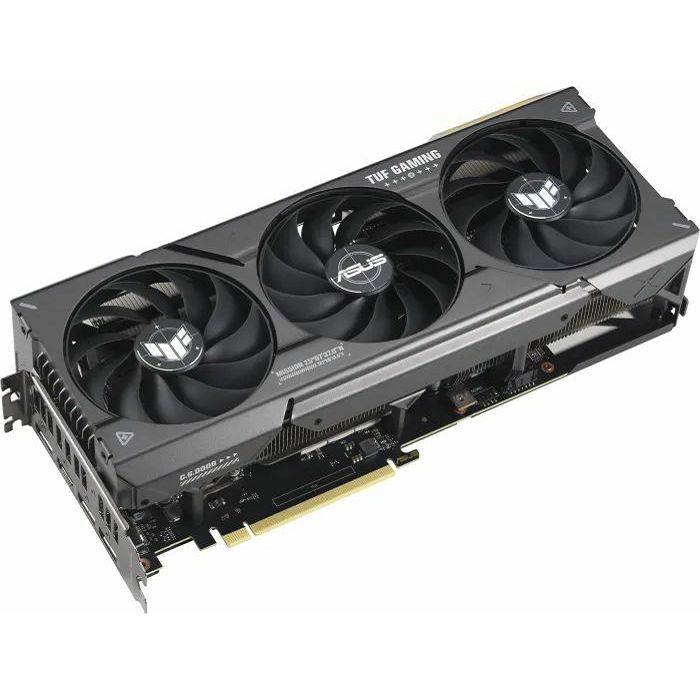

Cooling 3x axial fans (95mm) with 0dB zero-fan mode
TDP/TGP 225W (NVIDIA)
Power connections 1x 16-pin PCIe 5.0

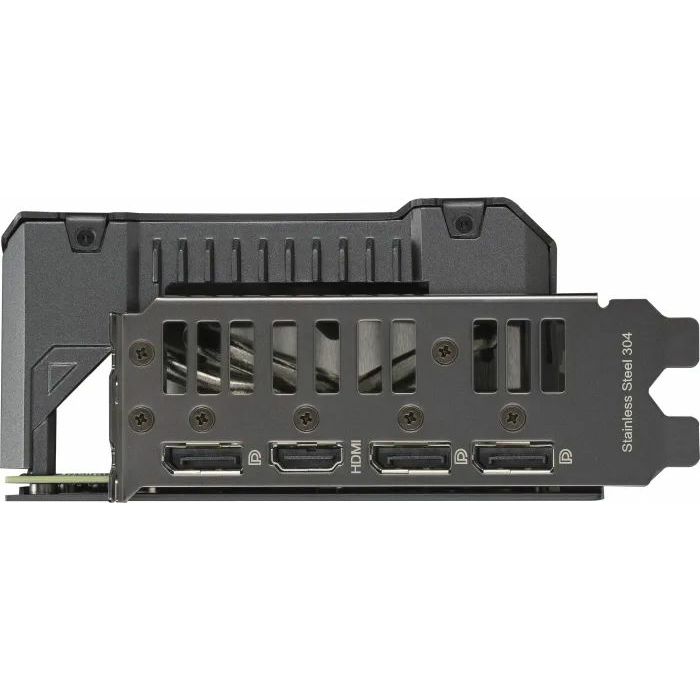

Connections 1x HDMI 2.1a, 3x DisplayPort 1.4a
Connection PCIe 4.0 x16
Particularities Clock Profiles (Default Mode/OC Mode), LED Lighting (RGB), Backplate, Graphics Card Holder (ASUS TUF Graphics Card Holder)
Overall depth Quad Slot (3.15 Slots)
Dimensions 301x139x63mm (LxWxH)
Construction PCIe card (full height)
Slot bezel full height
Computing power 37.2 TFLOPS (FP16), 37.2 TFLOPS (FP32), 0.58 TFLOPS (FP64)
Chip Data
Chip Architecture Ada Lovelace (from 2022/Q3)
Chip Designation AD104-350-A1
Chip Configuration 56SM (7168SP / 224TMU / 80ROP), 56 RT Cores, 224 Tensor Cores, 48MB L2 cache
Chip Manufacturing TSMC 5nm "NVIDIA 4N"
Chip Size 294mm2, monolithic, 35.8 billion transistors
Chip Functions Ray tracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen), HDCP 2.3
API support DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
Transcoding Engine 1x NVENC (8th Gen, max. sessions: 8), 1x NVDEC (5th Gen), Info
Encoding AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
Decoding AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
