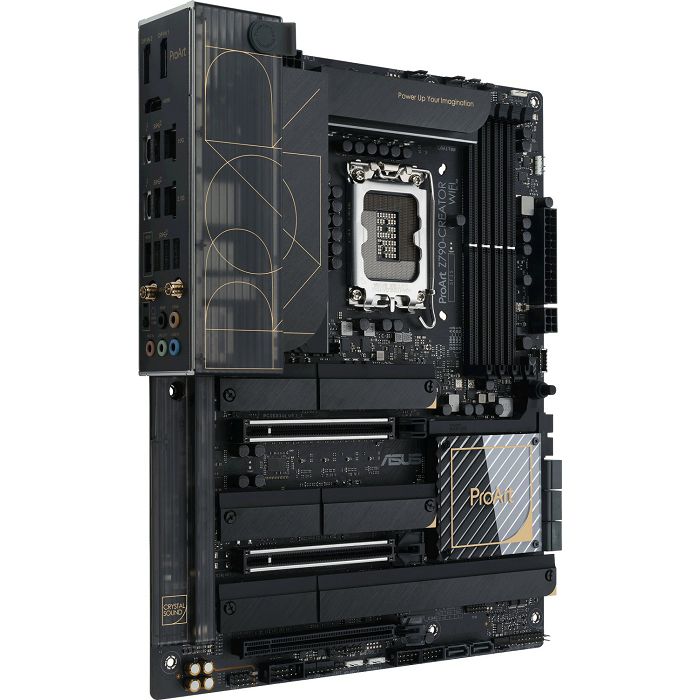

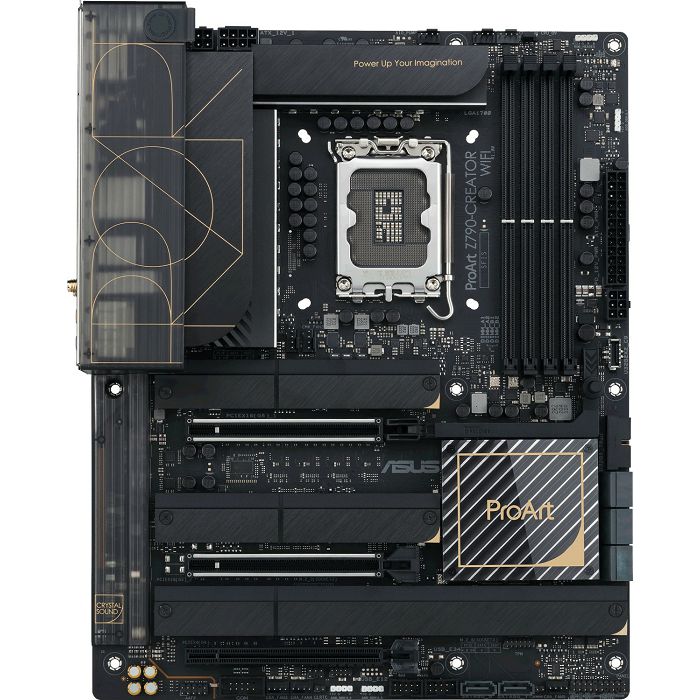

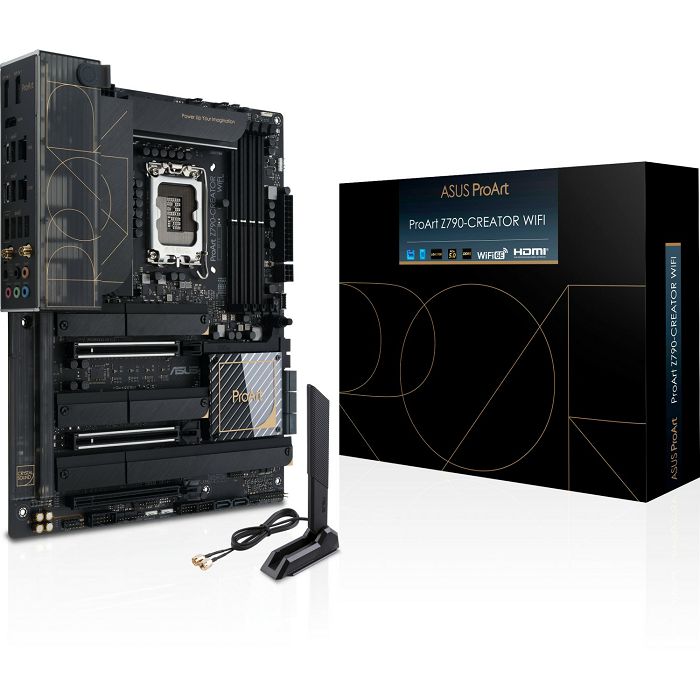

ASUS ProART Z790-CREATOR WIFI, s.1700,Intel, DDR5, 90MB1DV0-M0EAY0

shape factor
ATX
Socket
Intel 1700
chipset
Intel Z790
CPU-Compatibility
Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM
4x DDR5 DIMM, dual PC5-57600U/DDR5-7200 (OC), max. 128GB (UDIMM)
Extension slots
2x PCIe 5.0 x16 (1x x16, 1x x8), 1x PCIe 4.0 x16 (x4), 2x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280/2260/2242), 1x M.2/E-Key (PCIe/Intel CNVi, 2230, occupied with WiFi+BT module)
external connectors
1x HDMI 2.1 (iGPU), 2x Thunderbolt 4 (40Gb/s, Intel JHL8540, iGPU), 6x USB-A 3.1 (10Gb/s), 1x 10GBase-T (Marvell AQtion), 1x 2.5GBase-T (Intel I225-V), 5x jack, 2x DisplayPort-In 1.4, 2x antenna connector (RP-SMA)
Internal connectors
1x USB-C 3.2 Key-A Header (20Gb/s, PD, max. 60W, QC4+), 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 8x SATA 6Gb/s (Z790), 1x serial, 1x TPM-Header, 1x Chassis Intrusion-Header
Header Cooling
2x CPU fan 4-Pin, 5x fan 4-Pin, 1x AIO-pump 4-Pin, 1x Thermal-sensor
Header Lighting
1x 4-Pin RGB (+12V/G/R/B, max. 3A), 3x 3-Pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
buttons/Switches
clear-CMOS-Button (internal), USB BIOS Flashback (external)
Audio
7.1 (Realtek ALC1220)
Graphics
iGPU
Wireless
Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2), Bluetooth 5.3
RAID level
0/1/5/10 (Z790)
Multi-GPU
not available
Power connections
1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
VRM
17 virtual phases (16+1)
MOSFETs CPU
16x 70A
MOSFETs SoC
1x 70A
Lighting
not available
BIOS
1x 32MB (256Mb)
Special features
audio+solid capacitors, Diagnostic LED (LED indicators), 4x M.2-passive cooler, I/O-shield integrated, onboard TPM 2.0 support (Intel PTT)
