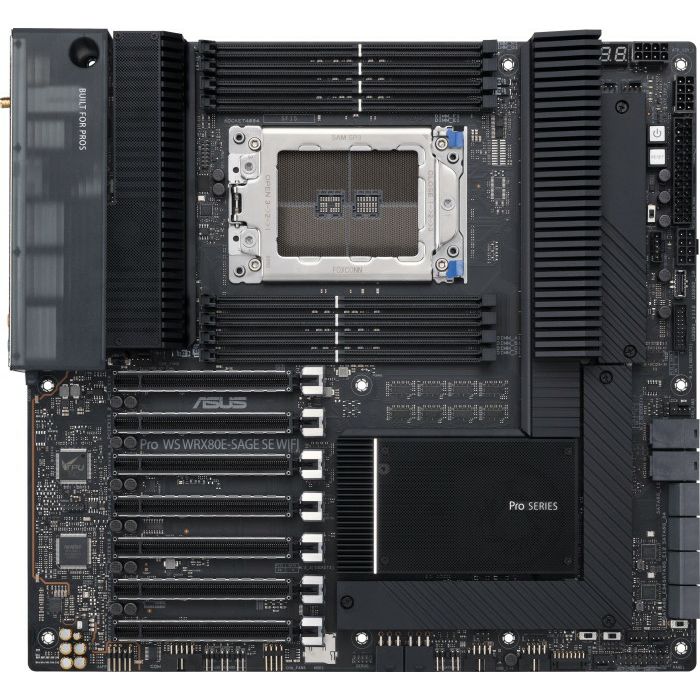

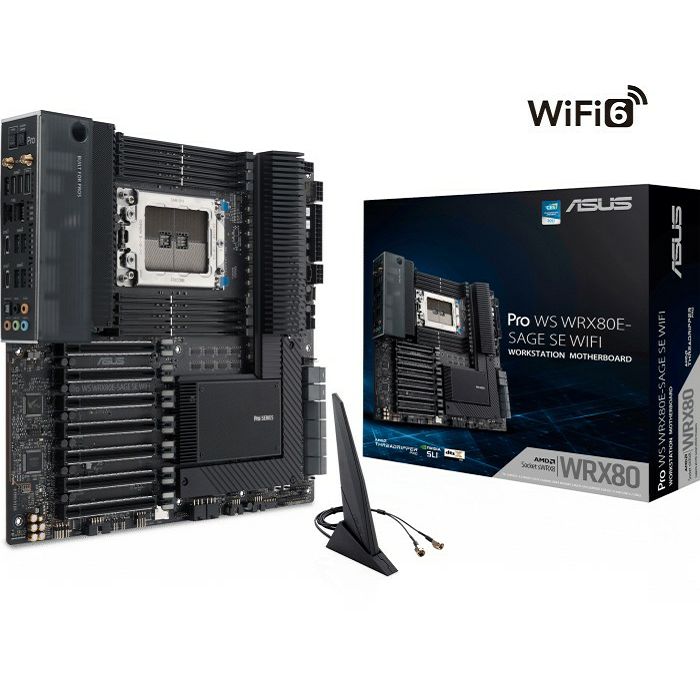

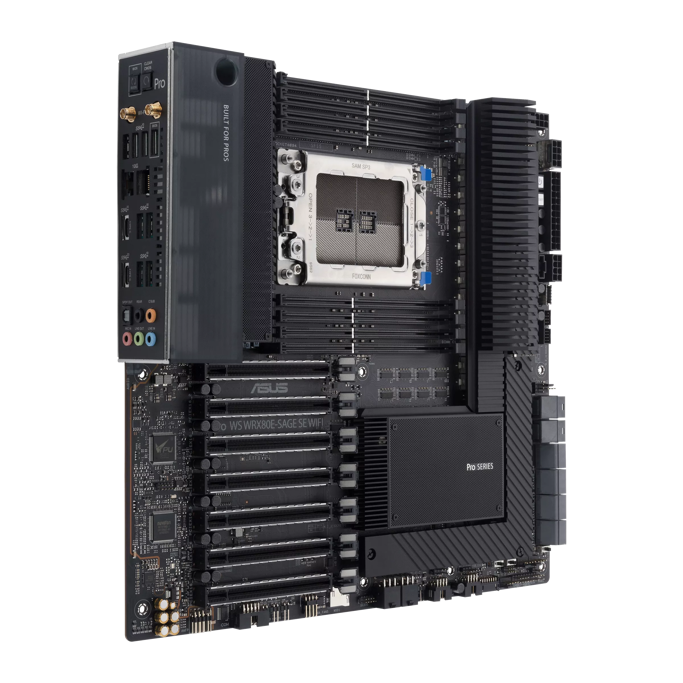

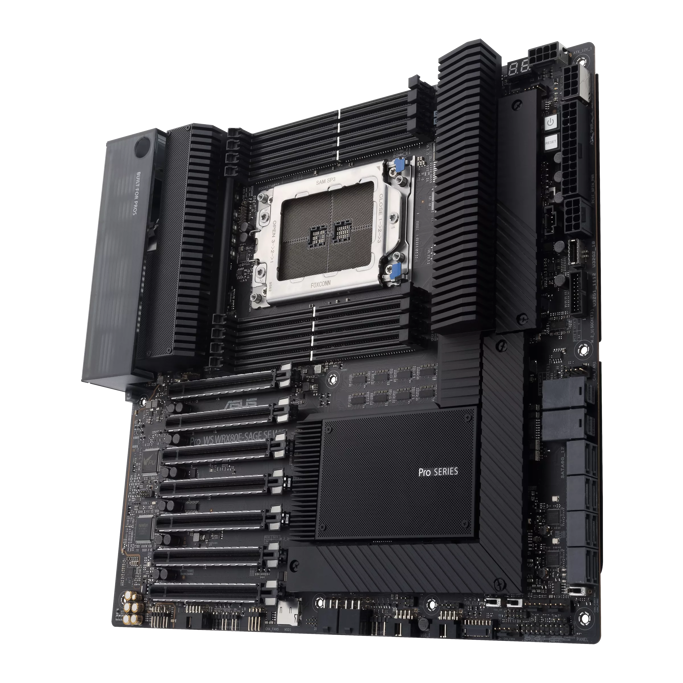

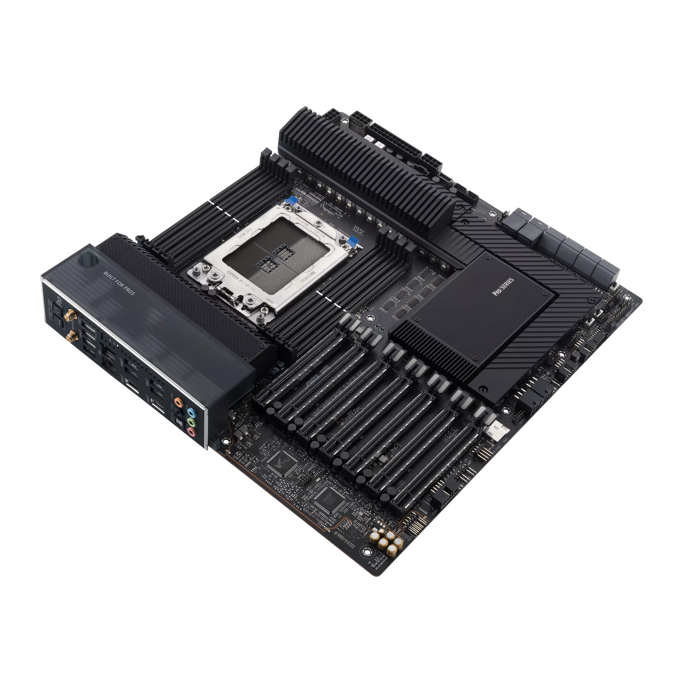

ASUS Pro WS WRX80E-SAGE SE WIFI, AMD WRX80, 90MB1590-M0EAY0

Shape factor E-ATX (SSI EEB)
Socket AMD sWRX8
chipset AMD WRX80
CPU-Compatibility Ryzen Threadripper PRO 3000, without TDP limitation (Manufacturer-list)
VRM 16 virtual phases
MOSFETs CPU unknown
MOSFETs SoC unknown
RAM 8x DDR4 DIMM, octa PC4-25600U/DDR4-3200, max. 256GB (UDIMM), 2TB (RDIMM), 2TB (3DS RDIMM)
Extension slots 7x PCIe 4.0 x16, 2x M.2/M-Key (PCIe 4.0 x4/SATA, 22110/2280/2260/2242, CPU), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 22110/2280/2260/2242, WRX80), 2x SFF-8643/U.2/Mini-SAS (PCIe 4.0 x4, WRX80)

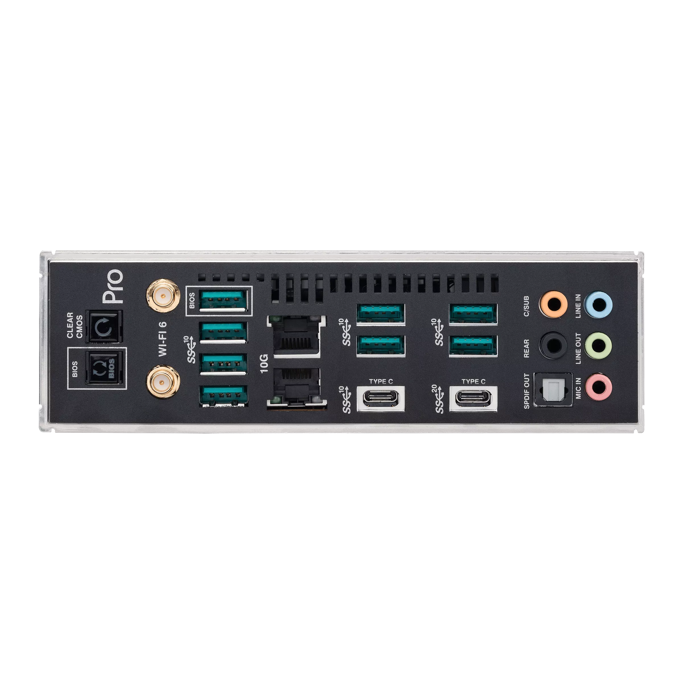

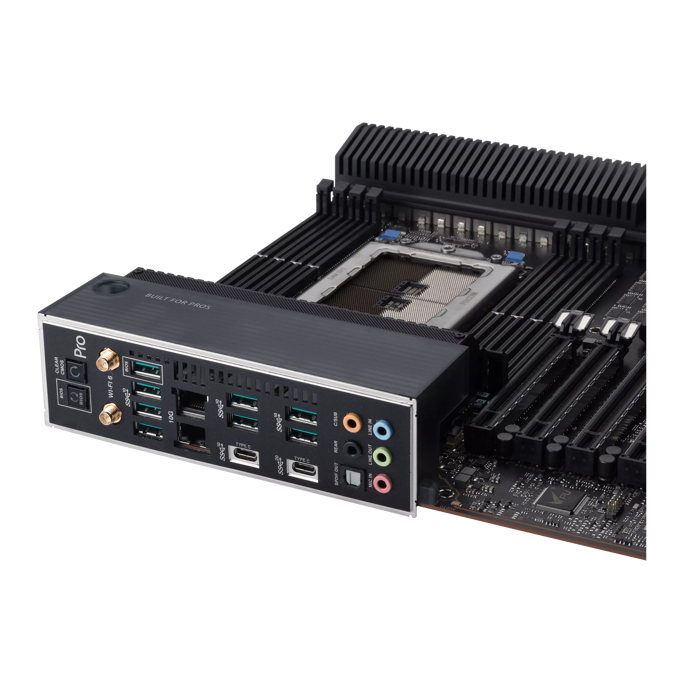

external connectors 1x USB-C 3.2 (20Gb/s, ASM3242), 1x USB-C 3.1 (10Gb/s), 8x USB-A 3.1 (10Gb/s), 2x 10GBase-T (Intel X550-AT2), 5x jack, 1x toslink

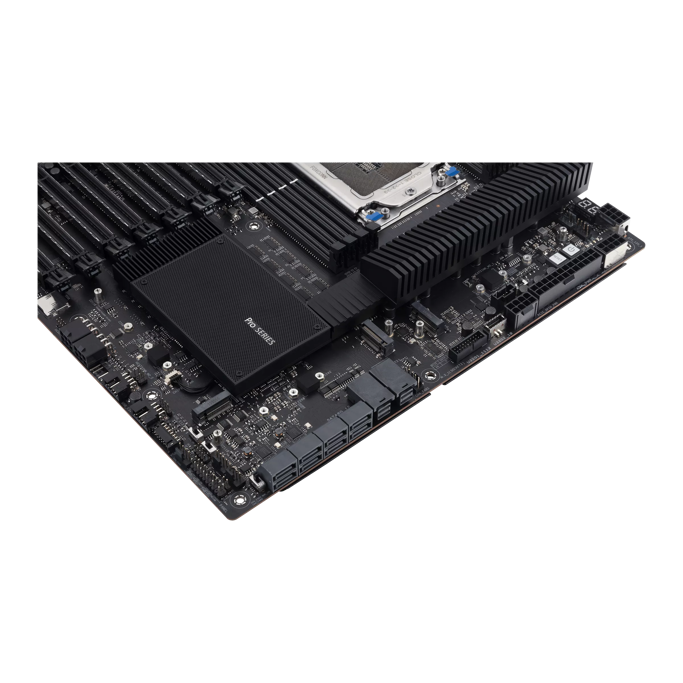

Internal connectors 1x USB-C 3.1 Key-A Header (10Gb/s), 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (WRX80), 4x SATA 6Gb/s (ASM1061), 1x serial, 1x TPM-Header, 1x VGA-Header, 1x I2C-Header, 1x SMBUS-Header, 1x RTC-Header, 1x Location Button Header, 2x LAN-LED-Header, 1x Location-LED-Header, 1x card reader (microSD)
Header Cooling 2x CPU fan 4-Pin, 8x fan 4-Pin, 1x Thermal-sensor
Header Lighting not available
buttons/Switches Power-Button (internal), clear-CMOS-Button (external), FlexKey-Button (internal), USB BIOS Flashback (external), IPMI switch (internal), VGA switch (internal), BMC switch (internal), PSU switch (internal)
Audio 7.1 (Realtek ALC4080), DTS:X Ultra
Graphics not available
Wireless Wi-Fi 6 (WLAN 802.11a/b/g/n/ac/ax, 2x2, Intel AX200), Bluetooth 5.2
RAID level 0/?1/?10 (WRX80)
Multi-GPU NVIDIA 4-Way SLI (x16/x16, x16/x16/x16, x16/x16/x16/x16)
Power connections 1x 24-Pin ATX, 2x 8-Pin EPS12V, 1x 8-Pin PCIe, 2x 6-Pin PCIe
Lighting not available
BIOS 1x 32MB (256Mb)

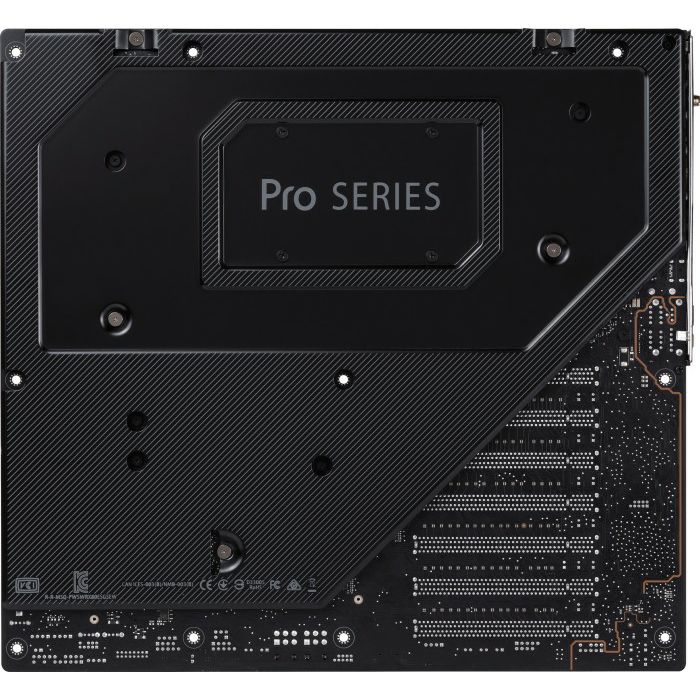

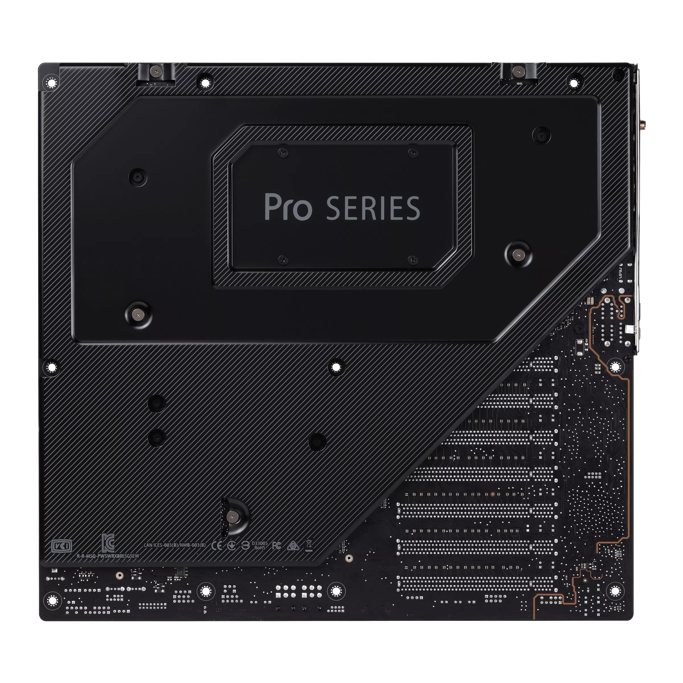

Special features audio+solid capacitors, Diagnostic LED (segment indication), Diagnostic LED (LED indicators), 3x M.2-passive cooler, I/O-shield integrated, Backplate, IPMI 2.0, ECC-support
