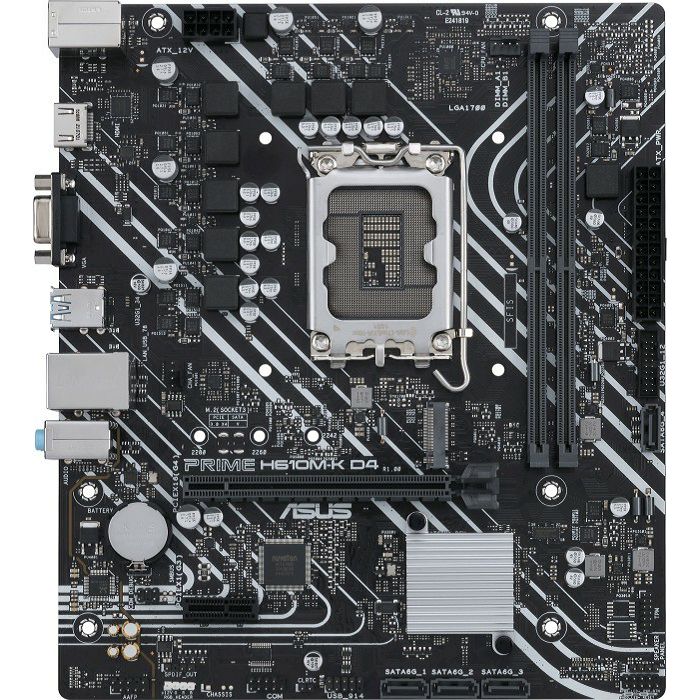

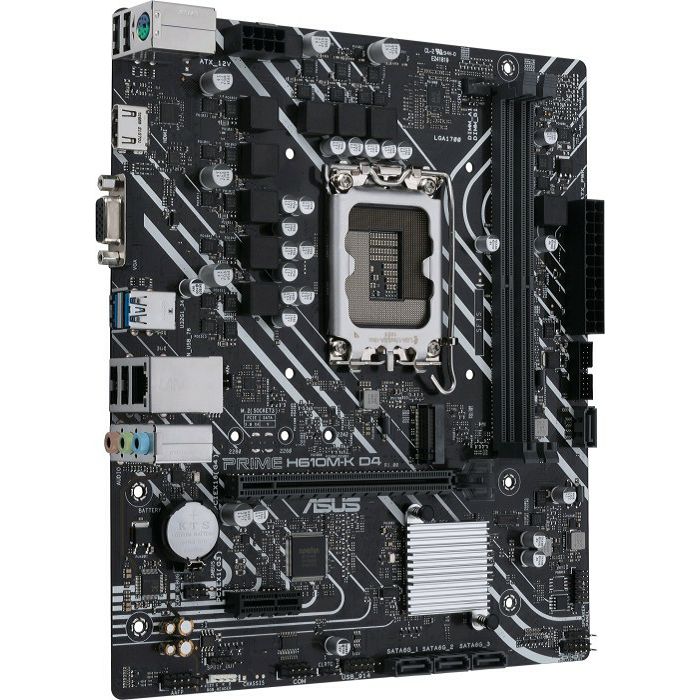

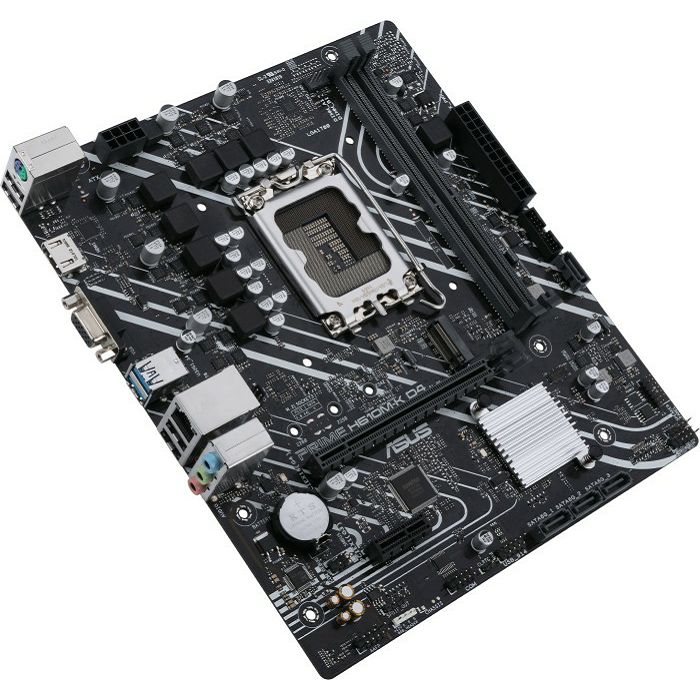

Asus Prime H610M-K D4, DDR4, intel H610, s.1700, 90MB1A10-M0EAY0

shape factor
µATX
Socket
Intel 1700
chipset
Intel H610
CPU-Compatibility
Core i-12000, Pentium Gold G7000, Celeron G6000
RAM
2x DDR4 DIMM, dual PC4-25600U/DDR4-3200, max. 64GB (UDIMM)
Extension slots
1x PCIe 4.0 x16, 1x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 3.0 x4/SATA, 2280/2260/2242)
external connectors
1x VGA (iGPU), 1x HDMI 2.1 (iGPU), 2x USB-A 3.0 (5Gb/s, H610), 4x USB-A 2.0 (480Mb/s), 1x Gb LAN (Realtek), 3x jack, 1x PS/2 Combo
Internal connectors
1x USB 3.0 Header (5Gb/s, 2x USB 3.0, H610), 1x USB 2.0 header (480Mb/s, 2x USB 2.0), 4x SATA 6Gb/s (H610), 1x serial, 1x TPM-Header, 1x S/PDIF-Header, 1x Speaker-Header, 1x COM Debug-Header
Header Cooling
1x CPU fan 4-Pin, 1x fan 4-Pin
Header Lighting
1x 4-Pin RGB (+12V/G/R/B, max. 3A)
buttons/Switches
not available
Audio
7.1 (Realtek)
Graphics
iGPU
Wireless
not available
RAID level
not available
Multi-GPU
not available
Power connections
1x 24-Pin ATX, 1x 8-Pin EPS12V
VRM
7 virtual phases (6+1), 7 real phases (6+1), PWM-Controller: ASP2100 (RT3628AE, max. 9 phases)
MOSFETs CPU
6x 64A SiRA14BDP/SiRA12BDP
MOSFETs SoC
1x 64A SiRA14BDP/2x SiRA12BDP
Lighting
not available
BIOS
1x 16MB (128Mb)
Special features
audio+solid capacitors, onboard TPM 2.0 support (Intel PTT)
