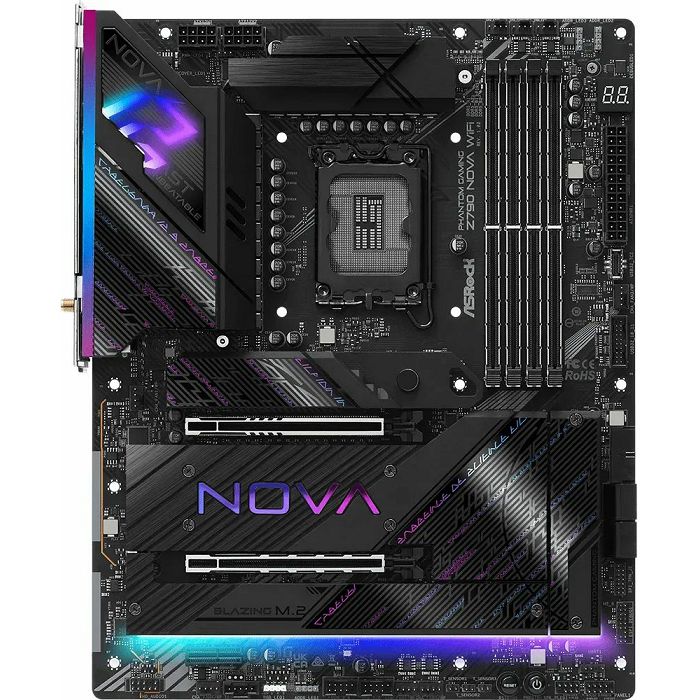

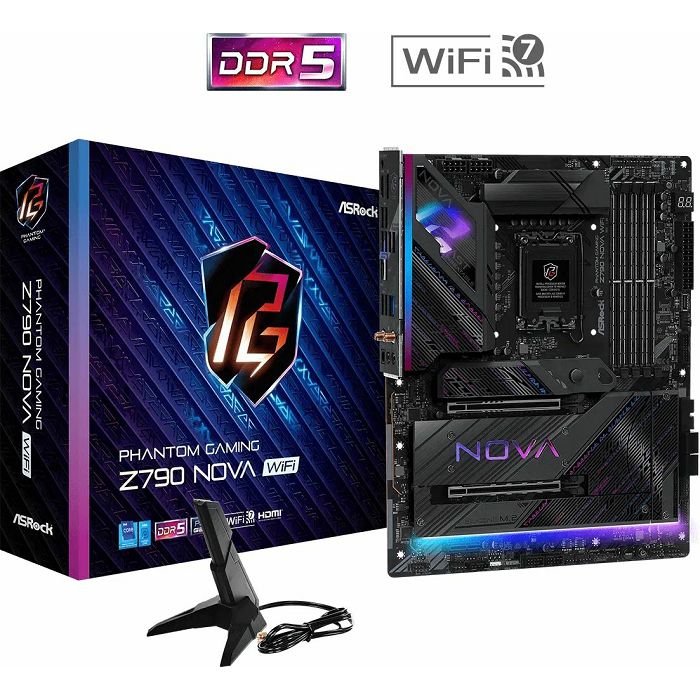

ASRock Z790 NOVA WiFi, DDR5, s1700, 90-MXBMB0-A0UAYZ

Form factor ATX
Plinth Intel 1700
Chipset Intel Z790
CPU Compatibility Core i-14000, Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 4x DDR5 DIMM, dual PC5-64000U/DDR5-8000 (OC), max. 192GB (UDIMM)
Expansion Slots 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 5.0 x4, 2280/2260), 4x M.2/M-Key (PCIe 4.0 x4, 2280/2260), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280/2260), 1x M.2/E-Key (PCIe/Intel CNVi, 2230, assigned to WiFi+BT module)
External connections 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 (20Gb/s), 4x USB-A 3.1 (10Gb/s), 3x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Killer E3100G), 2x jack, 2x antenna connector RP-SMA
Internal connections 1x USB-C 3.2 Key-A header (20Gb/s), 2x USB 3.0 header (5Gb/s, 4x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (Z790), 1x TPM header, 1x Thunderbolt header 5-pin, 1x speaker header
Header Cooling 1x CPU fan 4-pin, 1x CPU fan/pump 4-pin, 5x fan/pump 4-pin, 1x fan 4-pin, 3x thermal sensor
Header Lighting 1x 4-pin RGB (+12V/G/R/B, max. 3A), 3x 3-pin ARGB (+5V/DATA/GND, max. 3A)
Buttons/Switches Power button (internal), Reset button (internal), Clear CMOS button (internal)
Audio 7.1 (Realtek ALC4082)
Grafik iGPU
Wireless Wi-Fi 7 (WLAN 802.11a/?b/?g/?n/?ac/?ax/?be, 2x2, Intel BE200), Bluetooth 5.4
RAID-Level 0/?1/?5/?10 (Z790)
Multi-GPU AMD 2-Way-CrossFireX (x16/?x4)
Stromanschlüsse 1x 24-Pin ATX, 2x 8-Pin EPS12V
VRM 21 virtuelle Phasen (20+1+1)
MOSFETs CPU (VCORE) 20x 90A ISL99390
MOSFETs SoC (VCCGT) 1x 90A ISL9939
MOSFETs AUX (VCCAUX) 1x
Beleuchtung RGB, 2 Zonen (Chipsatz-Kühler, I/?O-Abdeckung)
BIOS 1x 32MB (256Mb)
Besonderheiten Audio+solid capacitors, Diagnostic LED (Segmentanzeige), 5x M.2-Passivkühler, I/?O-Blende integriert, Onboard TPM 2.0 Unterstützung (Intel PTT)
