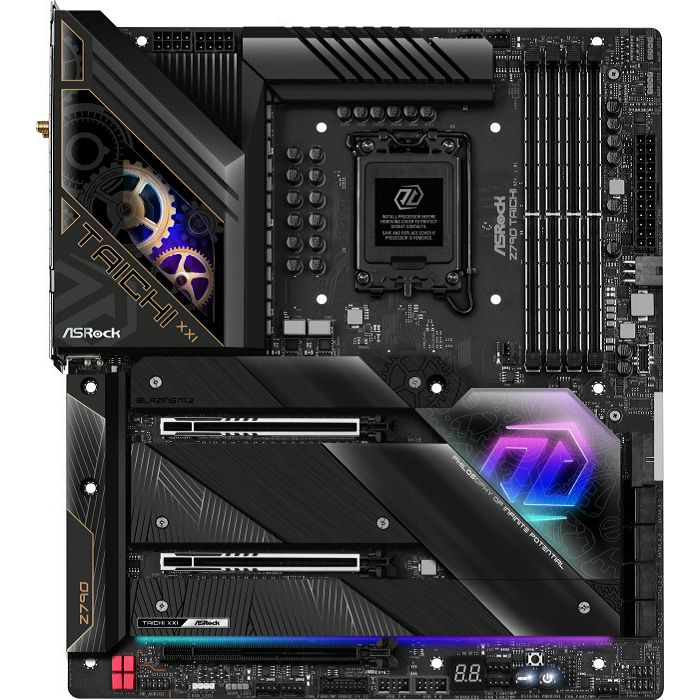

ASRock Z790 Taichi, DDR5, s1700, 90-MXBJD0-A0UAYZ

shape factor
E-ATX (SSI EEB)
Socket
Intel 1700
chipset
Intel Z790
CPU-Compatibility
Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM
4x DDR5 DIMM, dual PC5-56000U/?DDR5-7000 (OC), max. 128GB (UDIMM)
Extension slots
2x PCIe 5.0 x16 (1x x16, 1x x8), 1x PCIe 4.0 x16 (x4), 1x M.2/?M-Key (PCIe 5.0 x4, 2280), 1x M.2/?M-Key (PCIe 4.0 x4, 2280), 3x M.2/?M-Key (PCIe 4.0 x4, 2280/?2260), 1x M.2/?E-Key (PCIe/?Intel CNVi, 2230, occupied with WiFi+BT module)

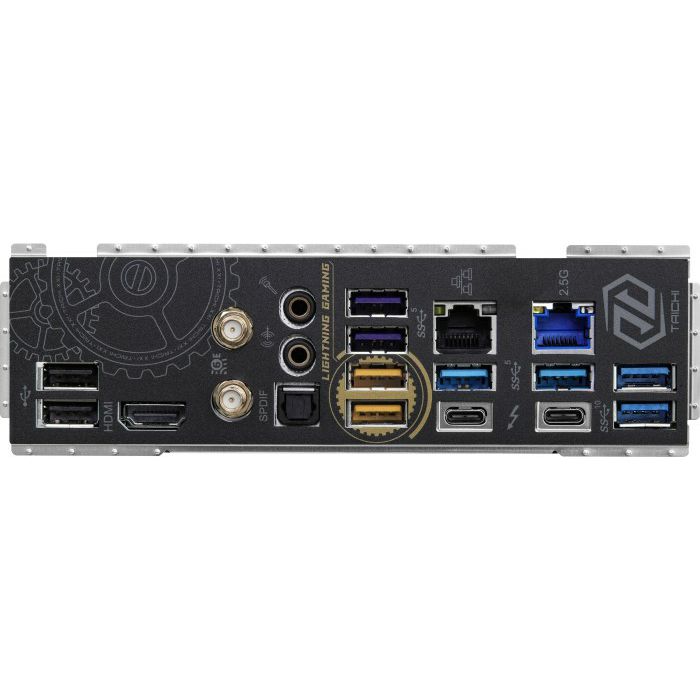

external connectors
1x HDMI 2.1 (iGPU), 2x Thunderbolt 4 (40Gb/?s, Intel JHL8540, iGPU), 2x USB-A 3.1 (10Gb/?s), 6x USB-A 3.0 (5Gb/?s), 2x USB-A 2.0 (480Mb/?s), 1x 2.5GBase-T (Killer E3100G), 1x Gb LAN (Intel I219-V), 2x jack, 1x toslink
Internal connectors
1x USB-C 3.2 Key-A Header (20Gb/?s, PD, max. 60W), 2x USB 3.0 Header (5Gb/?s, 4x USB 3.0), 2x USB 2.0 header (480Mb/?s, 3x USB 2.0), 8x SATA 6Gb/s (Z790), 1x TPM-Header, 1x Speaker-Header
Header Cooling
1x CPU fan 4-Pin, 1x CPU fan/?pump 4-Pin, 6x fan/?pump 4-Pin
Header Lighting
1x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 3x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A)
buttons/Switches
Power-Button (internal), Reset-Button (internal), clear-CMOS-Button (internal)
Audio
5.1 (Realtek ALC4082), DAC (ESS SABRE9218)
Graphics
iGPU
Wireless
Wi-Fi 6E (WLAN 802.11a/?b/?g/?n/?ac/?ax, 2x2, Killer), Bluetooth 5.2
RAID level
0/?1/?5/?10 (Z790)
Multi-GPU
AMD 2-Way-CrossFireX (x8/?x8)
Power connections
1x 24-Pin ATX, 2x 8-Pin EPS12V, 1x 6-Pin PCIe
VRM
25 virtual phases (24+1)
MOSFETs CPU
24x 105A
MOSFETs SoC
1x 105A
Lighting
RGB, 3 zones (chipset cooler, I/?O cover, M.2-cooler)
BIOS
1x 32MB (256Mb)
Special features
audio+solid capacitors, Diagnostic LED (segment indication), 5x M.2-passive cooler, I/?O-shield integrated, onboard TPM 2.0 support (Intel PTT)
