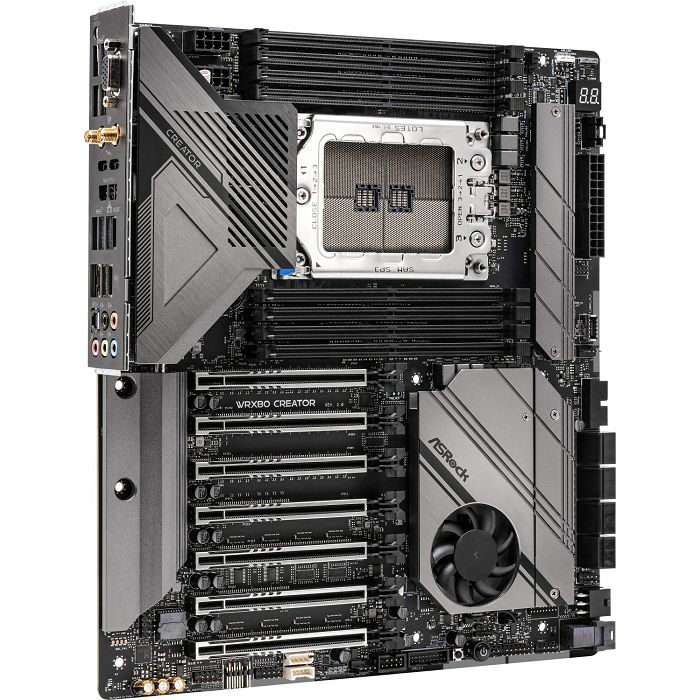

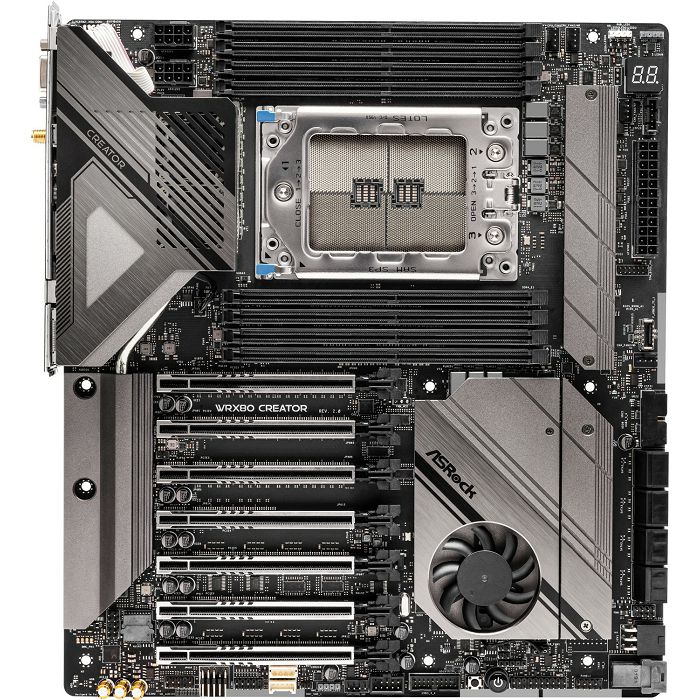

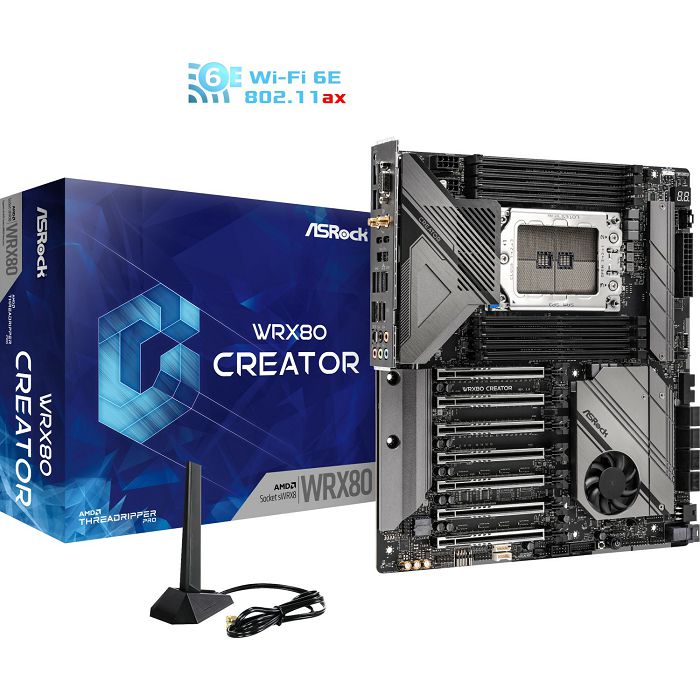

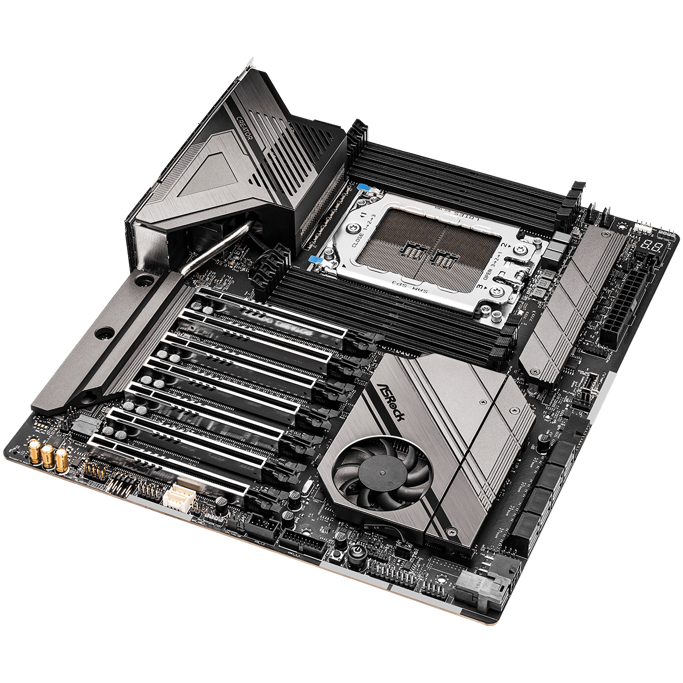

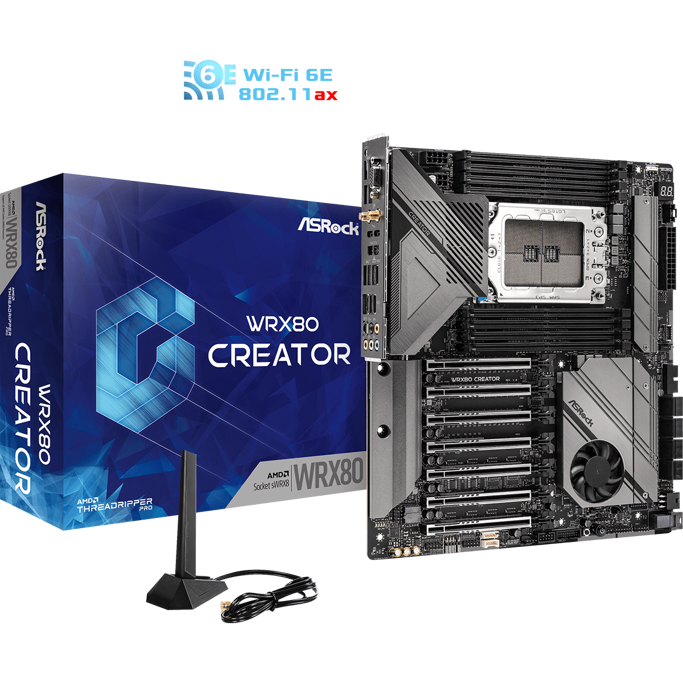

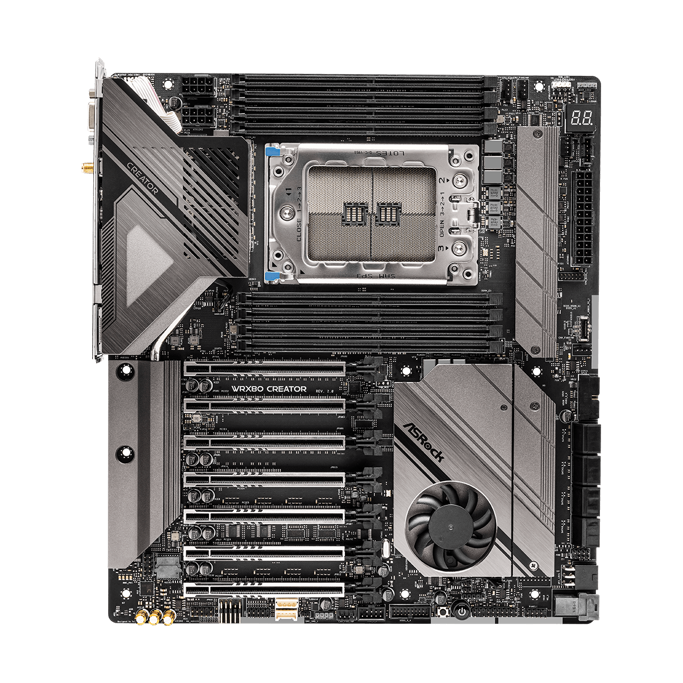

Asrock WRX80 CREATOR WRX8 R2.0 , 8xDDR4 2x10G LAN retail, 90-MXBKH0-A0UAYZ

shape factor
E-ATX (SSI CEB)
Socket
AMD sWRX8
chipset
AMD WRX80
CPU-Compatibility
Ryzen Threadripper PRO 5000, Ryzen Threadripper PRO 3000, without TDP limitation
RAM
8x DDR4 DIMM, octa 36266U/DDR4-4533 (OC), max. 2TB (3DS RDIMM)
Extension slots
7x PCIe 4.0 x16 (5x x16, 2x x8), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 22110/2280/2260), 1x M.2/E-Key (PCIe, 2230, occupied with WiFi+BT module), 1x SFF-8643/U.2/Mini-SAS (PCIe 3.0 x4)
external connectors
1x VGA (AST2500), 2x Thunderbolt 4 (40Gb/s, Intel JHL8540, iGPU), 4x USB-A 3.1 (10Gb/s), 2x USB-A 3.0 (5Gb/s, WRX40), 2x 10GBase-T (Marvell AQtion AQC113CS), 1x management port (RJ-45), 5x jack, 1x toslink, 2x DisplayPort-In (mini DisplayPort), 2x antenna connector (RP-SMA)
Internal connectors
1x USB-C 3.1 Key-A Header (10Gb/s), 2x USB 3.0 Header (5Gb/s, 4x USB 3.0), 1x USB 2.0 header (480Mb/s, 2x USB 2.0), 8x SATA 6Gb/s (WRX80), 1x serial, 1x TPM-Header, 1x Speaker-Header, 1x IPMB-Header, 1x BMC-Header, 1x SMBUS-Header, 1x NMI-Header, 1x Speaker-Header
Header Cooling
1x CPU fan 4-Pin, 1x CPU fan/pump 4-Pin, 3x fan/pump 4-Pin, 2x Thermal-sensor
Header Lighting
1x 4-Pin RGB (+12V/G/R/B, max. 3A), 2x 3-Pin ARGB (+5V/DATA/GND, max. 3A)
buttons/Switches
Power-Button (internal), Reset-Button (internal), clear-CMOS-Button (external)
Audio
7.1 (Realtek ALC1220/Realtek ALC4050H), AMP (TI NE5532)
Graphics
ASPEED AST2500 - onboard
Wireless
Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2, Intel), Bluetooth 5.2
RAID level
0/1/5/10 (WRX80)
Power connections
1x 24-Pin ATX, 2x 8-Pin EPS12V, 1x 6-Pin PCIe
VRM
8 virtual phases (8+0), 8 real phases (8+0), PWM-Controller: not specified
MOSFETs CPU
8x 105A
MOSFETs SoC
not available
Lighting
not available
BIOS
1x 32MB (256Mb)
Special features
All solid capacitors, Diagnostic LED (segment indication), IPMI 2.0, I/O-shield integrated, ECC-support, 2x VRM-fan, onboard TPM 2.0 support (AMD fTPM)
