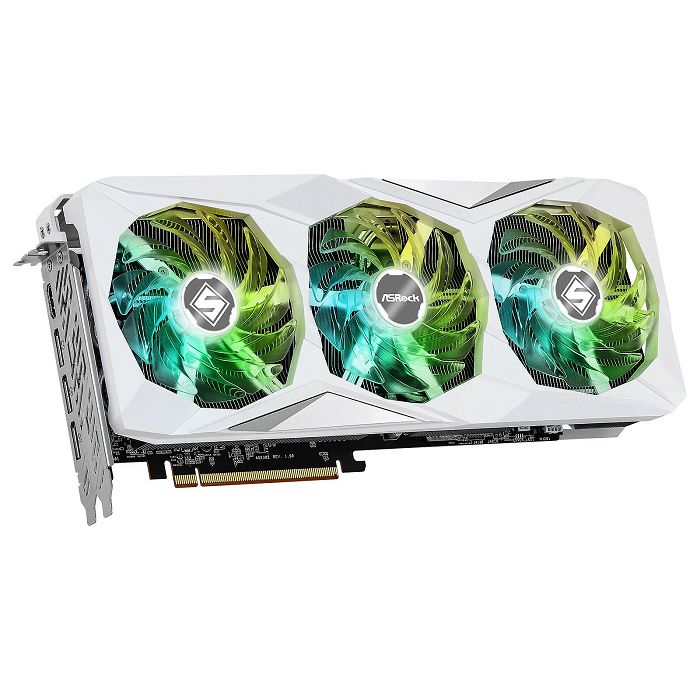

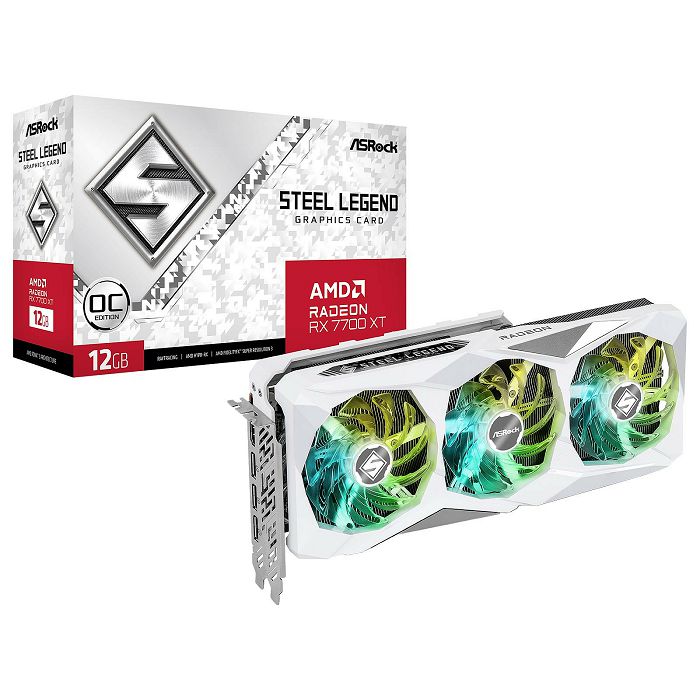

ASRock RX7700XT Steel Legend 12G OC, 12GB, 90-GA4PZZ-00UANF

GPU
AMD Radeon RX 7700 XT
Memory
12GB GDDR6, 192bit, 18Gbps, 2250MHz, 432GB/?s
overclock
+55MHz Boost, +105MHz Game
clock Boost
2276-2599MHz
clock Base
unknown
Cooling
3x Axial-fan (90mm, RGB illuminated) with 0dB-zero-fan-mode
TDP/TGP
245W (AMD)
Power connections
2x 8-Pin PCIe
Interfaces

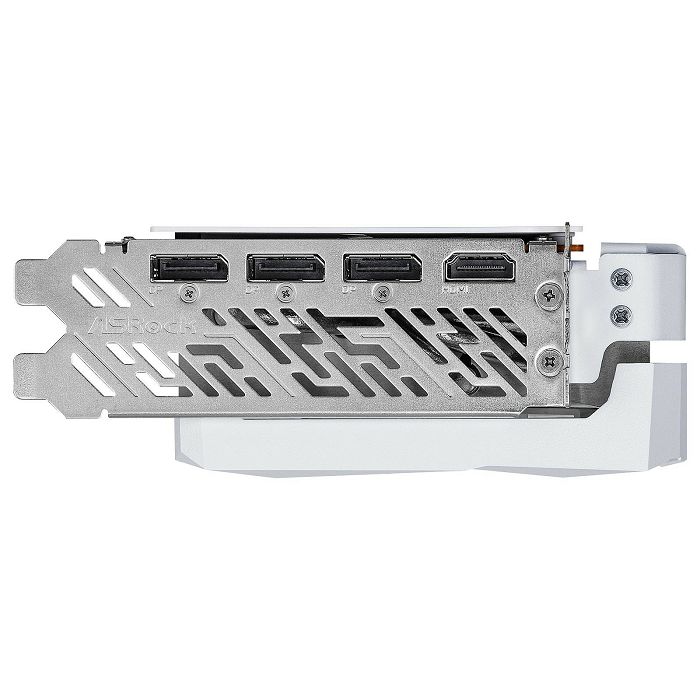

1x HDMI 2.1, 3x DisplayPort 2.1
Interface
PCIe 4.0 x16
Special features
Backplate, LED lighting (RGB), LED switch, white colouring
total height
Triple Slot (2.8 Slots)
Dimensions
304x131x56mm (LxWxH), Weight: 1.24kg
Type
PCIe card (full height)
PCI slot bracket
full height
Computing power
71.86 TFLOPS (FP16), 35.93 TFLOPS (FP32), 2.25 TFLOPS (FP64)
Warranty
two years (handling by merchant)
Chip-data
Chip-Architecture
RDNA 3 (from 2022/?Q4)
Chip-title
Navi 32
Chip-Configuration
54CU (3456 ALUs /? 216 TMUs /? 96 ROPs), 54 RT Cores, 2MB L2 cache, 48MB L3 cache
Chip-Manufacturing Process
TSMC 5nm + TSMC 6nm
Chip size
346mm2, Multi-Chip module (3 MCM-Chiplets)
Chip-functions
Raytracing, AMD Infinity cache (48MB), HDCP 2.3
API-support
DirectX 12 Ultimate (12_2) /? Vulkan 1.3 /? OpenCL 2.1 /? OpenGL 4.6 /? Shader Model 6.7
Transcoding-Engine
VCN 4.0, Info
encoding
AV1, H.265, H.264
decoding
AV1, H.265, H.264, VP9
