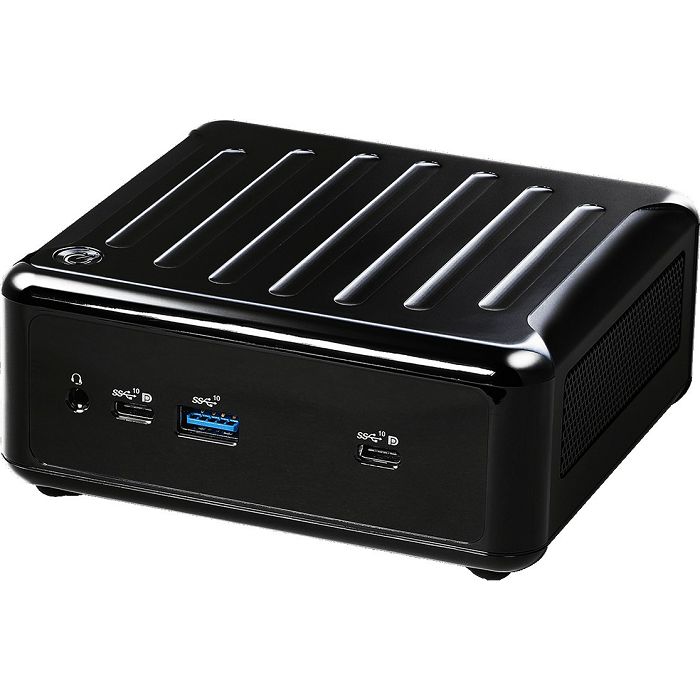

Asrock Mini PC Industrial 4X4 BOX, Ryzen 5 4500U , barebone, 90PXG7R0-P0EAY100

Type Mini PC
chipset System-on-Chip (SoC)
Socket not available
CPU AMD Ryzen 5 4500U, 6C/6T, 2.30-4.00GHz, 8MB+3MB cache, 15W TDP, Codename "Renoir" (Zen 2, 7nm)
RAM 2x DDR4 SO-DIMM, dual PC4-25600S/DDR4-3200, max. 64GB (UDIMM)
HDD 1x SATA 6Gb/s, 1x M.2/M-Key (PCIe 3.0 x4/SATA, 2280/2260/2242)
drive bays external not available
Drive bays internal not available
Graphics AMD Radeon Graphics (iGPU), 6CU/384SP, 1.50GHz, Codename "Vega" (GCN 5.1)
connectors rear 1x HDMI 2.0a, 1x DisplayPort 1.2a, 1x USB-A 3.1, 2x USB-A 2.0, 1x 2.5GBase-T (Realtek RTL8125BG), 1x Gb LAN (R8111FPV), 1x hollow socket (mains connection)
connectors front/page 2x USB-C 3.1 with DisplayPort 1.2a, 1x USB-A 3.1, 1x jack
Extension slots 1x M.2/E-Key (PCIe, 2230, occupied with WiFi+BT module)
Wireless Wi-Fi 6 (WLAN 802.11a/b/g/n/ac/ax, 2x2, Intel AX200), Bluetooth 5.2
Audio 2.0 (Realtek ALC233)
card readers not available
Power supply external, 1x barrel connector (90W/19V)
VESA-mounting 75x75/100x100 (included)
Dimensions (WxHxD) 117.5x47.85x110mm
Weight 1.00kg
Capacity 0.6l
CPU Coolers included
Special features security lock (Kensington), 4x display support, TPM 2.0, Remote Management with compatible CPU (DMTF DASH)
