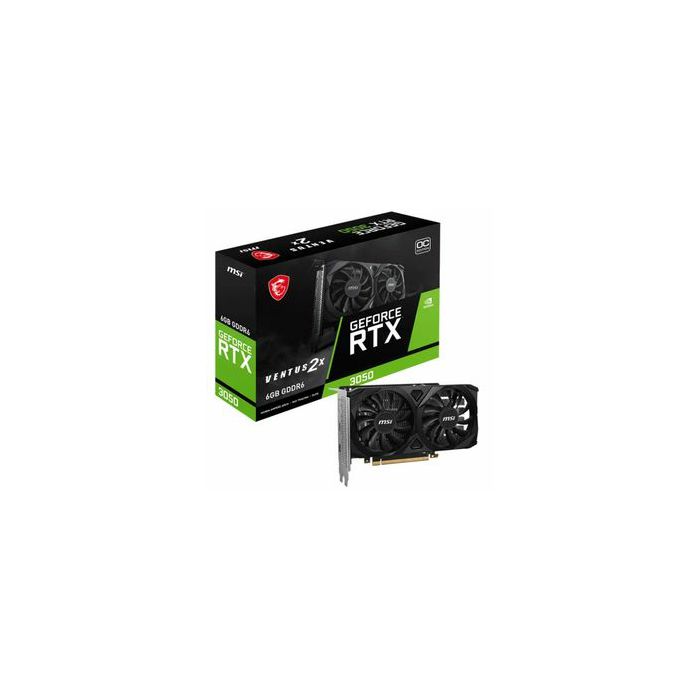

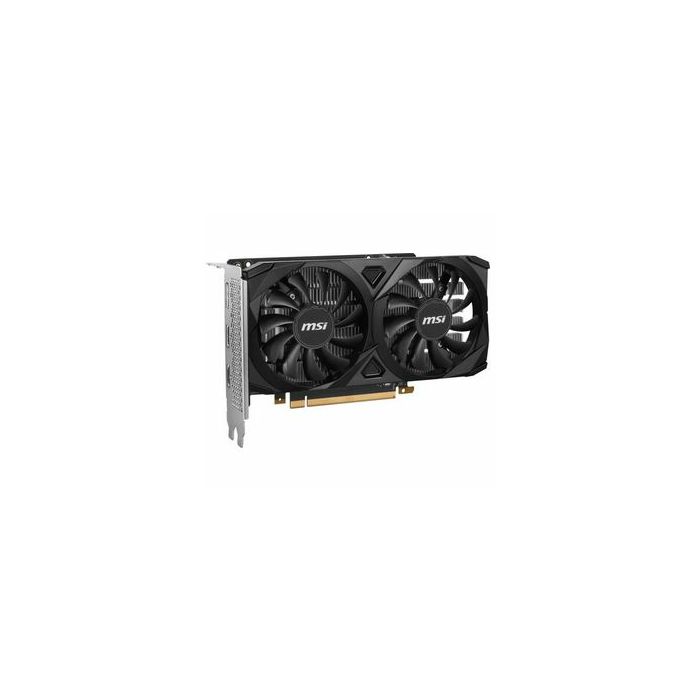

MSI RTX3050 Ventus 2X 6G OC, 6GB, GDDR6, V812-015R

GPU NVIDIA GeForce RTX 3050
Memory 6GB GDDR6, 96bit, 14Gbps, 1750MHz, 168GB/?s
clock Base 1042MHz
clock Boost 1492MHz
overclock +22MHz Boost
Cooling 2x Axial-fan (80mm)
TDP/TGP 70W (NVIDIA)
Power connections -

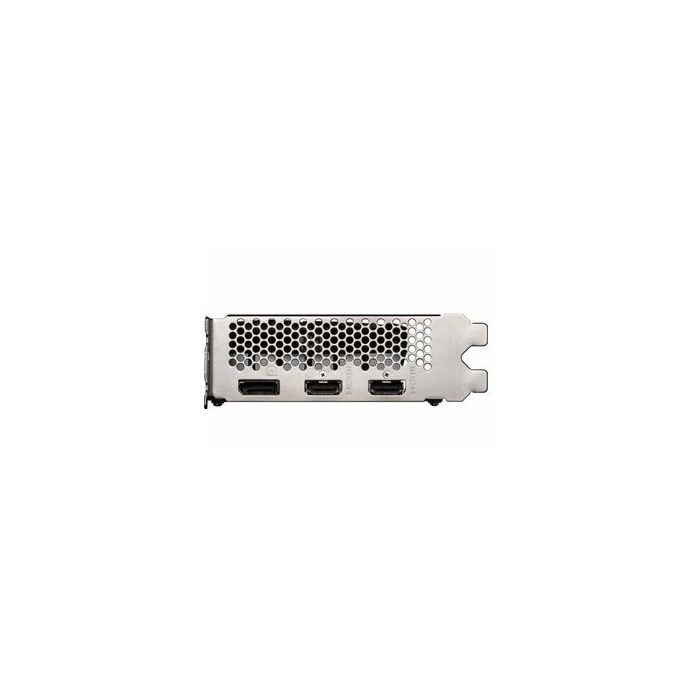

Connectors 2x HDMI 2.1, 1x DisplayPort 1.4a
Interface PCIe 4.0 x16 (x8)
Special features without LHR (Lite Hash Rate)
total height Dual Slot
Dimensions 189x109x42mm (LxWxH), Weight: 381g
Type PCIe card (full height)
PCI slot bracket full height
Computing power 6.88 TFLOPS (FP16), 6.88 TFLOPS (FP32), 0.11 TFLOPS (FP64)
Chip-data
Chip-Architecture Ampere (from 2020/?Q3)
Chip-title GA107-325-K2-A1
Chip-Configuration 18SM (2304SP /? 72TMU /? 32ROP), 18 RT Cores, 72 Tensor Cores, 2MB L2 cache
Chip-Manufacturing Process Samsung 8nm
Chip size 200mm2, monolithisch, 8.7 Mrd. Transistoren
Chip-functions Raytracing (2nd Gen NVIDIA RTX), NVIDIA Tensor (3rd Gen), HDCP 2.3
API-support DirectX 12 Ultimate (12_2) /? CUDA 8.6 /? Vulkan 1.3 /? OpenCL 3.0 /? OpenGL 4.6 /? Shader Model 6.7
Transcoding-Engine 1x NVENC (7th Gen, max. Sessions: 8), 1x NVDEC (5th Gen), Info
encoding H.265 (4K YUV 4:2:0 /? 4K YUV 4:4:4 /? 4K Lossless /? 8K /? HEVC 10bit support /? HEVC B Frame support), H.264 (YUV 4:2:0 /? YUV 4:4:4 /? Lossless)
decoding AV1 (8bit /? 10bit), H.265 (8bit 4:2:0 /? 10bit 4:2:0 /? 12bit 4:2:0 /? 8bit 4:4:4 /? 10bit 4:4:4 /? 12bit 4:4:4), H.264, VP9 (8bit /? 10bit /? 12bit), VP8, VC-1, MPEG-2, MPEG-1
