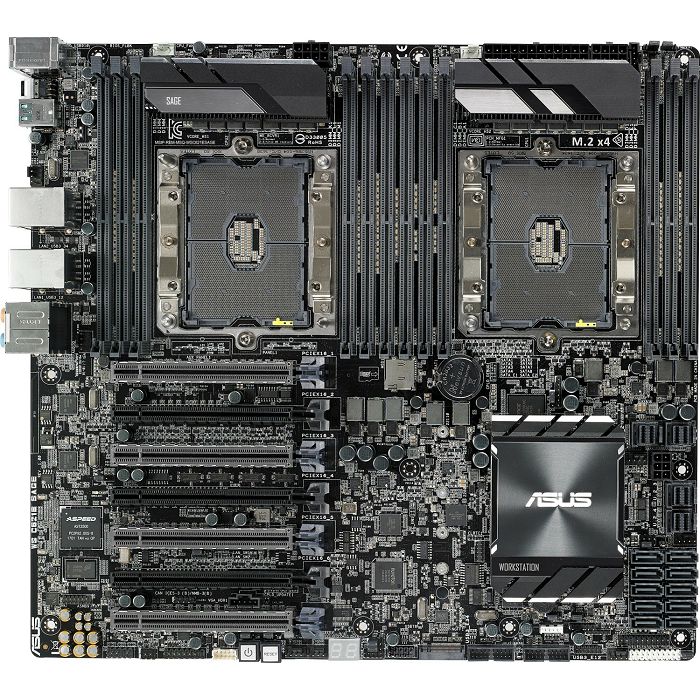

ASUS C621E WS SAGE LGA 2x Intel Socket 3647, 90SW0020-M0EAY0

Form factor E-ATX (SSI EEB)
Plinth 2x Intel 3647 (Square-ILM), shadowed layout
Chipset Intel C621
RAM 12x DDR4 DIMM, hexa PC4-21300L/DDR4-2666, max. N/A (UDIMM), 384GB (RDIMM), 768GB (LRDIMM), 1.5TB (LRDIMM-3DS)
Expansion Slots 7x PCIe 3.0 x16 (4x x16, 3x x8), 1x M.2/M-Key (PCIe 3.0 x4/SATA, 22110/2280/2260/2242), 4x Mini SAS HD SFF-8643 (PCIe 3.0 x4)
External connections 1x USB-C 3.1 (10Gb/s, ASM3142), 1x USB-A 3.1 (10Gb/s, ASM3142), 4x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 2x Gb LAN (Intel i210-AT), 5x jack, 1x Toslink, 1x PS/2 combo
Internal connections 2x USB 3.0 header (5Gb/s, 4x USB 3.0), 1x USB 2.0 header (480Mb/s, 2x USB 2.0), 8x SATA 6Gb/s (C621), 2x SATA 6Gb/s (ASM1061), 1x serial, 1x TPM header, 1x VROC header, 1x VGA header (AST2500)
Header Cooling 2x CPU fan 4-pin, 7x fan 4-pin
Header Lighting N/A
Buttons/Switches Power button (internal), Reset button (internal), USB BIOS Flashback (external)
Audio 7.1 (Realtek ALC1220), DTS Connect, DTS Headphone:X
Graphic ASPEED AST2500 - Onboard
Wireless N/A
RAID Level 0/1/5/10 (C621)
Multi-GPU NVIDIA 4-Way SLI (x16/x16, x16/x16/x16, x16/x16/x16), AMD 4-Way CrossFireX (x16/x16, x16/x16/x16, x16/x16/x16)
Power connections 1x 24-pin ATX, 2x 8-pin EPS12V, 1x 6-pin PCIe
Lighting N/A
Particularities Audio+solid capacitors, Diagnostic LED (segment display), IPMI 2.0
