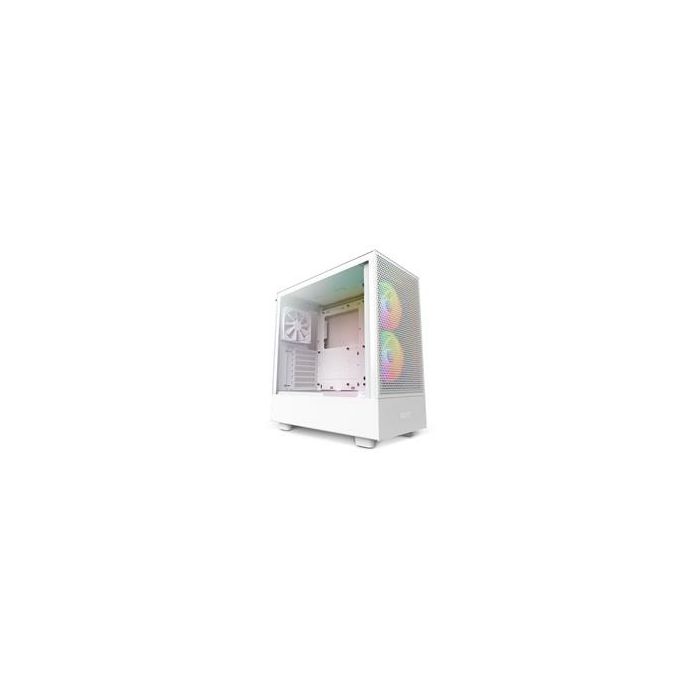

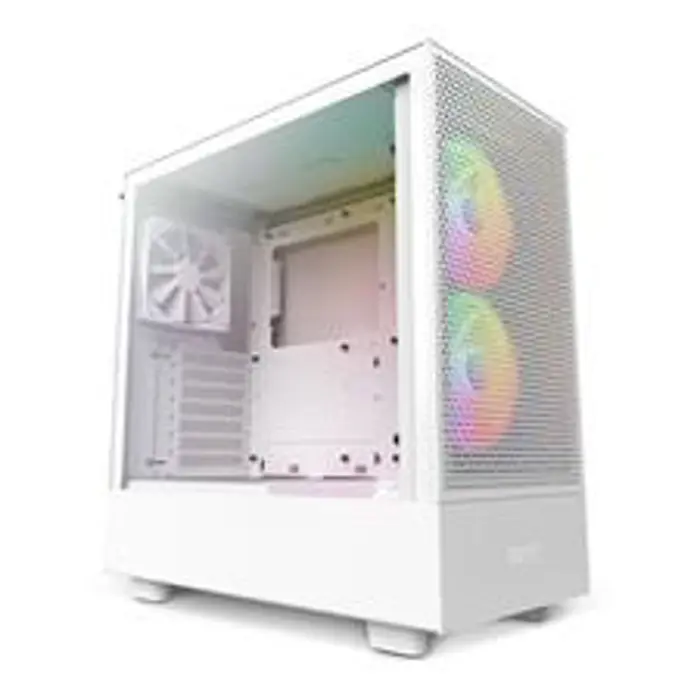

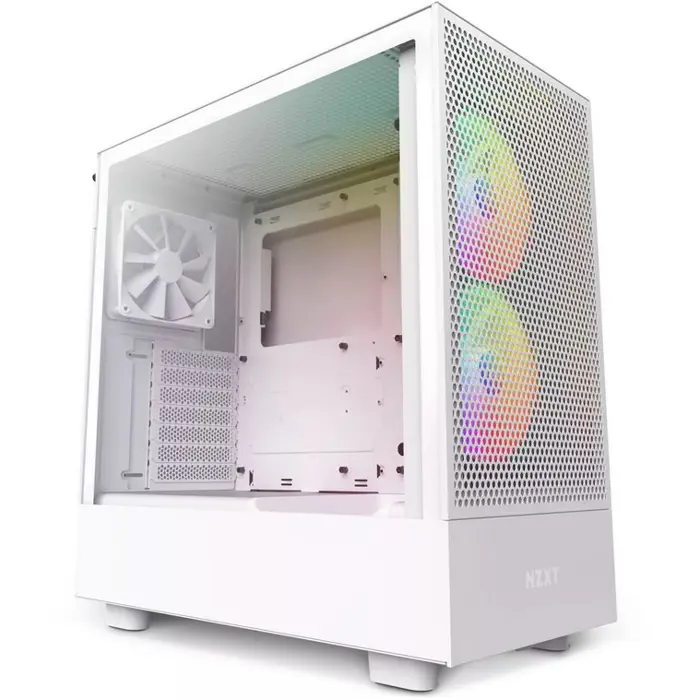

NZXT Midi Tower H5 Flow RGB White Window, CC-H51FW-R1

external
not available
Internal
1x 2.5"/3.5", 1x 2.5"
front I/O
1x USB-C 3.1 (10Gb/?s, 20-Pin Key-A Header), 1x USB-A 3.0 (5Gb/?s), 1x headphone
PCI-slots
7

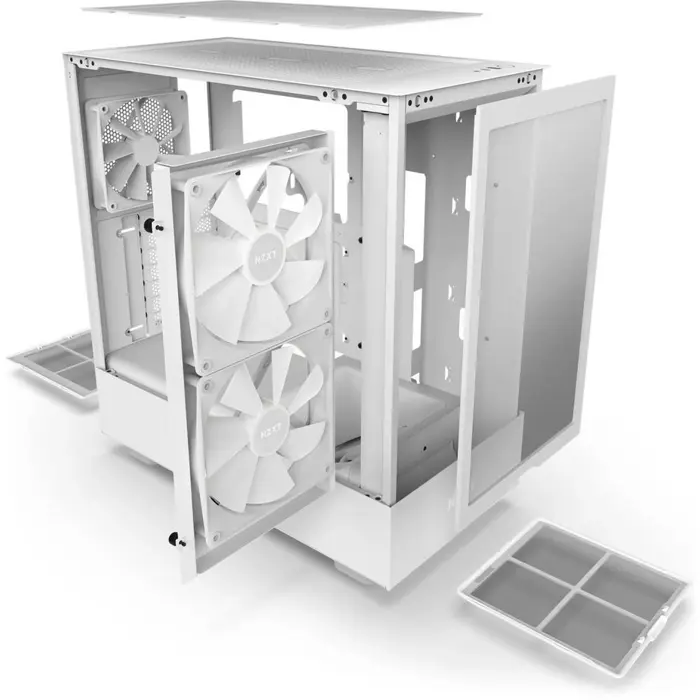

Fan(s) (front)
2x 140mm (optional) or 2x 120mm (optional)
Fan(s) (rear)
1x 120mm, 1200rpm, 1.05mmH2O, 105.71m3/?h, 25.1dB(A)
Fans (left)
not available
Fans right
not available
Fan(s) (top)
2x 120mm (optional)
Fan(s) (bottom)
not available

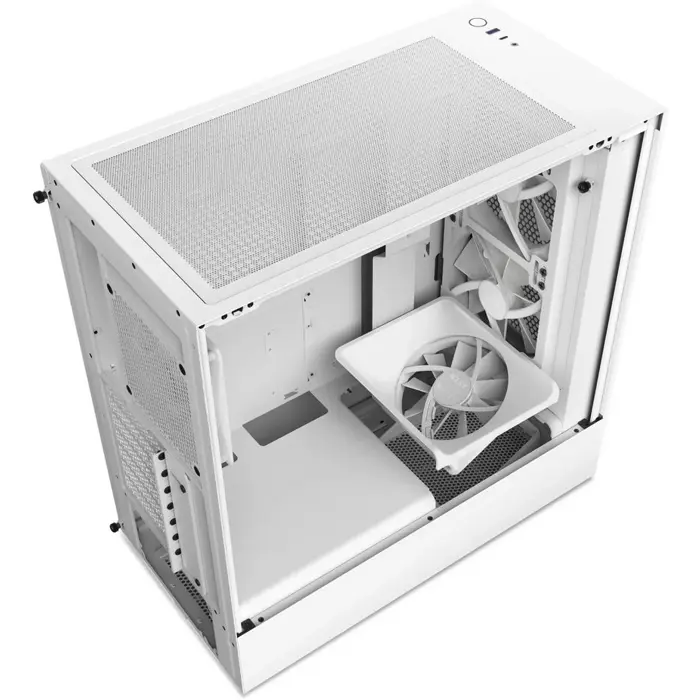

Fans (other)
1x 120mm, 1200rpm, 1.05mmH2O, 105.71m3/?h, 25.1dB(A)
radiator sizes
120/?140/?240/?280mm front, 120/?240mm top, 120mm rear
Motherboard
to ATX
Supported motherboards
Mini-ITX (6.7"x6.7")/µATX (9.6"x9.6")/ATX (12"x9.6")
Power supply
ATX
Power supply position
bottom
CPU Coolers
max. 165mm height
Graphics Cards
max. 365mm
Colour
white, inside white
Lighting
without Illumination
Dimensions (WxHxD)
227x464x446mm
Capacity
46.98l
Weight
7.01kg
Type
Midi-Tower

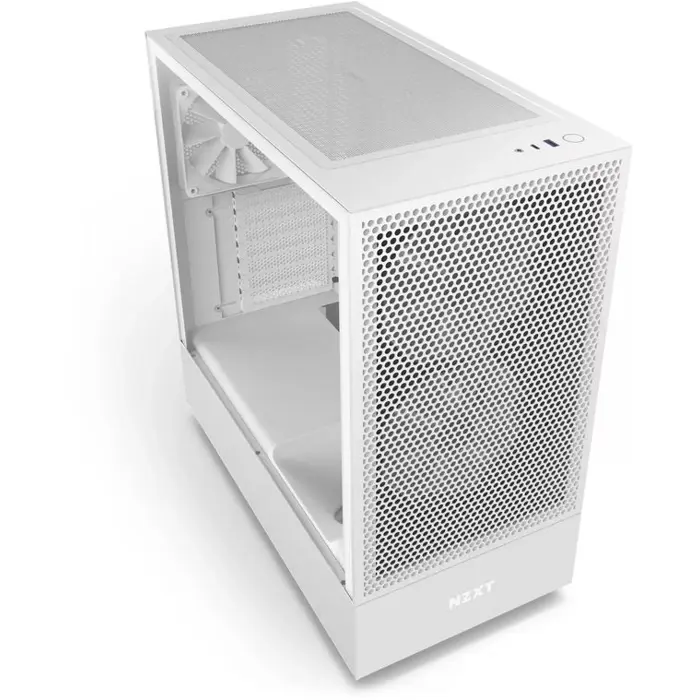

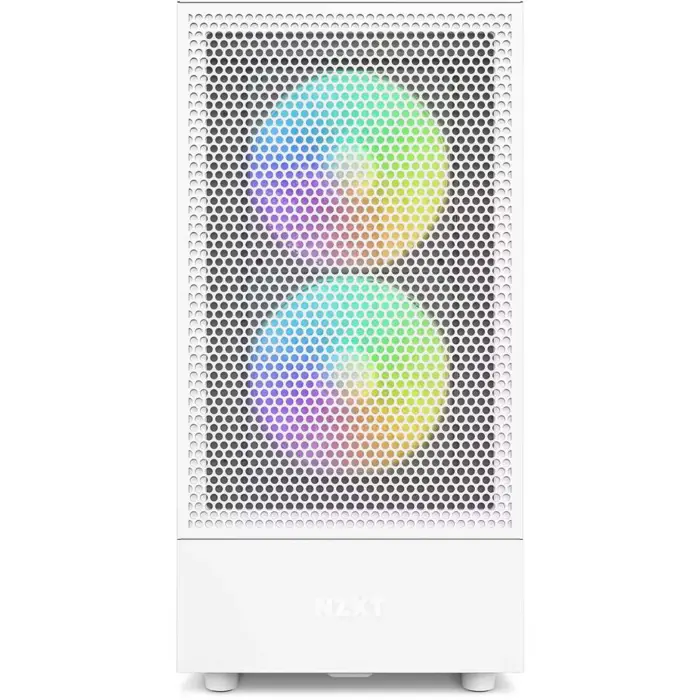

front
Mesh, dust filter inside
above
partially closed, mainly fan grill, dust filter outdoor
below
partially closed, fan grill rear, fan grill front, dust filter outdoor

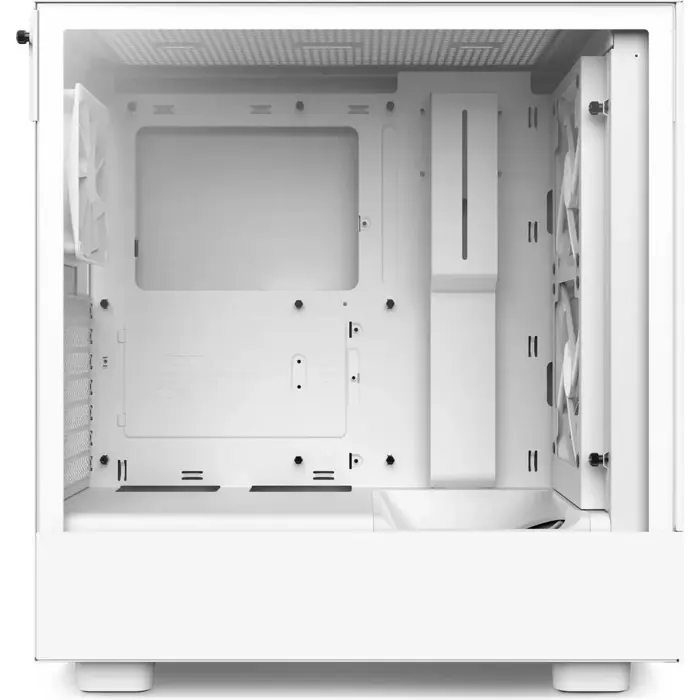

left
closed, glass

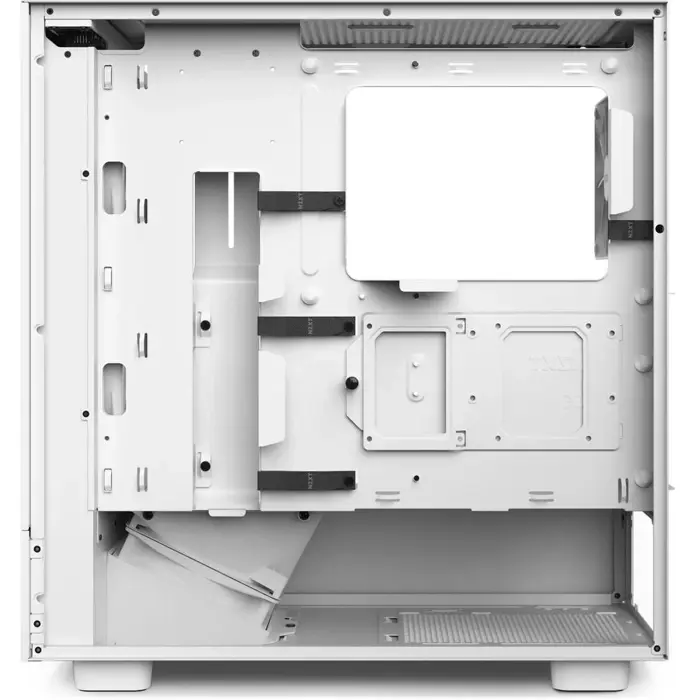

right
closed
aft
partially closed, fan grill right top, PCI slots (7x horizontal)

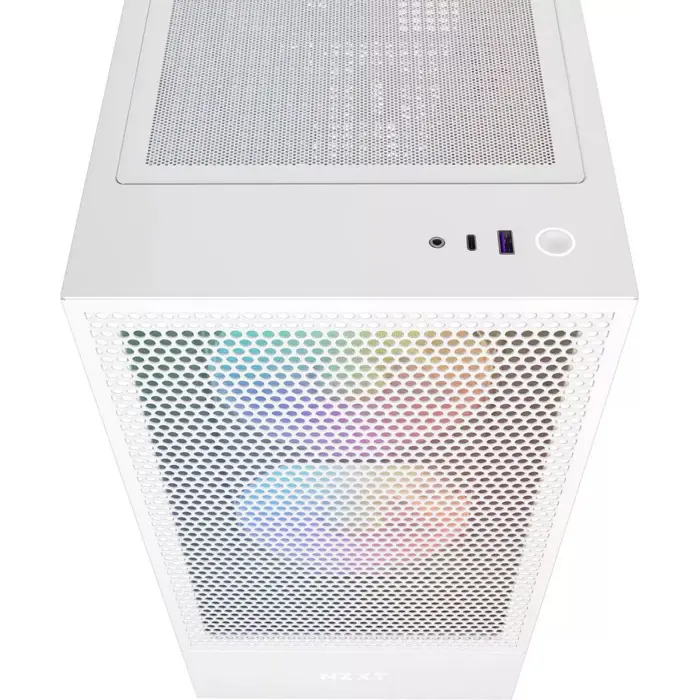

front I/O position
Housing side: top, Height: front, position: right
Special features
Cable Management, dust filter, side panel window made out of glass, graphics card vertical mountable (optional)
