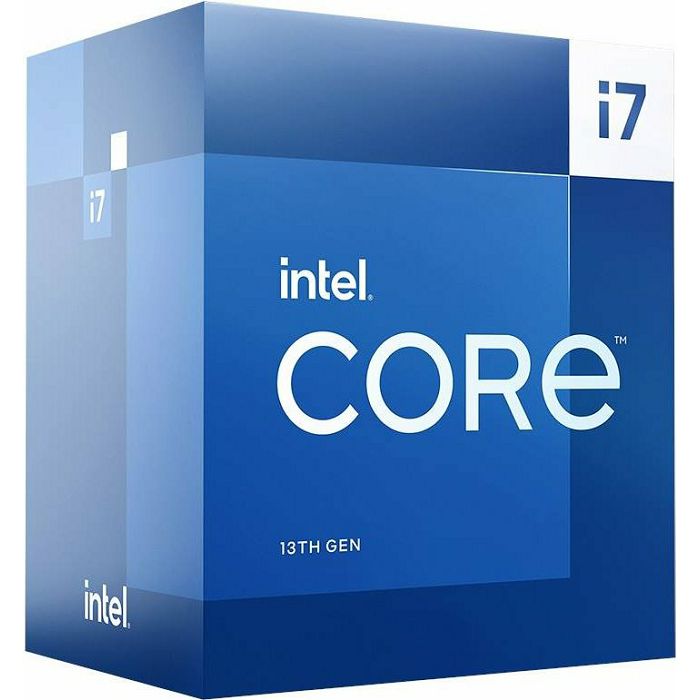

Intel Core i7-13700 2.1GHz (5.2GHz Turbo) LGA1700, BX8071513700

Cores 16 (8+8)
Threads 24 (16+8)
Turbo Clock 5.20GHz (Turbo Boost Max 3.0), 5.10GHz (P-Core), 4.10GHz (E-Core)
Base Clock 2.10GHz (P-Core), 1.50GHz (E-Core)
TDP 65W, cTDP: 65-219W
Graphics yes (Intel UHD Graphics 770)
Socket Intel 1700 (LGA1700), "Socket V"
chipset suitability B660, B760, H610, H670, H770, W680, Z690, Z790
Codename Raptor Lake-S
Architecture Raptor Cove (P-Core), Gracemont (E-Core)
Manufacturing Process Intel 7
L2 cache 24MB (8x 2MB + 8x 1MB)
L3 cache 30MB
Memory controller Dual Channel DDR5-5600 (PC5-44800), DDR4-3200 (PC4-25600), 89.6GB/s, max. 128GB
ECC support yes
SMT yes (Intel Hyper-Threading)
Remote management no
Unlocked no
CPU-Features AES-NI, AVX, AVX2, Boot Guard, CET, DL Boost, EIST, GNA 3.0, ISM, Idle States, Instruction set 64bit (Intel 64), MBEC, OS Guard, SSE4.1, SSE4.2, Secure Key, Speed shift, TXT, Thermal Monitoring, Thread Director, VMD, VT-d, VT-x, VT-x EPT, XD bit
Scalability 1 socket (1S)
PCIe Lanes 16x PCIe 5.0, 4x PCIe 4.0
chipset Interface DMI 4.0, 16GT/s (PCIe 4.0 x8)
iGPU-Model Intel UHD Graphics 770
iGPU-Clock 0.30-1.60GHz
iGPU-Units 32EU / 256 Shader
iGPU-Architecture Gen 12.2, Codename "Raptor Lake GT1"
iGPU Interface DP 1.4a (7680x4320@60Hz), eDP 1.4b (5120x3200@120Hz), HDMI 2.1 (4096x2160@60Hz)
iGPU-Features 4x display support, 2x Multi-format codec Engine, Intel clear Video HD, Intel Quick Sync Video, AV1 decode, H.265 encode/decode, VP9 encode/decode, HDCP 2.3, DirectX 12, OpenGL 4.5, OpenCL 3.0, Vulkan 1.0
iGPU processing Power 0.8192 TFLOPS (FP32)
Scope of Delivery with CPU cooler (Intel Laminar RM1)
Launch 2023/Q1 (3.1.2023)
Segment desktop (Mainstream)
Stepping B0, Spec Code: SRMBA
Max Temperature 100°C (Tjunction)
Thermal Interface material metal/soldered
