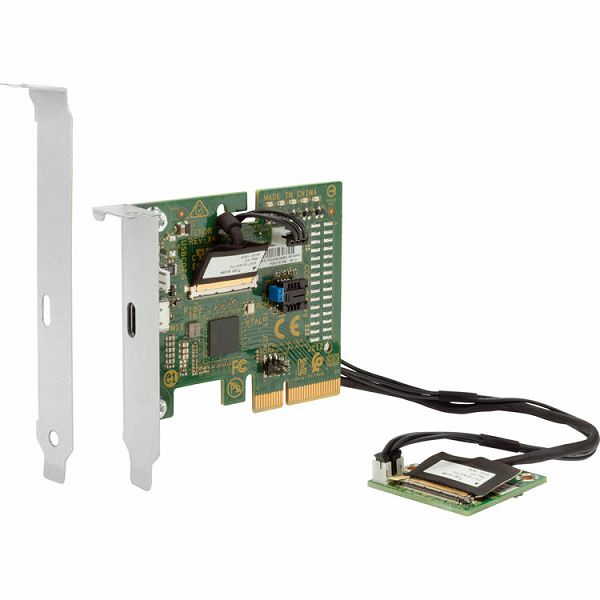

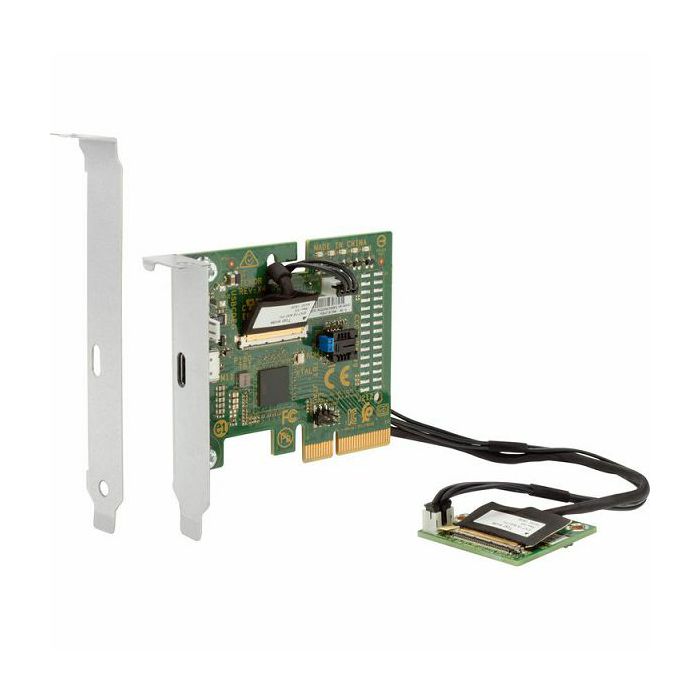

HP Thunderbolt 3.0 PCIe Card, 4CX35AA

Enable fast backups, editing, and file sharing, plus reduce the time needed to complete key tasks using the Thunderbolt 3 PCIe 1-Port I/O Card from HP. Compatible with select HP systems, including the EliteDesk 800 G4 Small Form Factor, EliteDesk 800 G4 Tower, Z2 G4 Small Form Factor, and Z2 G4 Tower, this card has one Thunderbolt 3 port which utilizes the USB Type-C interface and delivers data transfer speeds of up to 40 Gb/s. This can support accurate audio and video creation, playback, and editing with low latency and enhanced time synchronization. Also supported is data and video with PCIe and DisplayPort on a single card with a single cable connection, the daisy-chaining of up to six devices, and backward compatibility with 20 Gb/s Thunderbolt 2 and 10 Gb/s Thunderbolt standards. This product comes mounted to a low-profile bracket and includes a full-height bracket.


Performance
Get high-speed I/O with transfer speeds up to 40 Gb/s, which is nearly eight times 5 Gb/s USB 3.1 Gen 1. This card supports accurate audio and video creation, playback, and editing with low latency and enhanced time synchronization.

Flexible Simplicity
Support data and video with PCIe and DisplayPort on a single card with a single cable connection. Furthermore, enjoy increased productivity by daisy-chaining up to six devices.

Compatibility
This card can be used with a wide range of devices that support 40 Gb/s Thunderbolt 3, 20 Gb/s Thunderbolt 2, and 10 Gb/s Thunderbolt. Please be aware that Thunderbolt 2 and Thunderbolt devices may require a separately sold adapter. Also, all Thunderbolt devices and cables must be compatible with Windows

Part number 4CX35AA
Dimensions 3.1 x 3.6 x 0.8 in (8 x 9.3 x 2.2 cm)
Weight 0.06 lb (30 gr)

Compatibility statement The HP Thunderbolt 3.0 PCIe Card is compatible with the HP EliteDesk 800 G4 Tower PC; HP EliteDesk 880 G4
Tower PC; HP EliteDesk 800 G4 Small Form Factor PC; HP EliteDesk 800 G5 Tower PC; HP EliteDesk 880 G5
Tower PC; HP EliteDesk 800 G5 Small Form Factor PC
