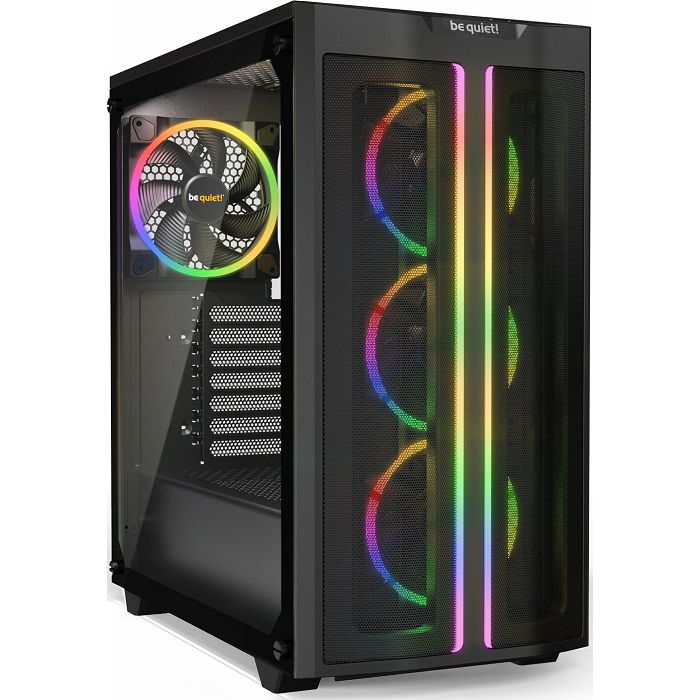

Be quiet! Midi Tower Pure Base 500 FX Black, glass window, BGW43

external
not available
Internal
1x 2.5"/3.5" (transverse, HDD cage), 1x 3.5" (transverse, HDD cage), 4x 2.5"

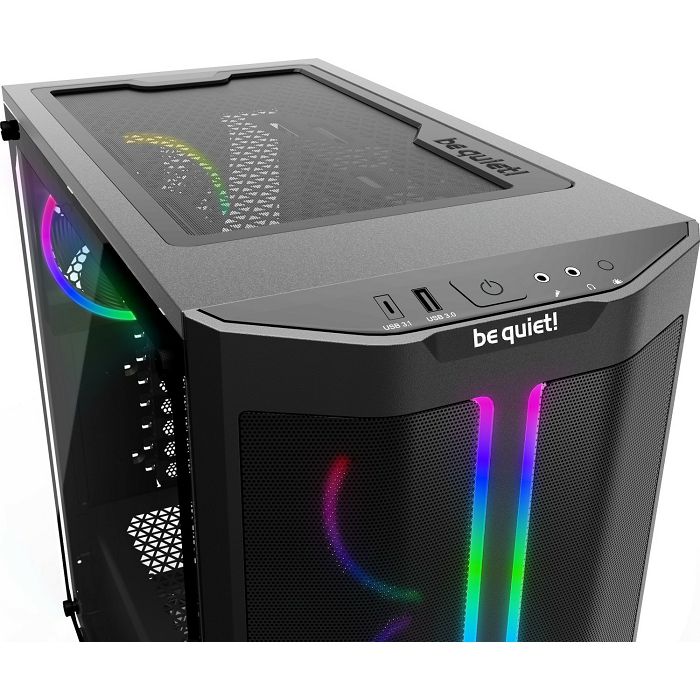

front I/O
1x USB-C 3.1 (10Gb/s, 20-Pin Key-A Header), 1x USB-A 3.0 (5Gb/s), 1x headphone, 1x microphone
PCI-slots
7

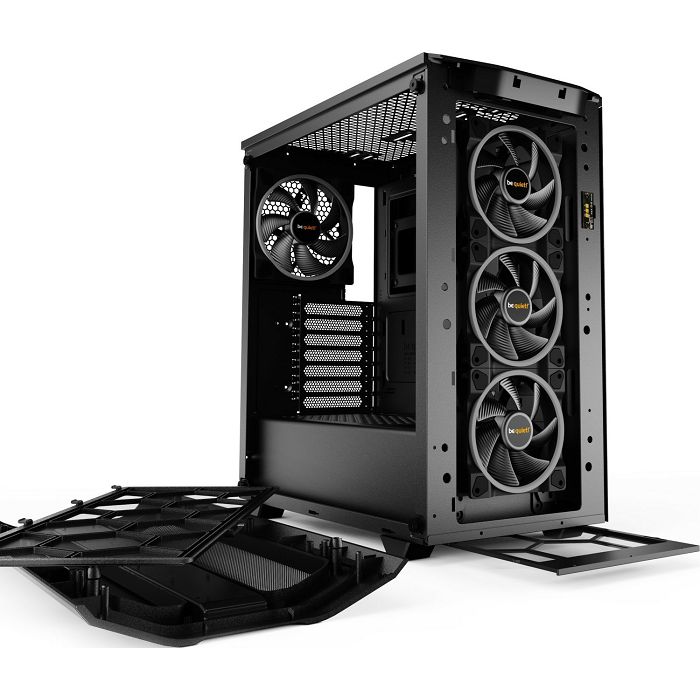

Fan(s) (front)
3x 120mm, 1700rpm (RGB illuminated) or 2x 140mm (optional)
Fan(s) (rear)
1x 140mm, 1500rpm (RGB illuminated) or 1x 120mm (optional)
Fans (left)
not available
Fans right
not available
Fan(s) (top)
2x 140mm (optional) or 2x 120mm (optional)
Fan(s) (bottom)
not available
Fans (other)
not available
radiator sizes
120/140/240/280/360mm front, 120/240mm top, 120/140mm rear
Motherboard
to ATX
Supported motherboards
Mini-ITX (6.7"x6.7")/µATX (9.6"x9.6")/ATX (12"x9.6")
Power supply
ATX (max. 225mm deep, 258mm without HDD-cage)
Power supply position
bottom
CPU Coolers
max. 190mm height
Graphics Cards
max. 369mm
Colour
black, inside black
Lighting
RGB-Header 3-Pin ARGB (+5V/DATA/GND), integrated LED control, integrated RGB-LED lighting, illuminated fan
Dimensions (WxHxD)
232x463x450mm
Capacity
48.34l
Weight
8.00kg
Type
Midi-Tower
front
Mesh, dust filter inside
above
partially closed, mainly fan grill, dust filter outdoor
below
partially closed, fan grill, dust filter outdoor
left
closed, glass
right
closed, insulation mat inside
aft
partially closed, fan grill right top, PCI slots (7x horizontal)
front I/O position
Housing side: top, Height: front, position: centered
Special features
Cable Management, dust filter, side panel window made out of glass
