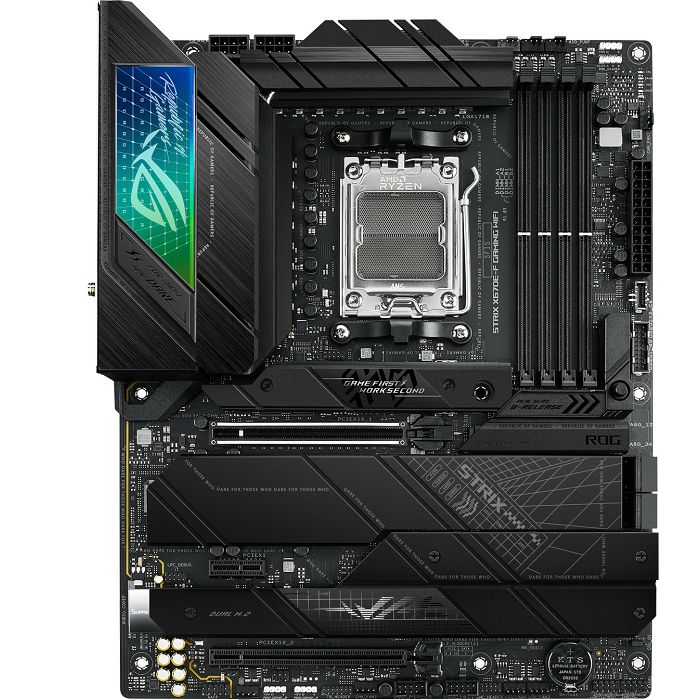

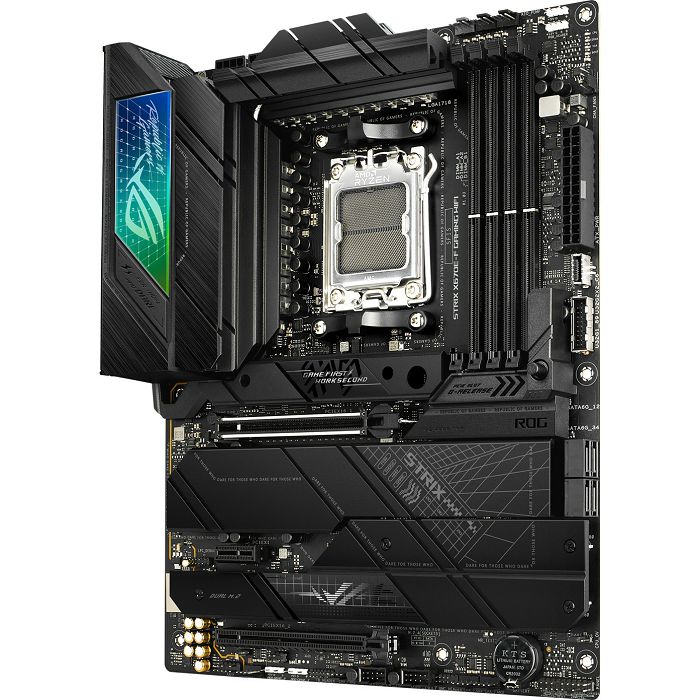

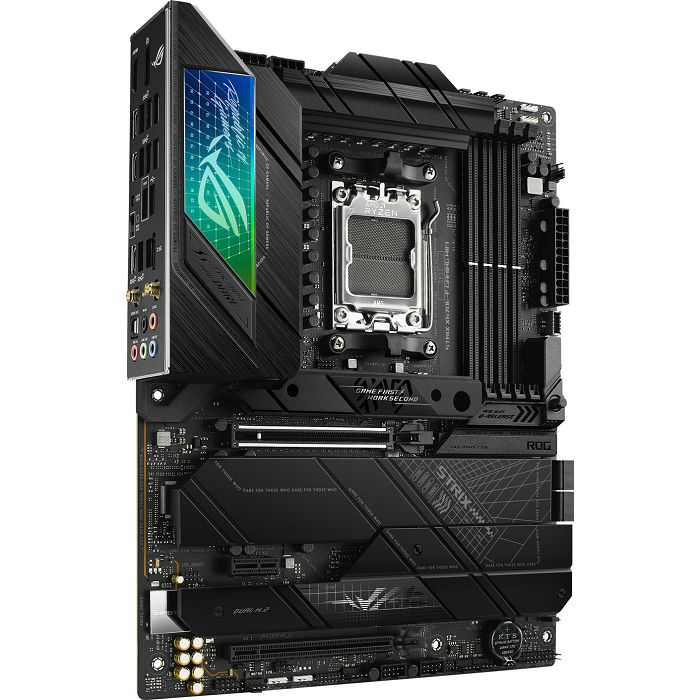

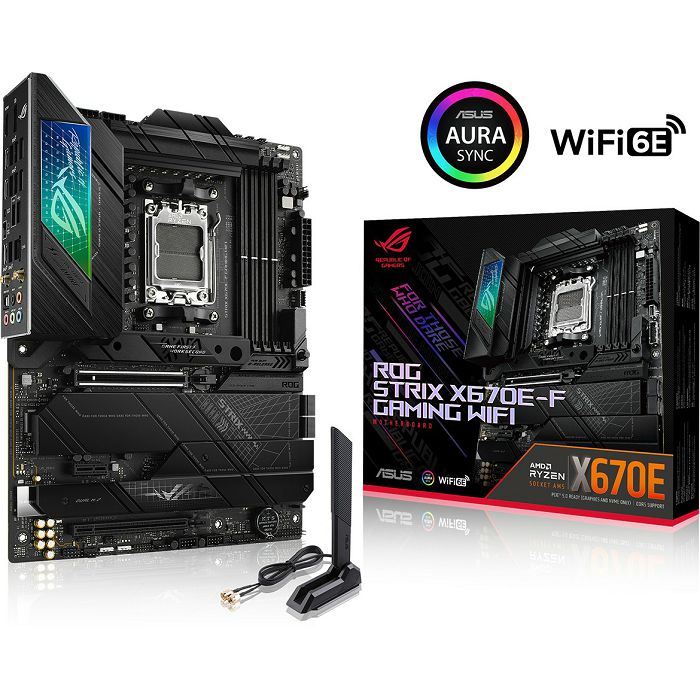

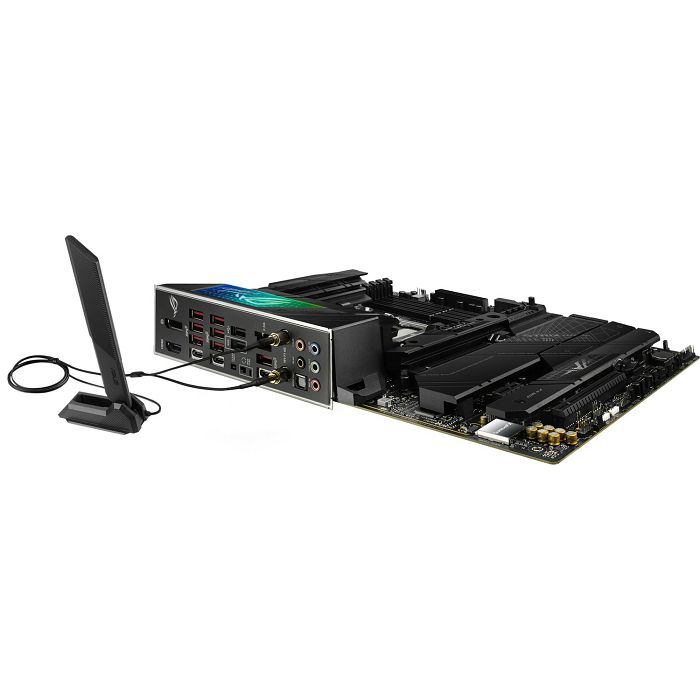

Asus ROG Strix X670E-F Gaming Wi-Fi, AM5, 90MB1BA0-M0EAY0

shape factor ATX
Socket AMD AM5
chipset AMD X670E
CPU-Compatibility Ryzen 7000
RAM 4x DDR5 DIMM, dual PC5-51200U/DDR5-6400 (OC), max. 128GB (UDIMM)
Extension slots 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x1, 2x M.2/M-Key (PCIe 5.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242) external connectors

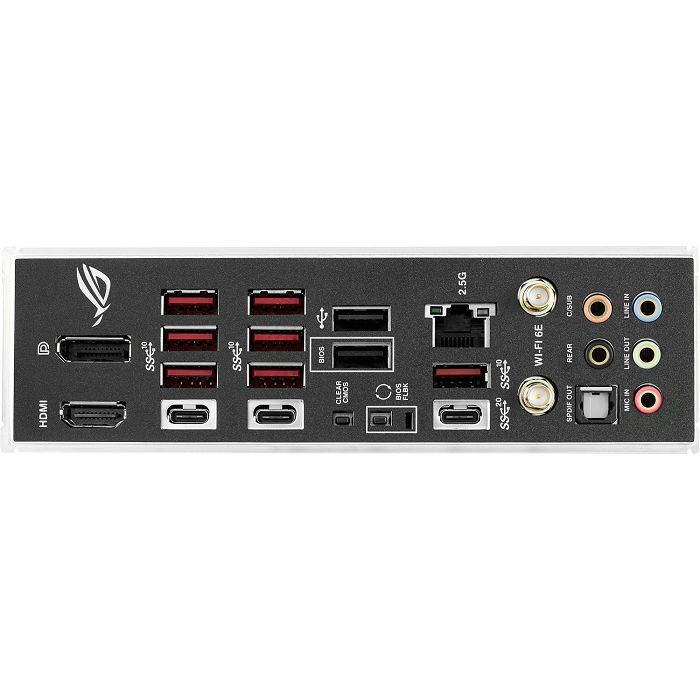

1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 (20Gb/s), 2x USB-C 3.1 (10Gb/s), 7x USB-A 3.1 (10Gb/s), 2x USB-A 2.0 (480Mb/s), 1x .5GBase-T (Intel I225-V), 5x jack, 1x toslink
Internal connectors 1x USB-C 3.2 Key-A Header (20Gb/s), 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (X670E), 1x Chassis Intrusion-Header, 1x Thunderbolt-Header 13-Pin (14-1)
Header Cooling 2x CPU fan 4-Pin, 5x fan 4-Pin, 1x AIO-pump 4-Pin, 1x Thermal-sensor
Header Lighting 1x 4-Pin RGB (+12V/G/R/B, max. 3A), 3x 3-Pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
buttons/Switches clear-CMOS-Button (external), USB BIOS Flashback (external)
Audio 7.1 (Realtek ALC4080, ASUS SupremeFX), AMP (Savitech SV3H712), DTS Sound Unbound
Graphics iGPU
Wireless Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2), Bluetooth 5.2
RAID level 0/1/10 (X670E)
Power connections 1x 24-Pin ATX, 2x 8-Pin EPS12V
VRM 18 virtual phases (16+2)
MOSFETs CPU 16x 70A
MOSFETs SoC 2x 70A
Lighting RGB, 1 zone (I/O cover)
BIOS 1x 32MB (256Mb)
Special features audio+solid capacitors, Diagnostic LED (LED indicators), 4x M.2-passive cooler, I/?O-shield integrated, onboard TPM 2.0 support (AMD fTPM)
