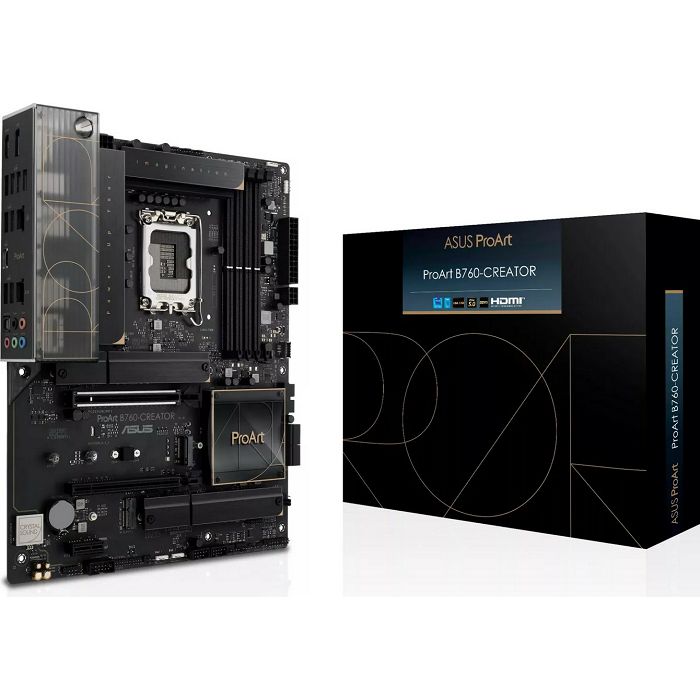

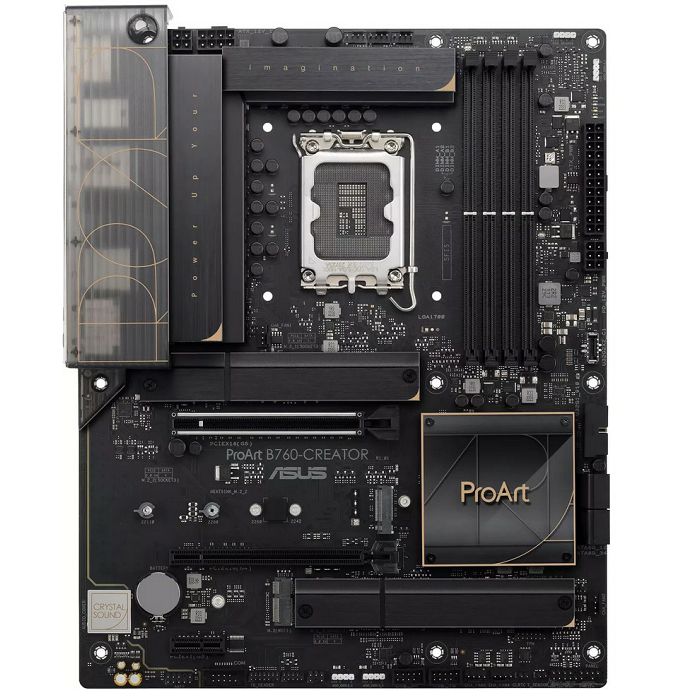

ASUS ProART B760-Creator, INTEL, DDR5, S.1700, 90MB1F20-M0EAY0

Form factor ATX
Plinth Intel 1700
Chipset Intel B760
CPU Compatibility Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 4x DDR5 DIMM, dual PC5-44800U/DDR5-5600, max. 128GB (UDIMM)
Expansion slots 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 3.0 x4, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242), 1x M.2/E-Key (Intel CNVi, 2230)

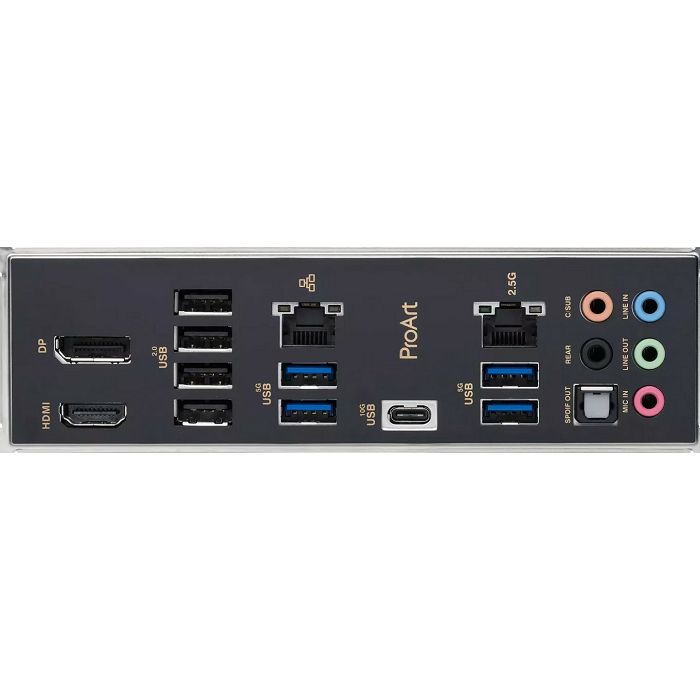

External connections 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/s), 4x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek), 1x Gb LAN (Intel I219-V), 5x jack, 1x Toslink
Internal connections 1x USB-C 3.2 Key-A header (20Gb/s, PD, max. 60W, QC4+), 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B760), 1x serial, 1x TPM header, 1x Thunderbolt header 13-pin (14-1), 1x COM debug header
Header Cooling 2x CPU fan 4-pin, 4x fan 4-pin, 1x AIO pump 4-pin, 1x thermal sensor
Header Lighting 1x 4-pin RGB (+12V/G/R/B, max. 3A), 3x 3-pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
Buttons/Switches N/A
Audio 7.1 (Realtek ALC897)
Graphic iGPU
Wireless N/A
RAID Level 0/1/5/10 (B760)
Multi-GPU N/A
Electricity connections 1x 24-pin ATX, 1x 8-pin EPS12V, 1x 4-pin ATX12V, 1x 6-pin PCIe (IN)
VRM 13 virtual phases (12+1), 7 real phases (6+1), PWM controller: ASP2100 (RT3628AE, max. 9 phases)
MOSFETs CPU 12x 50A SiC654
MOSFETs SoC 1x 50A SiC654
Lighting N/A
BIOS 1x 16MB (128Mb)
Particularities Audio+solid capacitors, Diagnostic LED (LED indicators), 2x M.2 passive coolers, integrated I/O panel, Onboard TPM 2.0 support (Intel PTT)
