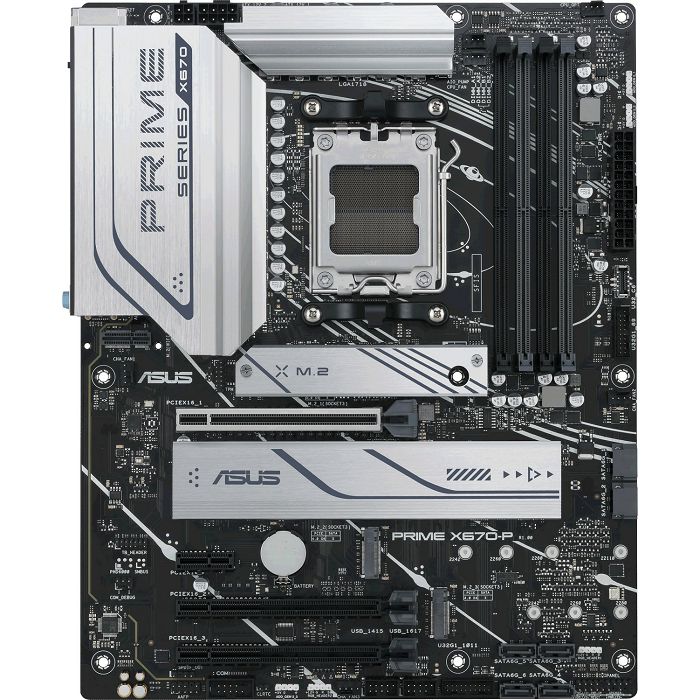

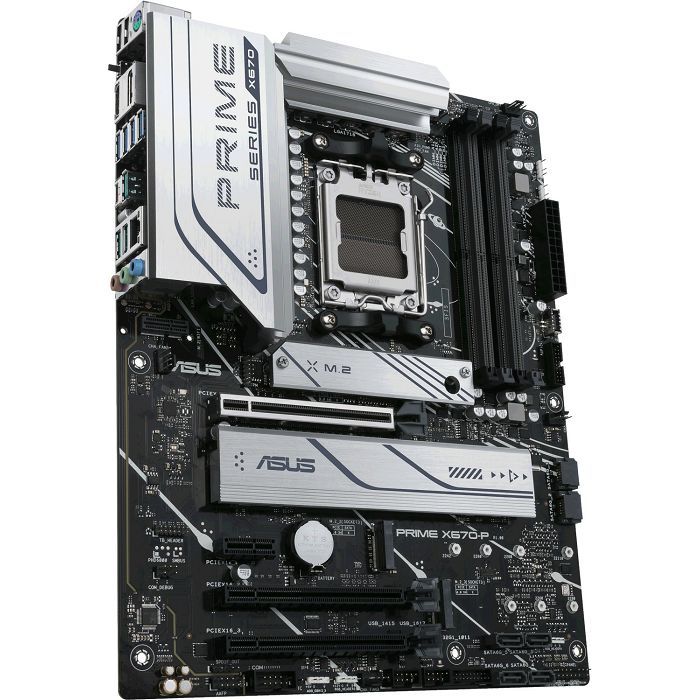

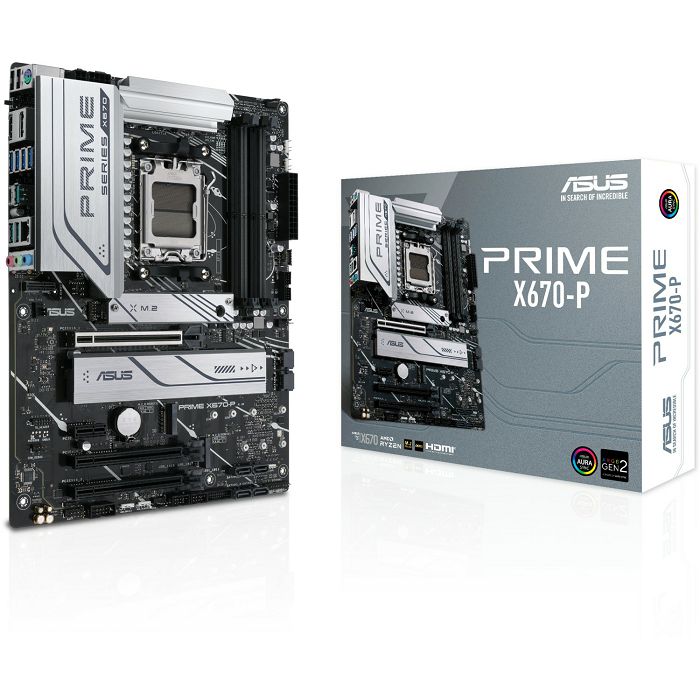

Asus Prime X670-P, AMD X670, AM5, DDR5, 90MB1BU0-M0EAY0

Form factor
ATX
Plinth
AMD AM5
Chipset
AMD X670E
CPU Compatibility
Ryzen 7000
RAM
4x DDR5 DIMM, dual PC5-51200U/DDR5-6400 (OC), max 128GB (UDIMM)
Expansion slots
1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 4.0 x4, 1x M.2/M-Key (PCIe 5.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 3.0 x4/SATA, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242)
External connections
1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 (20Gb/s), 1x USB-C 3.1 (10Gb/s), 3x USB-A 3.1 (10Gb/s), 5x USB-A 3.0 (5Gb/s), 1x 2.5GBase-T (Realtek), 5x jack
Internal connections
1x USB-C 3.1 Key-A header (10Gb/s), 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 3x USB 2.0 header (480Mb/s, 6x USB 2.0), 4x SATA 6Gb/s (X670E), 1x serial, 1x TPM header, 1x chassis intrusion header, 1x Thunderbolt header 13-pin (14-1)
Header Cooling
2x CPU fan 4-pin, 4x fan 4-pin, 1x AIO pump 4-pin, 1x pump 4-pin, 1x thermal sensor
Header Lighting
1x 4-pin RGB (+12V/G/R/B, max. 3A), 3x 3-pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
Buttons/Switches
USB BIOS Flashback (external)
Audio
7.1 (Realtek ALC1220), DTS Audio Processing
Graphic
iGPU
Wireless
N/A
RAID Levels
0/1/10 (X670E)
Electrical connections
1x 24-pin ATX, 2x 8-pin EPS12V
VRM
16 virtual phases (14+2)
MOSFETs CPU
14x 70A
MOSFETs SoC
2x 70A
Lighting
RGB, 1 zone (right side)
BIOS
1x 32MB (256Mb)
Particularities
Audio+solid capacitors, Diagnostic LED (LED indicators), 3x M.2 passive cooler, integrated I/O aperture, Onboard TPM 2.0 support (AMD fTPM), ECC support
