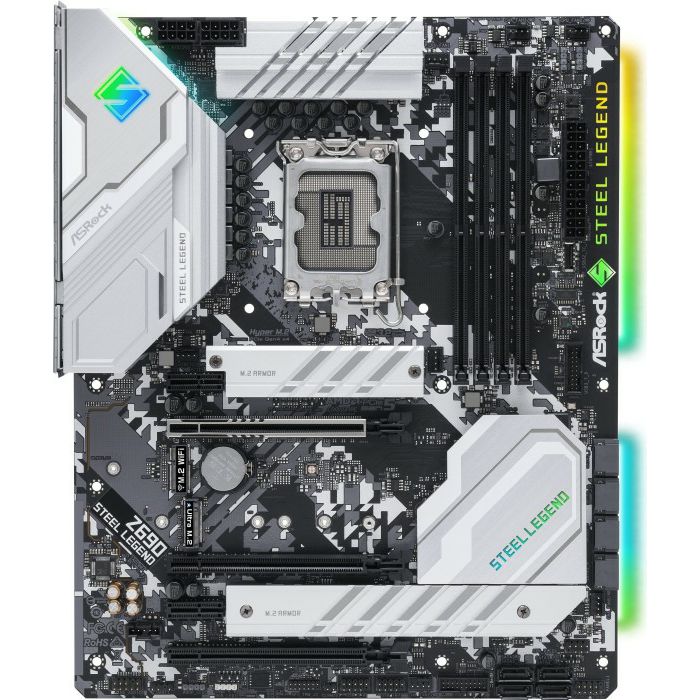

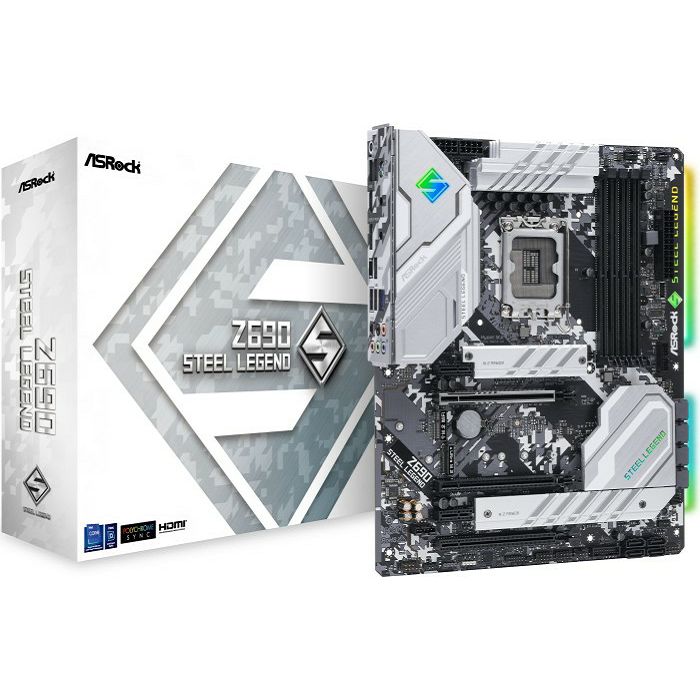

ASRock Z690 Steel Legend DDR4 , s1700, 90-MXBH00-A0UAYZ

Shape factor ATX
Socket Intel 1700
chipset Intel Z690
CPU-Compatibility Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 4x DDR4 DIMM, dual PC4-40000U/DDR4-5000 (OC), max. 128GB (UDIMM)
Extension slots 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x16 (x4), 2x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280/2260/2242/2230), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 22110/2280/2260/2242), 1x M.2/E-Key (PCIe/Intel CNVi, 2230)

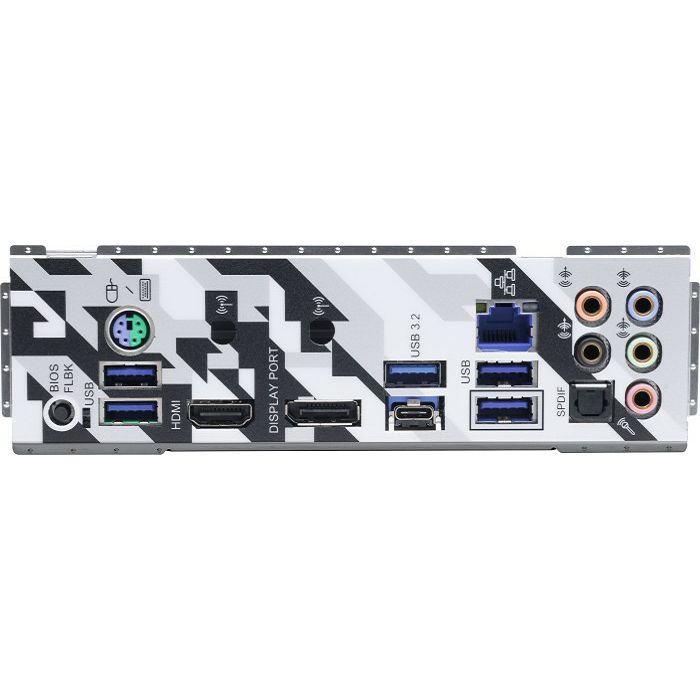

external connectors 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/s, Z690), 1x USB-A 3.1 (10Gb/s, Z690), 4x USB-A 3.0 (5Gb/s, Z690), 1x 2.5GBase-T (Realtek RTL8125BG), 5x jack, 1x toslink, 1x PS/2 Combo
Internal connectors 1x USB-C 3.2 Key-A Header (20Gb/s, Z690), 2x USB 3.0 Header (5Gb/s, 4x USB 3.0, Z690 via Hub ASM1074), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 8x SATA 6Gb/s (Z690), 1x TPM-Header, 1x Thunderbolt-Header 5-Pin, 1x Speaker-Header
Header Cooling 1x CPU fan 4-Pin, 1x CPU fan/pump 4-Pin, 5x fan/pump 4-Pin
Header Lighting 1x 4-Pin RGB (+12V/G/R/B, max. 3A), 3x 3-Pin ARGB (+5V/DATA/GND, max. 3A)
buttons/Switches USB BIOS Flashback (external)
Audio 7.1 (Realtek ALC897)
Graphics iGPU
Wireless not available
RAID level 0/1/5/10 (Z690)
Multi-GPU AMD 2-Way-CrossFireX (x16/x4)
Power connections 1x 24-Pin ATX, 2x 8-Pin EPS12V
VRM 13 virtual phases (12+1), 7 real phases (6+1), PWM-Controller: RT3628AE (max. 9 phases)
MOSFETs CPU 12x 50A SiC654
MOSFETs SoC 1x 50A SiC654
Lighting RGB, 4 zones (chipset cooler, I/O cover, page right, emphasis right)
BIOS 1x 32MB (256Mb)
Special features audio+solid capacitors, Diagnostic LED (LED indicators), I/O-shield integrated, 2x M.2-passive cooler, incl. Graphics Cards-Mounting, onboard TPM 2.0 support (Intel PTT)
