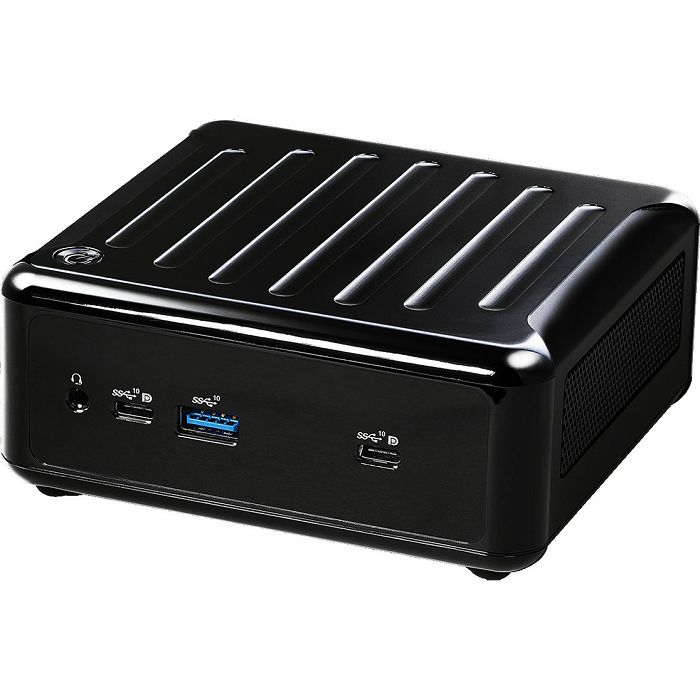

Asrock Mini PC Industrial NUC BOX- i3-1115G4, 90PXG7W0-00EAY100

Type Mini PC
chipset System-on-Chip (SoC)
Socket not available
CPU Intel Core i3-1115G4, 2C/4T, 1.70-4.10GHz, 6MB+2.5MB cache, 12-28W TDP, Codename "Tiger Lake-UP3" (Willow Cove, 10nm SuperFin)
RAM 2x DDR4 SO-DIMM, dual PC4-25600S/DDR4-3200, max. 64GB (UDIMM)
HDD 1x SATA 6Gb/s, 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280/2260/2242)
drive bays external not available
Drive bays internal 1x 2.5"
Graphics Intel UHD Graphics (iGPU), 48EU/384SP, 1.25GHz, Codename "Tiger Lake GT1" (Gen 12.1)
GPU-Connectors not available
connectors rear 1x HDMI 2.0a, 1x DisplayPort 1.4, 2x USB-A 3.1, 1x 2.5GBase-T (Intel I225-LM), 1x Gb LAN (Intel I219-V), 1x hollow socket (mains connection)
connectors front/page 2x USB-C 3.1 with DisplayPort 1.4, 1x USB-A 3.1, 1x jack
Extension slots 1x M.2/E-Key (PCIe, 2230, occupied with WiFi+BT module)
Wireless Wi-Fi 6 (WLAN 802.11a/b/g/n/ac/ax, 2x2, Intel AX200), Bluetooth 5.2
Audio 2.0 (Realtek ALC233)
card readers not available
Power supply external, 1x barrel connector (90W/19V)
VESA-mounting 100x100 (included)
Dimensions (WxHxD) 110x47.9x117.5mm
Weight 1.00kg
Capacity 0.6l
CPU Coolers included
Special features 4x display support, security lock (Kensington), TPM 2.0
